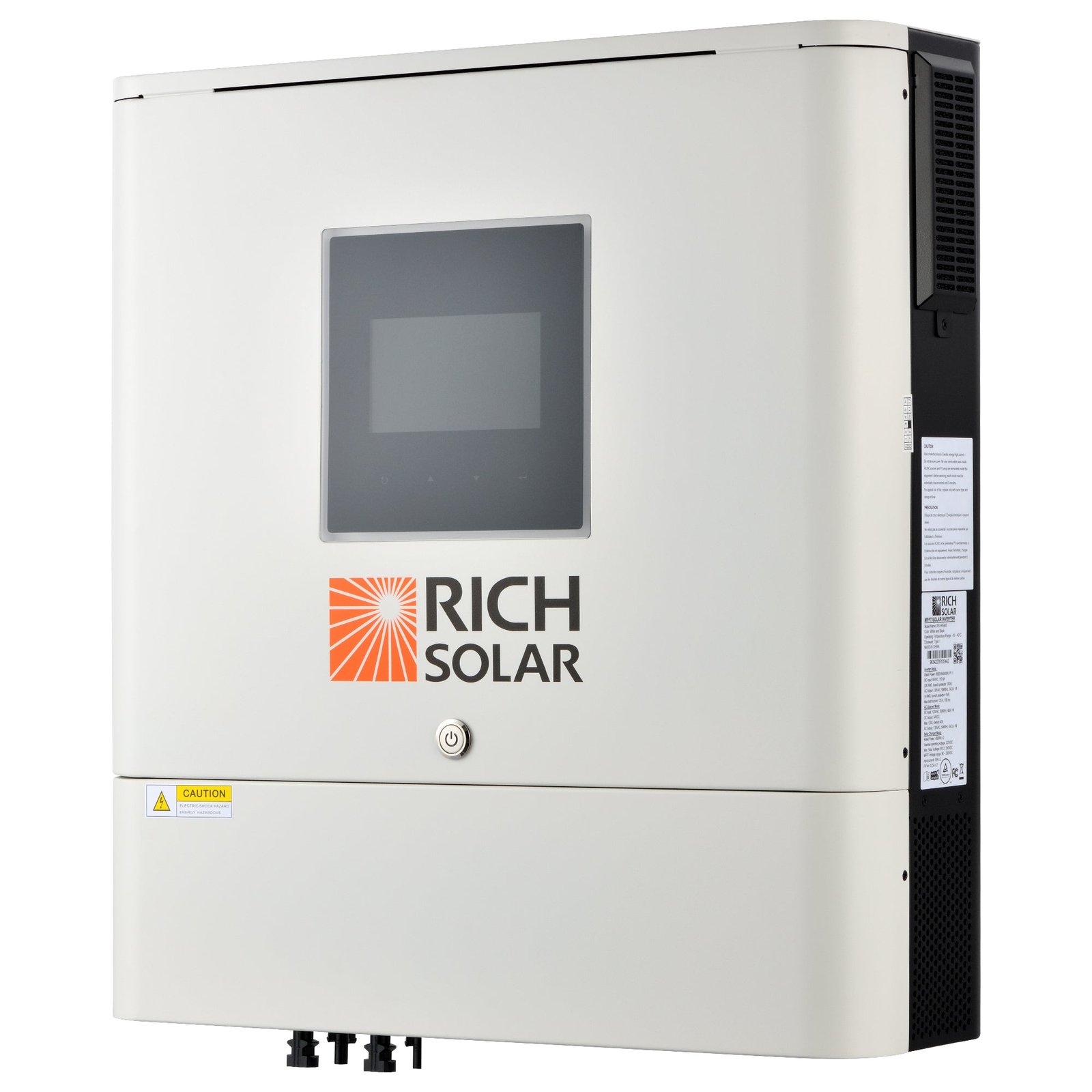

Rich Solar NOVA 6500S | 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter
The Rich Solar NOVA 6500S is an advanced 6.5kW off-grid hybrid inverter engineered for high-performance solar power systems. Whether you’re powering a full off-grid home, cabin, or commercial application, this inverter delivers clean, stable power with pure sine wave output and an impressive 13,000W surge capacity.
It features built-in Wi-Fi for real-time monitoring, configurable settings via an intuitive LCD panel, and compatibility with multiple battery chemistries. The battery-optional design allows solar-only operation for lighter loads, while the unit’s parallel capability supports up to 6 inverters for scalable systems up to 39kW.
With dust-proof housing and a wide range of communication ports (RS485, CAN-BUS, RS232), the NOVA 6500S is a powerful, adaptable energy solution for demanding off-grid scenarios.
Key Features
6500W Continuous Output with 13kW Surge: Powers large appliances, pumps, or tools with ease, ideal for heavy off-grid loads.
Built-in Wi-Fi + RGB Indicators: Monitor system performance and status in real-time with the Rich Solar app and color-coded LED bar.
Battery-Optional Design: Operates with or without batteries, supporting various chemistries including lithium, AGM, and more.
MPPT Solar Charging: Integrated MPPT controller optimizes solar harvest with a wide input range (90–230 VDC).
Multi-Unit Expandability: Parallel up to 6 inverters for larger off-grid systems, including split- or 3-phase power setups.
Specifications
Model: RS-H6548S
Inverter Power: 6500W / 6500VA
Surge Power: 13000VA
Waveform: Pure Sine Wave
Efficiency (Peak): 91%
Voltage Range (Input): 80–140VAC
AC Output Voltage: 120VAC ± 5%
Transfer Time: 15–20 ms
Battery Voltage: 48VDC
Max PV Power: 8000W (4000W x 2)
MPPT Range: 90–230VDC
Max Charge Current: 120A (Solar or AC)
Dimensions: 5.8 x 17.0 x 21.8 in
Weight: 44.09 lb
Temperature Range: 14°F to 122°F
Certifications: UL
Communication Ports: USB, RS232, RS485, Wi-Fi, Dry-contact
What’s in the Box
1× Rich Solar NOVA 6500S Inverter
1× User Manual
