Overview
Summary

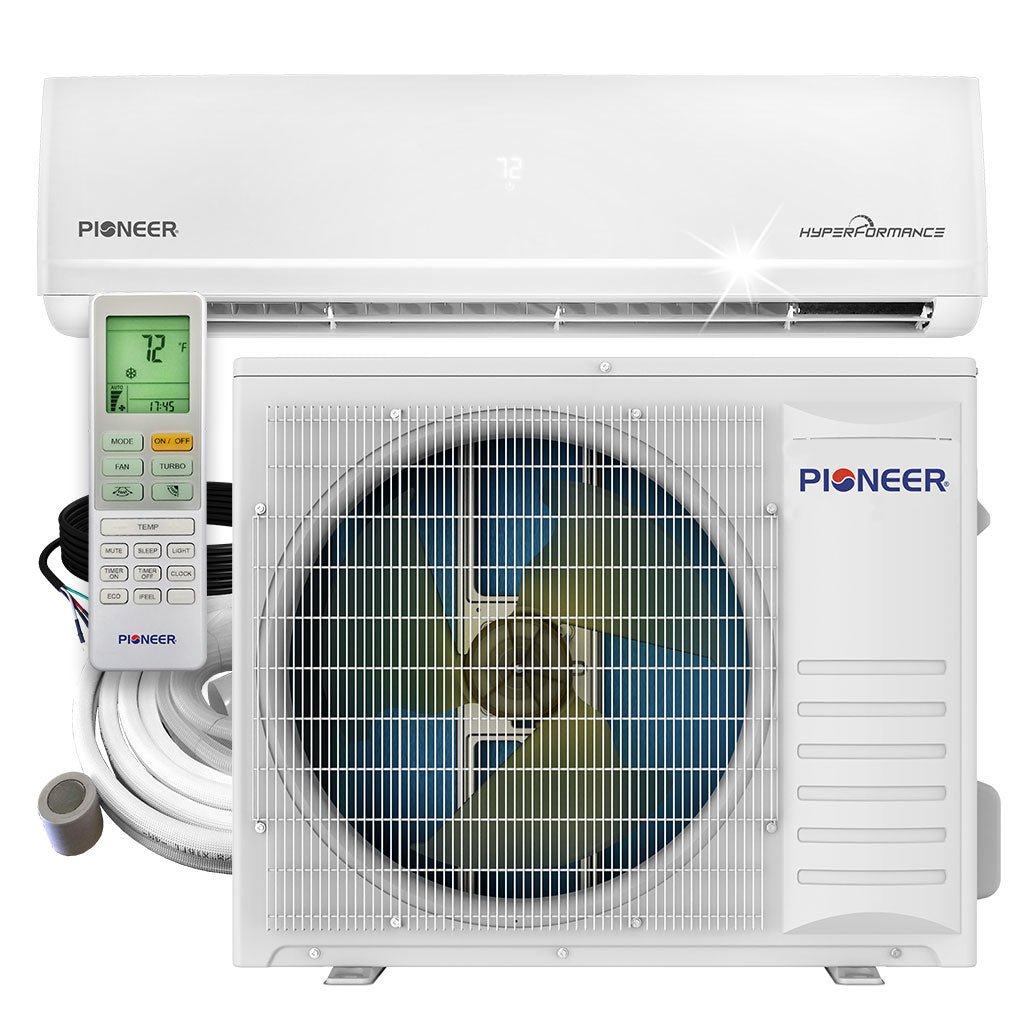

- Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
- Cooling capacity: 24,000 BTU/H (2 Ton) with 21 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 24,000 BTU/H (2 Ton) with 10.0 HSPF2 / 3.05 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Hyper Heat Unit (Continues heating in -22°F weather)
- Wireless Internet Access Included (Via Free Smartphone App)
[[SERIES]]
What’s Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module
- Copper Lines*
- Signal Cable Between Units*
- Drain for Indoor/Outdoor*
- Wall Passage Sleeve*
- Putty for Wall Hole*
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
*If ordered with an installation kit
Our Guarantee
- 5 years Warranty for Parts (Extendable to up to 7 years)
- 5 years for Compressor (Extendable to up to 10 years)
Features
[[FEATURES]]
Technical Information
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity (BTU/hr): 24,000 (5,500 ~ 25,000)
- Rated Power Input (Cooling): 1,920W
- Rated Current (Cooling): 8.5A
- Cooling SEER2: 21.0 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity (BTU/hr): 26,000 (6,000 ~ 27,000)
- Rated Power Input (Heating): 2,500W
- Rated Current (Heating): 11.2A
- Heating HSPF2 (Region IV/V): 11.5 / 10.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.05 / 1.75 W/W
- Refrigerant Type/Weight: R410A/2.1kg
- Recommended Application Area: 500~1,000 Sq.Ft
Indoor Unit Data
- Part Number: WF024GHFI25HLH
- Air Flow (Hi/Med/Lo): 706 / 647 / 559 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 53/50/47/45/42 dB(A)
- Net Dimensions (WDH): 50-3/8 x 10-1/4 x 14-1/4 Inches
- Carton Dimensions (WDH): 54-1/2 x 12-3/4 x 17-1/8 Inches
- Net / Gross Weight: 40.1 / 50.3 Lbs
Outdoor Unit Data
- Part Number: YN024GHFI25RPH
- Sound Level: 61 dB(A)
- Net Dimensions (WDH): 35-3/8 x 13-1/2 x 29-1/2 Inches
- Carton Dimensions (WDH): 41-3/4 x 17-3/4 x 32-1/4 Inches
- Net / Gross Weight: 132 / 140.8 lbs
- Electrical Circuit Size: 25A (double-pole)
