Overview
Summary
- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 9,000 BTU/H with 22.5 SEER2 / 13.0 EER2 efficiency
- Heating capacity: 11,000 BTU/H with 11.5 HSPF2 / 3.44 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- One-Way Ceiling Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
[[SERIES]]

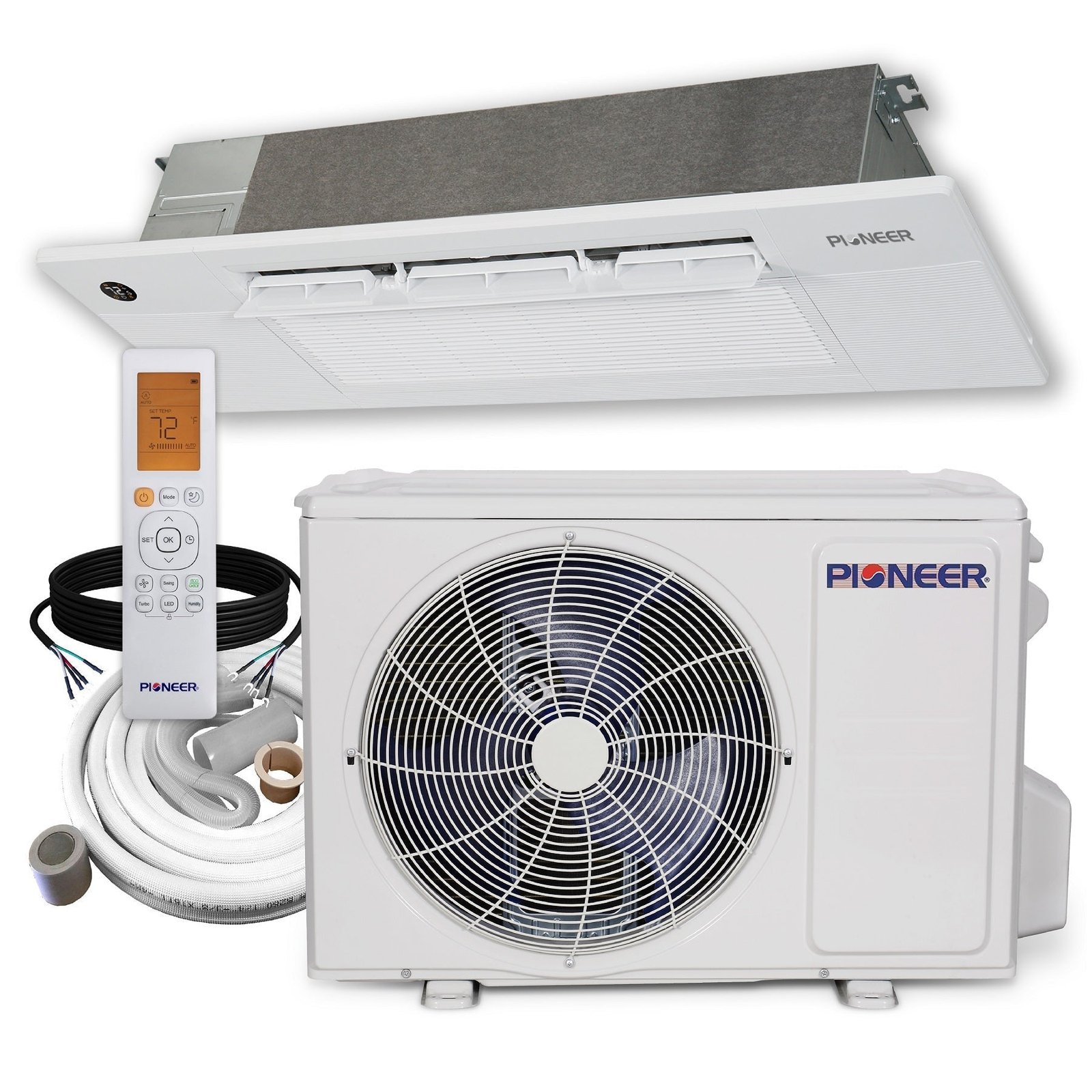

What’s Included
- Indoor Unit
- Outdoor Unit
- Decorative Panel
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 4,400~11,200 BTU/h
- Cooling SEER2: 22.5 BTU/W.h
- Cooling EER2: 13.0 BTU/W.h
- Heating Rated Capacity: 11,000 BTU/h
- Heating Capacity Range: 3,800~12,400 BTU/h
- Heating HSPF2: 11.5 BTU/W.h
- Heating C.O.P.2: 3.44 W/W
- Refrigerant Type: R410a
- Suitable Area: 100~350 Sq.F
Indoor Unit Data
- Model: CK009GMFILCFHD
- Air Flow (Turbo/Hi/Med/Lo): 580 / 500 / 440 / 400 CFM
- Sound Level (Hi/Med/Lo): 38 / 36 / 33 dB(A)
- Net Dimensions (WDH): 50-1/4 x 13-1/4 x 9 Inches
- Carton Dimensions (WDH): 57-5/8 x 22-1/2 x 22-5/8 Inches
- Net / Carton Weight: 44 / 81 Lbs
Panel Data
- Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
- Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
- Panel Net / Gross Weight: 24 / 29 Lbs
Outdoor Unit Data
- Model: YN009GMFI22RPE
- Sound Level: 54.5 dB(A)
- Net Dimensions (WDH): 30.3 x 11.8 x 21.8 Inches
- Carton Dimensions (WDH): 35.3 x 13.6 x 14.6 Inches
- Net / Gross Weight: 64 / 69 Lbs
- Breaker Needed: 15A (double-pole)
Manuals & Downloads
- Series Technical Brochure
- Series User Manual
- Series Installation Manual
- Series Service Manual
- Series Disassembly Guide
- CYK009GMFILCAD Submittal Sheet
- AHRI Certificate
- Energy Guide
