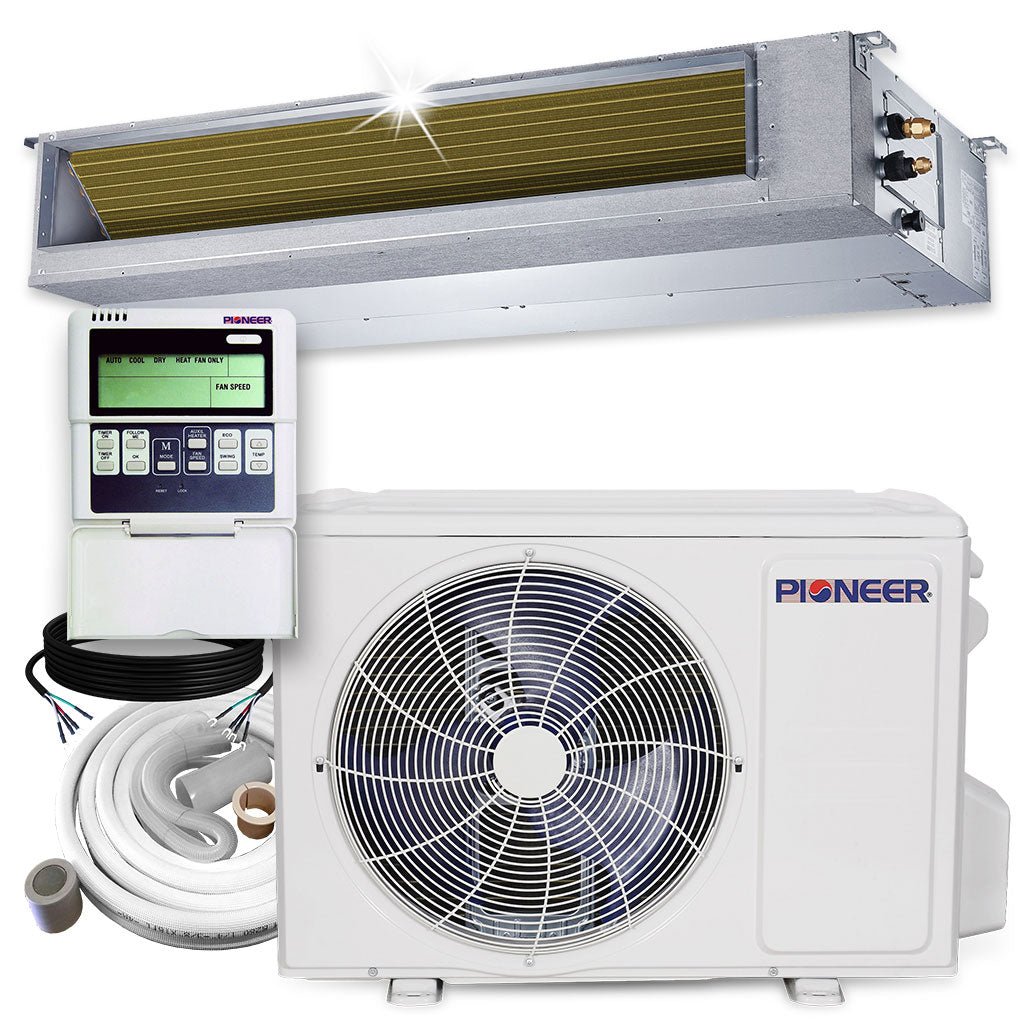

Pioneer® 9,000 BTU 19.2 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

$453.20$559.20

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Pioneer® 9,000 BTU 19.2 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V
Pioneer® 9,000 BTU 19.2 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V
$453.20$559.20

[wpforms id=”1190″ title=”true” description=”Request a call back”]

Overview

Summary

  • Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
  • Cooling capacity: 9,000 BTU/H with 19.2 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 10,000 BTU/H with 10.2 HSPF2/ 3.62 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Ceiling Concealed Ducted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $57.00
    • Heating: $184.00

[[SERIES]]

What’s Included

  • Indoor Unit
  • Outdoor Unit
  • Wire Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 2,220~11,600 BTU/h
  • Cooling SEER2: 19.2 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 10,000 BTU/h
  • Heating Capacity Range: 2,240~13,350 BTU/h
  • Heating HSPF2 (Region IV/V): 10.2 / 8 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.62 / 2.09 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 100~350 Sq.F

Indoor Unit Data

  • Part Number: RB009GMFILDFHD
  • Air Flow (Hi/Med/Lo): 353 / 282 / 176 CFM
  • External Static Pressure: 0.0~0.16 Inch WC
  • Sound Level (Hi/Med/Lo): 33.5 / 28.5 / 27.0 dB(A)
  • Net Dimensions (WDH): 27″-1/2 x 20″ x 7″-7/8
  • Carton Dimensions (WDH): 33″-7/8 x 21″-1/4 x 11″-1/4
  • Net / Gross Weight: 39.0 / 48.3 Lbs

Outdoor Unit Data

  • Part Number: YN009GMFI22RPE
  • Sound Level: 54.5 dB(A)
  • Breaker Needed: 15A (double-pole)
  • Net Dimensions (WDH): 30″-1/8 x 11″-7/8 x 21″-7/8
  • Carton Dimensions (WDH): 34″-7/8 x 13″-1/4 x 24″
  • Net / Gross Weight: 63.7 / 69.0 Lbs
