Overview
Summary

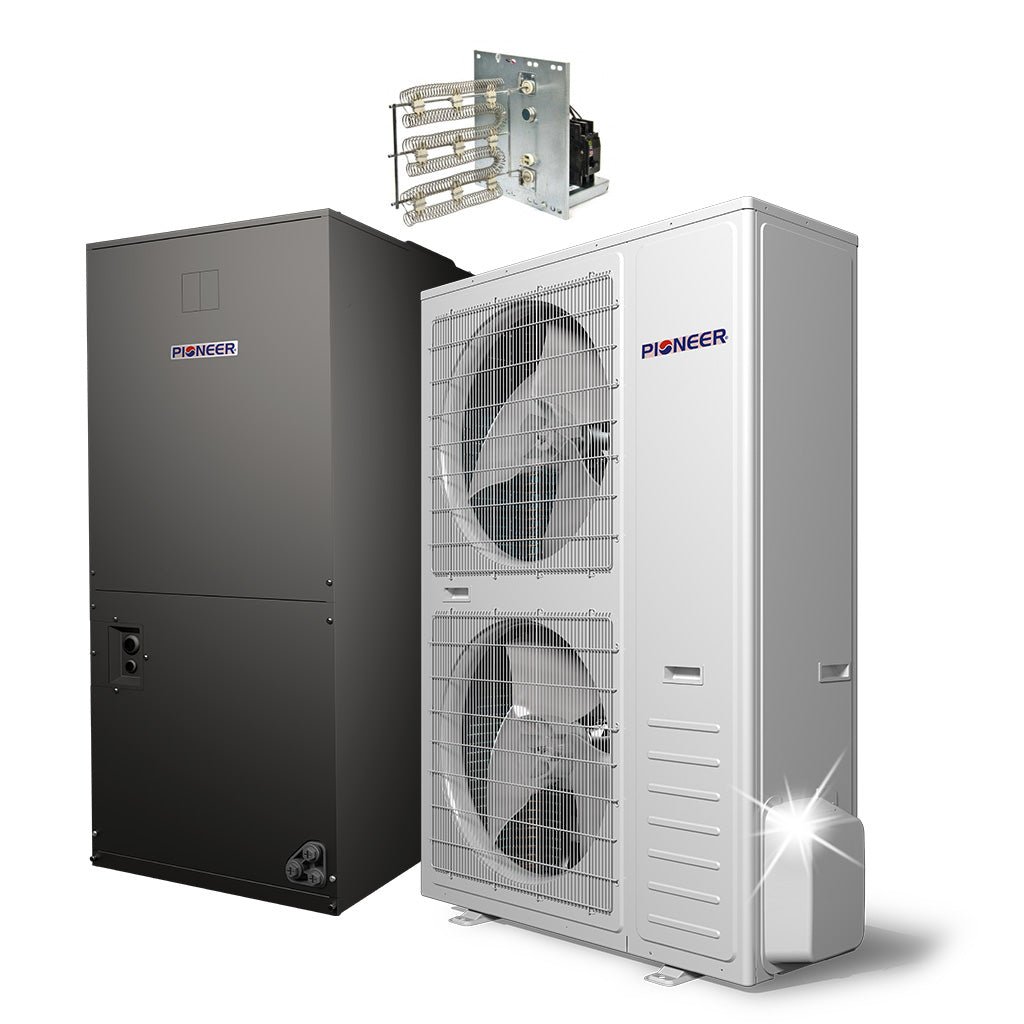

- Ultra High Efficiency Inverter+ central ducted split heat pump system
- Cooling capacity: 56,000 BTU/H with 17 SEER2 / 8.25 EER2 efficiency
- Heating capacity: 56,000 BTU/H with 8.5 HSPF2 / 3.1 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Central Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Communicating system with dedicated signal transmission
- Includes Electric Strip Heater
- AHRI Estimated Annual Operating Costs:
- Cooling: $422.00
- Heating: $1184.00
[[SERIES]]
What’s Included
- Indoor Unit (Downflow-capable)
- Outdoor Unit (Side-Discharge)
- Electric Strip Heater (10 kW)
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 years compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Max Cooling Rated Capacity (Min~Max): 56,000 (18,300~59,400) BTU/h
- Cooling SEER2: 17 BTU/W.h
- Cooling EER2: 8.25 BTU/W.h
- Max Heating Rated Capacity (Min~Max): 56,000 (17,600 ~ 57,500) BTU/h
- Heating HSPF2 (Region IV): 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.1 / 1.86 W/W
- Refrigerant Type: R410a
- Suitable Area: 2,000 Sq.F
Indoor Unit Data
- Model: DR060GHFD18HT2
- Air Flow: 1706 CFM
- Sound Level: 65 dB(A)
- Fan Motor Type: Multi-Speed ECM
- Net Dimensions (WDH): 22 × 24 × 53-7/8 Inches
- Carton Dimensions (WDH): 25-1/4 × 28 × 55-1/2 Inches
- Net / Gross Weight: 187 / 214 Lbs
Outdoor Unit Data
- Model: YH4860GHFD18R2
- Sound Level: 60 dB(A)
- Metering Device: EXV
- Net Dimensions (WDH): 37-3/8 × 13-3/8 × 54-1/2 Inches
- Carton Dimensions (WDH): 43-3/4 ×18-1/8 × 60-1/4 Inches
- Net / Gross Weight: 251 / 278 Lbs
