Overview
Summary
- Ultra High Efficiency Inverter+ central ducted split heat pump system
- Cooling capacity: 48,000 BTU/H with 17.5 SEER2 / 10.1 EER2 efficiency
- Heating capacity: 47,000 BTU/H with 8.5 HSPF2 / 3.3 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Central Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Energy-Star Cold-Climate Certified
- Communicating system with dedicated signal transmission
- Includes 10 kW Electric Strip Heater
- AHRI Estimated Annual Operating Costs:
- Cooling: $352.00
- Heating: $1015.00
[[SERIES]]

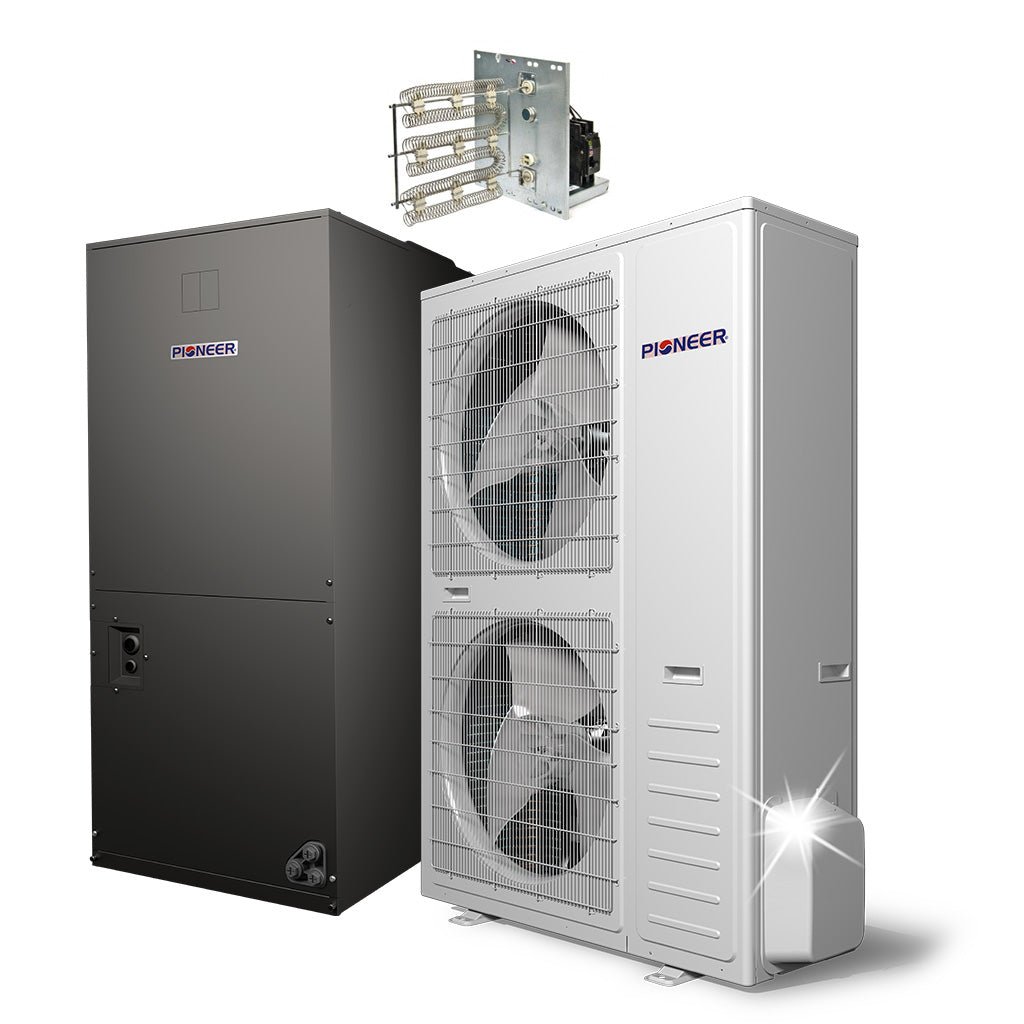

What’s Included
- Indoor Unit (Downflow-capable)
- Outdoor Unit (Side-Discharge)
- Electric Strip Heater (10 kW)
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 years compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Max Cooling Rated Capacity (Min~Max): 48,000 (18,300~52,000) BTU/h
- Cooling SEER2: 17.5 BTU/W.h
- Cooling EER2: 10.1 BTU/W.h
- Max Heating Rated Capacity (Min~Max): 47,000 (17,600 ~ 52,000) BTU/h
- Heating HSPF2 (Region IV): 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.3 / 1.9 W/W
- Refrigerant Type: R410a
- Suitable Area: 1600 Sq.F
- Operating Temperatures: (-13°F – 75°F/Heating)/(5° – 122°F/Cooling)
Indoor Unit Data
- Model: DR048GHFD18HT2
- Air Flow: 1588 CFM
- Sound Level: 64 dB(A)
- Fan Motor Type: Multi-Speed ECM
- Net Dimensions (WDH): 22 × 24 x 53-7/8 Inches
- Carton Dimensions (WDH): 25-1/4 × 28 x 55-1/2 Inches
- Net / Gross Weight: 187 / 214 Lbs
Outdoor Unit Data
- Model: YH4248GHFD18R2
- Sound Level: 59 dB(A)
- Metering Device: EXV
- Net Dimensions (WDH): 37-3/8×13-3/8×54-5/8 Inches
- Carton Dimensions (WDH): 43-3/4×18-1/8×60-1/4 Inches
- Net / Gross Weight: 227 / 254 Lbs
