Overview
Summary
- Ultra High Efficiency Inverter+ central ducted split heat pump system
- Cooling capacity: 33,000 BTU/H with 18.0 SEER2 / 10.1 EER2 efficiency
- Heating capacity: 38,000 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Central Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Energy-Star Cold-Climate Certified
- Communicating system with dedicated signal transmission
- Includes 10 kW Electric Strip Heater w/ breaker
- AHRI Estimated Annual Operating Costs:
- Cooling: $264.00
- Heating: $730.00
[[SERIES]]

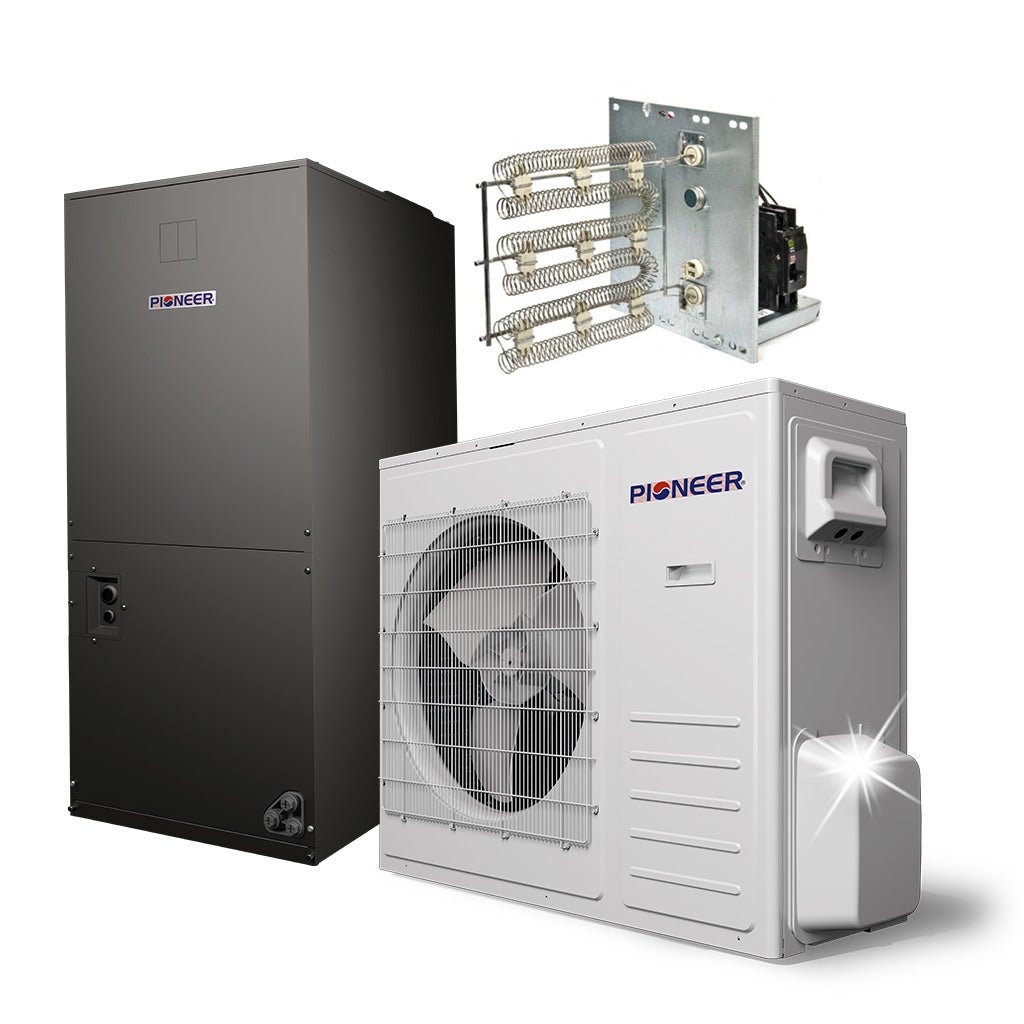

What’s Included
- Indoor Unit (Downflow-capable)
- Outdoor Unit (Side-Discharge)
- Electric Strip Heater (10 kW w/ breaker)
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 years compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Max Cooling Rated Capacity (Min~Max): 33,000 (11,800~36,800) BTU/h
- Cooling SEER2: 18.0 BTU/W.h
- Cooling EER2: 10.1 BTU/W.h
- Max Heating Rated Capacity (Min~Max): 38,000 (8,900 ~ 38,200) BTU/h
- Heating HSPF2 (Region IV): 9.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.3 / 2.1 W/W
- Refrigerant Type: R410a
- Suitable Area: 1,200 Sq.F
- Operating Temperatures: (-13°F – 75°F/Heating)/(5° – 122°F/Cooling)
Indoor Unit Data
- Model: DR036GHFD18HT2
- Air Flow: 1120 CFM
- Sound Level: 57 dB(A)
- Fan Motor Type: Multi-Speed ECM
- Net Dimensions (WDH): 19-5/8 × 21-5/8 × 46-1/8 Inches
- Carton Dimensions (WDH): 22-1/2 × 25-3/8 × 49-5/8 Inches
- Net / Gross Weight: 140 / 163 Lbs
Outdoor Unit Data
- Model: YH3036GHFD18R2
- Sound Level: 57 dB(A)
- Metering Device: EXV
- Net Dimensions (WDH): 37-3/8 x 13-3/8 x 33 Inches
- Carton Dimensions (WDH): 43-3/4 x 18-1/8 x 36-1/4 Inches
- Net / Gross Weight: 148 / 159 Lbs
