Overview
Summary
- High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
- Cooling capacity: 36,000 BTU/H with 17.5 SEER2 / 8.5 EER2 efficiency
- Heating capacity: 36,000 BTU/H with 8.7 HSPF2 / 2.47 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $272.00
- Heating: $645.00
[[SERIES]]

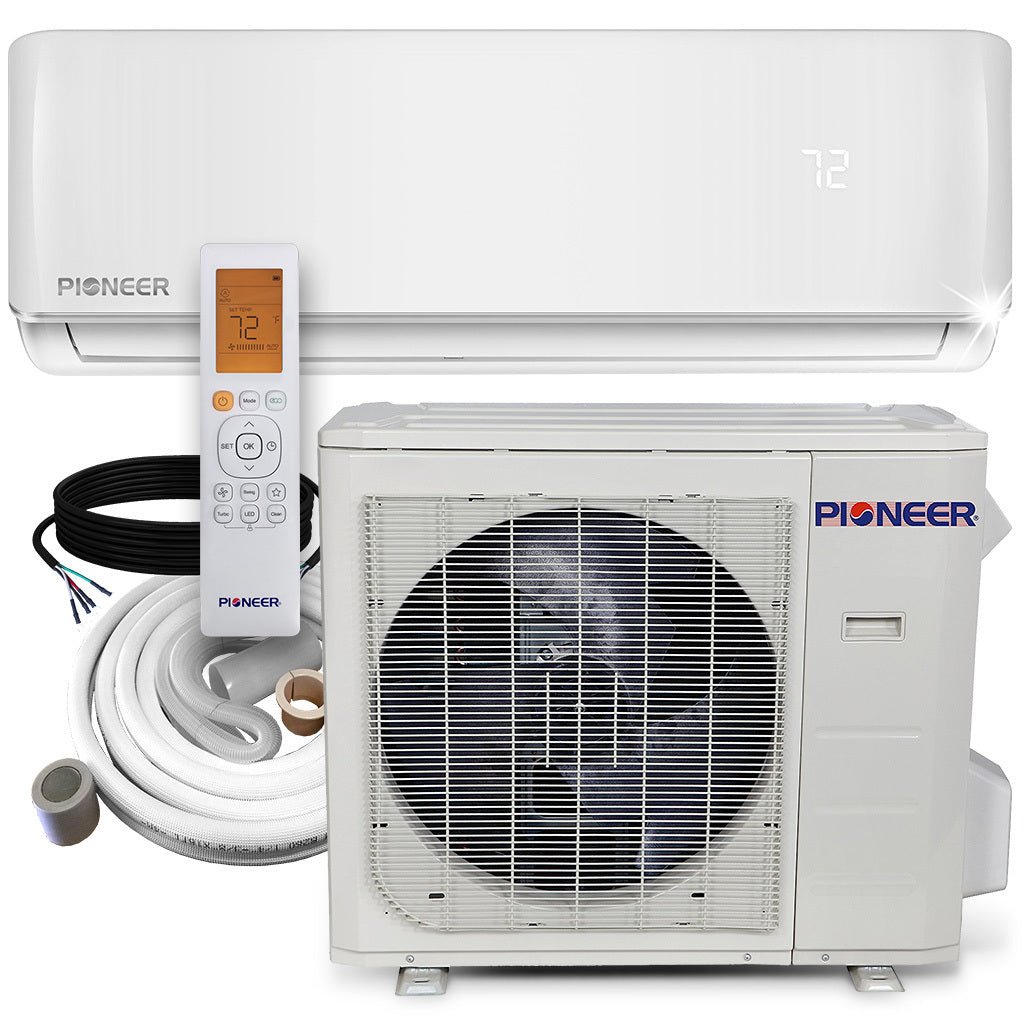

What’s Included
- Ductless Wall-Type Indoor Air Handler Unit
- Outdoor Heat Pump Condensing Unit
- Wireless Handheld Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 36,000 BTU/h (3-Ton)
- Cooling Capacity Range: 8,900~36,300 BTU/h
- Cooling SEER2: 17.5 BTU/W.h
- Cooling EER2: 8.5 BTU/W.h
- Heating Rated Capacity: 36,000 BTU/h (3-Ton)
- Heating Capacity Range: 11,400~37,800 BTU/h
- Heating HSPF2 (Region IV/V): 8.7 / 6.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.47 / 1.97 W/W
- Refrigerant Type: R410A/120
- Suitable Area: 900~1,250 Sq.F
Indoor Unit Data
- Model Number: WS036GMFI20HLD
- Air Flow (Turbo/Hi/Med/Lo): 882 / 732 / 518 / 400 CFM
- Sound Level (Hi/Med/Lo): 56.5 / 54.5 / 40 dB(A)
- Net Dimensions (WDH): 49″-1/2 x 11″-1/8 x 14″-1/4 Inches
- Carton Dimensions (WDH): 52″-3/4 x 17″-3/4 x 15″-1/4 Inches
- Net / Gross Weight: 40 / 52.5 lbs
Outdoor Unit Data
- Model Number: YN036GMFI20RPD
- Sound Level: 63.5 dB(A)
- Breaker Needed: 30A (double-pole)
- Net Dimensions (WDH): 37″-1/4 x 16″-1/4 x 31″-7/8 Inches
- Carton Dimensions (WDH): 42″-7/8 x 19″-5/8 x 34″ Inches
- Net / Gross Weight: 150 / 159 lbs
