Overview
Summary
- High Efficiency Inverter+ ceiling concealed duct split heat pump system
- Cooling capacity: 36,000 BTU/H with 15.8 SEER2 / 8.8 EER2 efficiency
- Heating capacity: 40,000 BTU/H with 8.8 HSPF2 / 3.3 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Ceiling Concealed Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $285.00
- Heating: $735.00
[[SERIES]]

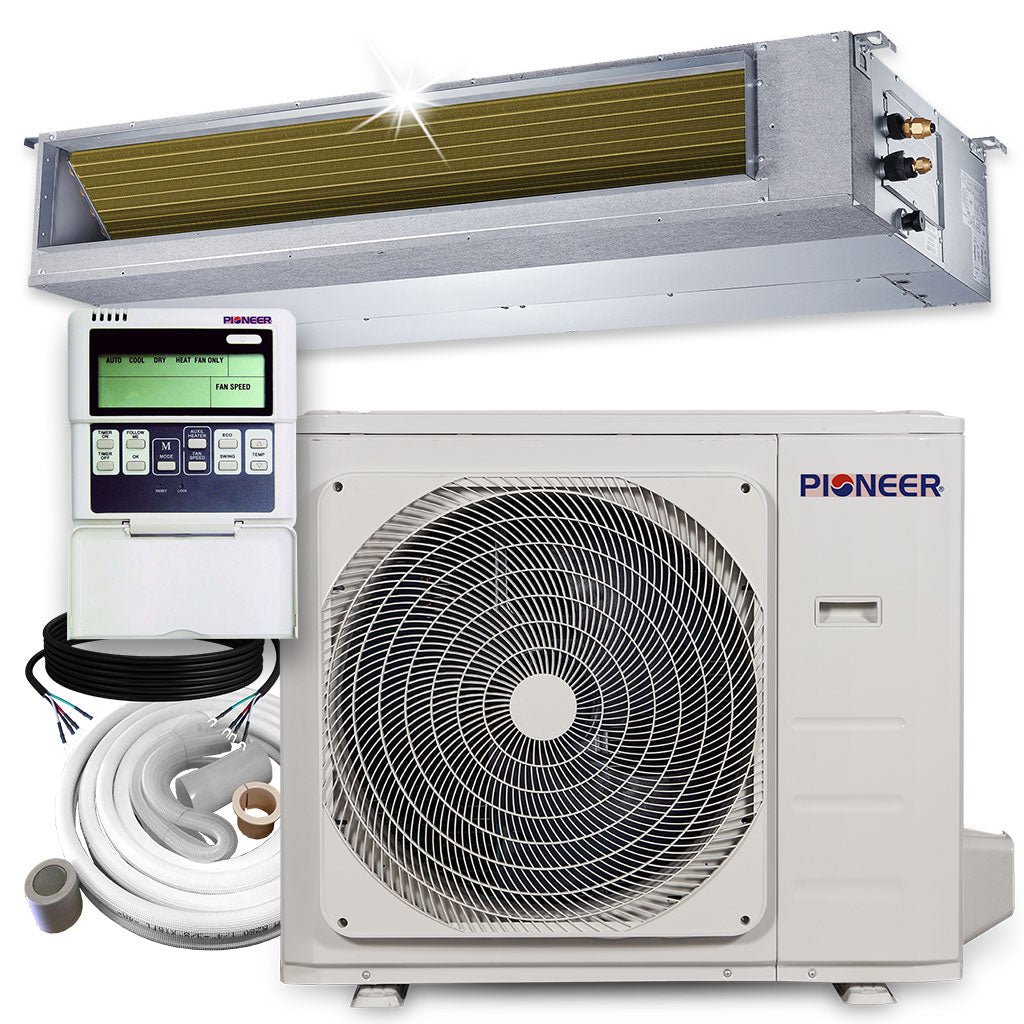

What’s Included
- Indoor Unit
- Outdoor Unit
- Wire Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 36,000 BTU/h
- Cooling Capacity Range: 20,379~36,000 BTU/h
- Cooling SEER2: 15.8 BTU/W.h
- Cooling EER2: 8.8 BTU/W.h
- Heating Rated Capacity: 40,000 BTU/h
- Heating Capacity Range: 12,765~40,000 BTU/h
- Heating HSPF2 (Region IV/V): 8.8 / 7 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.30 / 1.91 W/W
- Refrigerant Type: R410a
- Suitable Area: 900~1,350 Sq.F
Indoor Unit Data
- Part Number: RB036GMFILDFHD
- Air Flow (Hi/Med/Lo): 1,082 / 912 / 703 CFM
- External Static Pressure: 0 ~ 0.64 Inch WC
- Sound Level (Hi/Med/Lo): 48.0 / 43.5 / 40.5 dB(A)
- Net Dimensions (WDH): 53″-1/2 x 30″-1/2 x 9″-3/4
- Carton Dimensions (WDH): 61″-3/4 x 31″-5/8 x 13″
- Net / Gross Weight: 110.9 / 128.1 Lbs
Outdoor Unit Data
- Part Number: YN036GMFI18RUE
- Sound Level: 63.5 dB(A)
- Breaker Needed: 40A (double-pole)
- Net Dimensions (WDH): 37″-1/4 x 16″-1/8 x 31″-7/8
- Carton Dimensions (WDH): 42″-7/8 x19″-5/8 x 34″-7/8
- Net / Gross Weight: 155.4 / 166.2 Lbs
