Overview
Summary
- High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
- Cooling capacity: 30,000 BTU/H with 18.6 SEER2 / 10.5 EER2 efficiency
- Heating capacity: 30,000 BTU/H with 8.7 HSPF2 / 2.71 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $213.00
- Heating: $668.00
[[SERIES]]

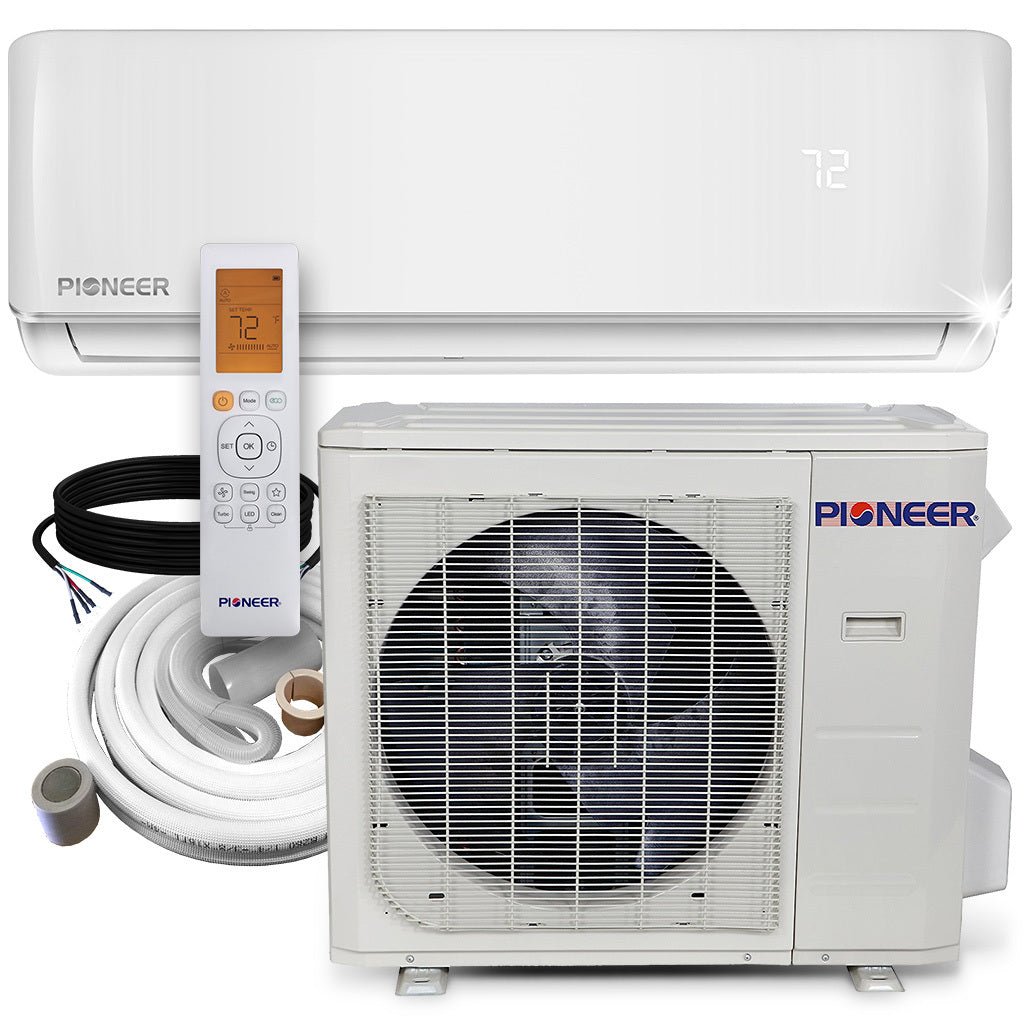

What’s Included
- Ductless Wall-Type Indoor Air Handler Unit
- Outdoor Heat Pump Condensing Unit
- Wireless Handheld Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 30,000 BTU/h
- Cooling Capacity Range: 7,200~31,600 BTU/h
- Cooling SEER2: 18.6 BTU/W.h
- Cooling EER2: 10.5 BTU/W.h
- Heating Rated Capacity: 30,000 BTU/h
- Heating Capacity Range: 10,600~32,500 BTU/h
- Heating HSPF2 (Region IV/V): 8.7 / 6.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.71 / 1.84 W/W
- Refrigerant Type: R410A/97
- Suitable Area: 800~1,100 Sq.F
Indoor Unit Data
- Model Number: WS030GMFI20HLD
- Air Flow (Hi/Med/Lo): 974 / 618 / 471 CFM
- Sound Level (Hi/Lo): 51.5 / 44 dB(A)
- Net Dimensions (WDH): 49.5 x 11.2 x 14.3 Inches
- Carton Dimensions (WDH): 52.7 x 17.7 x 15.0 Inches
- Net / Gross Weight: 37.5 / 50.5 lbs
Outdoor Unit Data
- Model Number: YN030GMFI20RPD
- Sound Level: 60.0 dB(A)
- Breaker Needed: 30A (double-pole)
- Net Dimensions (WDH): 37.3 x 16.5 x 31.8 Inches
- Carton Dimensions (WDH): 42.8 x 19.6 x 34.0 Inches
- Net / Gross Weight: 141.7 / 151.9 lbs
