Overview
Summary

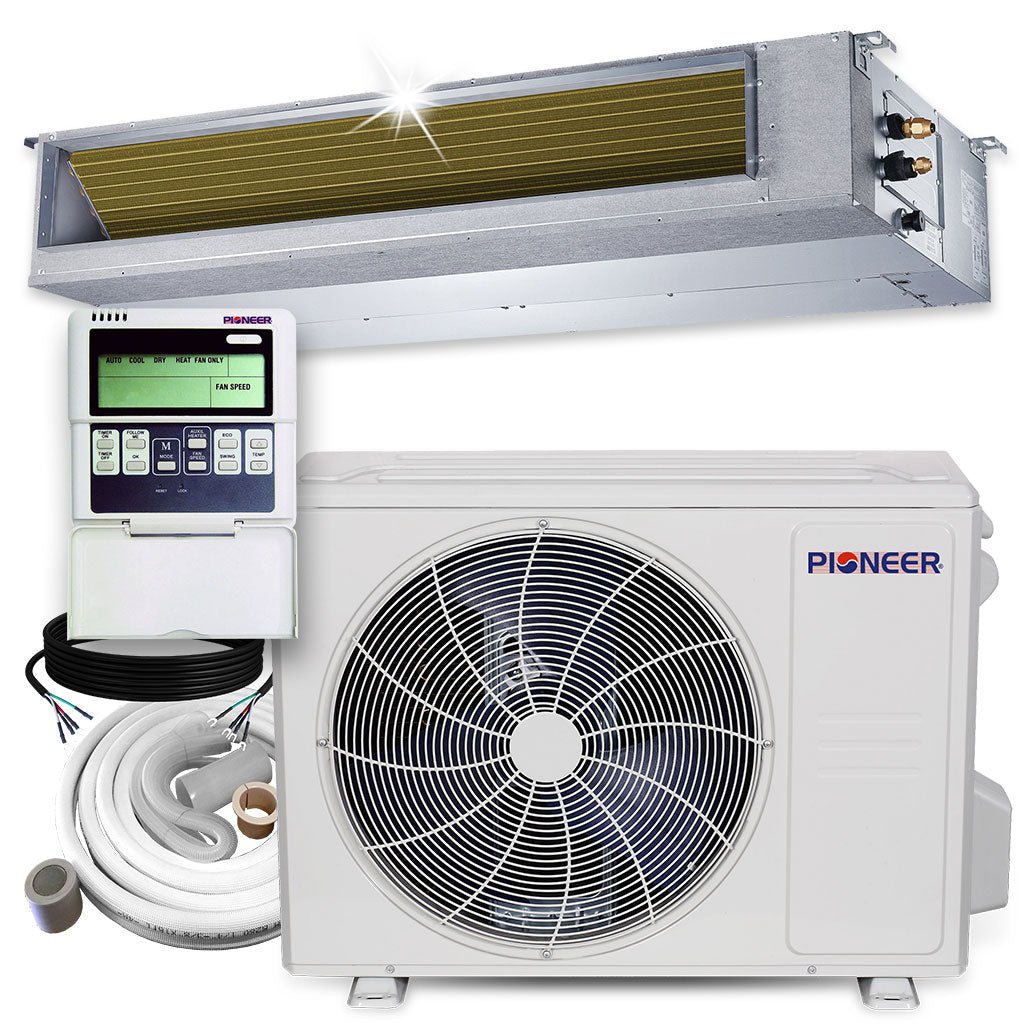

- Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
- Cooling capacity: 23,000 BTU/H with 19 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 25,000 BTU/H with 11.2 HSPF2 / 3.61 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Ceiling Concealed Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $147.00
- Heating: $464.00
[[SERIES]]
What’s Included
- Indoor Unit
- Outdoor Unit
- Wire Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 6,100~28,200 BTU/h
- Cooling SEER2: 19.0 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 25,000 BTU/h
- Heating Capacity Range: 11,700~33,000 BTU/h
- Heating HSPF2 (Region IV/V): 11.2 / 8.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.61 / 2.3 W/W
- Refrigerant Type: R410a
- Suitable Area: 600~950 Sq.F
Indoor Unit Data
- Part Number: RB024GMFILDFHD
- Air Flow (Hi/Med/Lo): 775 / 693 / 435 CFM
- External Static Pressure: 0 ~ 0.64 Inch WC
- Sound Level (Hi/Med/Lo): 44.0 / 41.0 / 37.0 dB(A)
- Net Dimensions (WDH): 43″-3/8 x 30″-1/2 x 9″-3/4
- Carton Dimensions (WDH): 51″-3/8 x 31″-5/8 x 12″-3/8
- Net / Gross Weight: 90.4 / 105.8 Lbs
Outdoor Unit Data
- Part Number: YN024GMFI22RPE
- Sound Level: 61 dB(A)
- Breaker Needed: 25A (double-pole)
- Net Dimensions (WDH): 37″-1/4 x 16″-1/8 x 31″-7/8
- Carton Dimensions (WDH): 42″-7/8 x 19″-5/8 x 34″-7/8
- Net / Gross Weight: 124.8 / 134.9 Lbs
