Overview
Summary

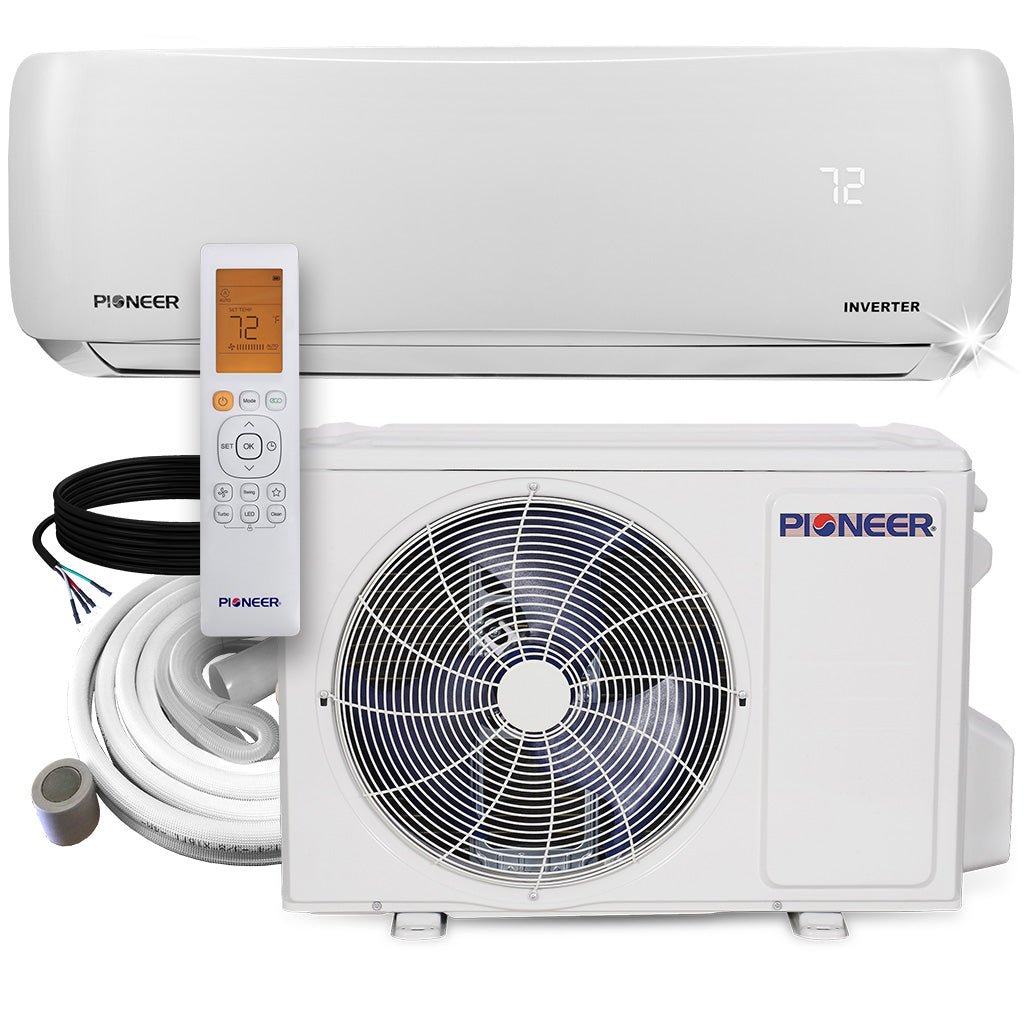

- High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
- Cooling capacity: 12,000 BTU/H with 21.4 SEER2 / 10.8 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 9.1 HSPF2 / 3.23 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $77.00
- Heating: $254.00
[[SERIES]]
What’s Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 3,800~12,850 BTU/h
- Cooling SEER2: 21.40 BTU/W.h
- Cooling EER2: 10.80 BTU/W.h
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 2,730~12,500 BTU/h
- Heating HSPF2 (Region IV/V): 9.1 / 6.9 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.23 / 1.68 W/W
- Refrigerant Type: R410A/28.6 oz.
- Suitable Area: 250~450 Sq.F
Indoor Unit Data
- Part Number: WS012GMFI20HLD
- Air Flow (Hi/Med/Lo): 317 / 207 / 144 CFM
- Sound Level (Hi/Med/Lo): 37 / 30 / 22.5 dB(A)
- Net Dimensions (WDH): 31″-1/2 x 7″-3/8 x 11″-5/8 Inches
- Carton Dimensions (WDH): 34″-1/2 x 11″-1/4 x 15″ Inches
- Net / Gross Weight: 19.8 / 25 Lbs
Outdoor Unit Data
- Part Number: YN012GMFI20RPD
- Sound Level: 55.5 dB(A)
- Net Dimensions (WDH): 30″-1/8 x 11″-7/8 x 21″-7/8 Inches
- Carton Dimensions (WDH): 34″-7/8 x 13″-1/4 x 24″ Inches
- Net / Gross Weight: 59.3 / 64.8 lbs
- Breaker Needed: 15A (double-pole)
