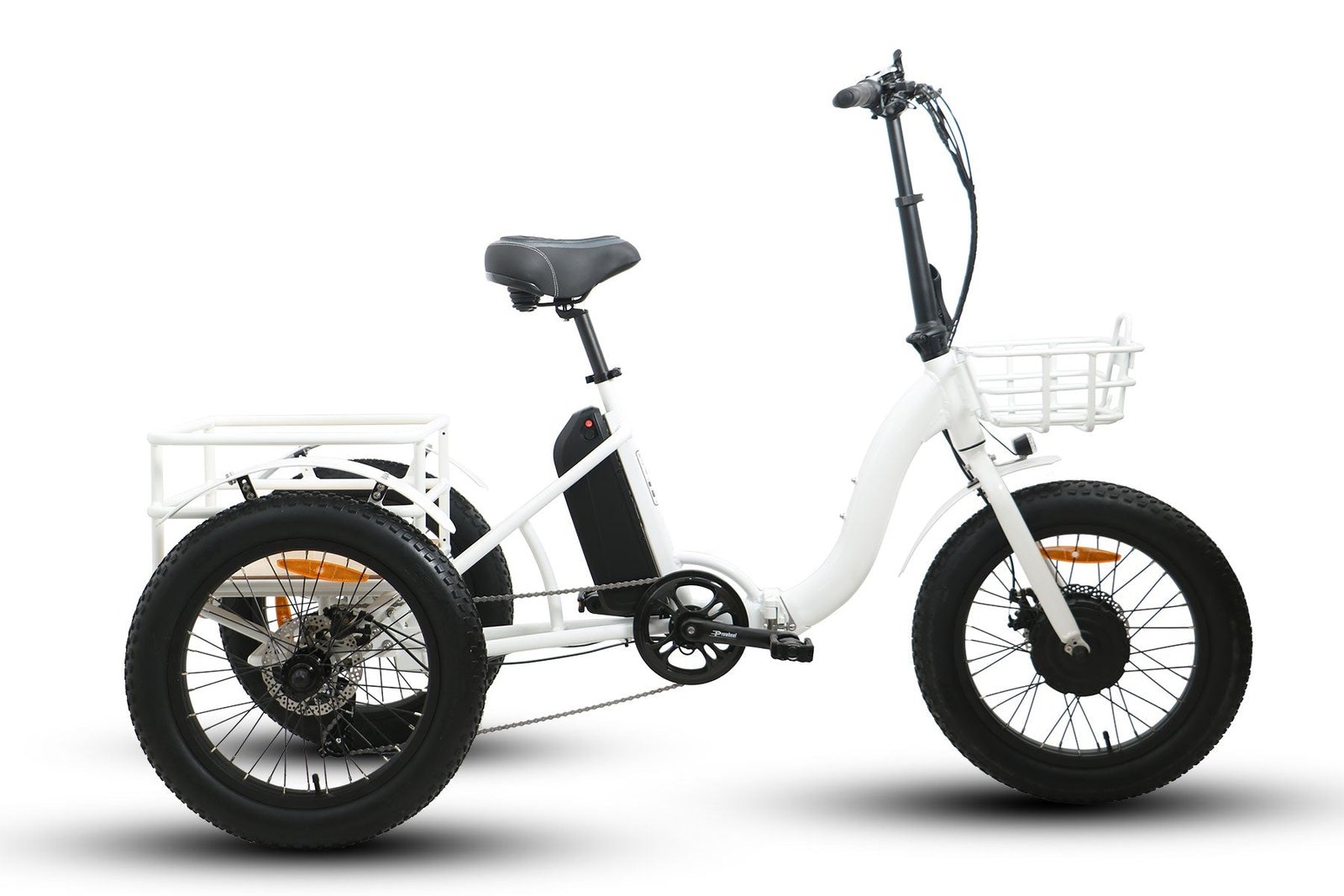

EUNORAU NEW-TRIKE

EUNORAU electric bikes make going further, exploring more, and being free possible.

Let’s Take A Closer Look

These technical features make the EUNORAU NEW-TRIKE the best in its class.

500W FRONT-MOUNTED MOTOR

A fat hub motor in the front wheel can crank out a continuous 500 watts of power with the ability to ratchet things up to over 750 peak watts of power for hill climbs and quicker acceleration. This motor has 80 Newton meters of torque.

12.5AH HIGH CAPACITY BATTERY

Running on a 48-volt system, as well as a 12.5Ah battery, this bike can reach up to an estimated max of 40 miles (64 km) with pedal assist. The locking removable battery located beneath the bike’s saddle, not only keeps the center of gravity low and overall weight well-balanced, but makes it convenient and easy to charge.

INTEGRATED HEADLIGHT

Powered using the main battery pack and controlled by the display. Efficient electric lights ensure your riding safety at night, never having to worry about charging or replacing batteries at the end of a long day.

INTEGRATED BRAKE TAILIGHT

Every time the brakes are applied, the brake light will be activated through the main battery pack.

DUAL REAR BRAKE ROTORS

The dual brakes system ensures safe braking at high speeds, meanwhile triggering the automatic motor cutoff and rear brake light.

TWIST GRIP THROTTLE

Ideal for when your bike is loaded with trike and you’re starting from a stop – the 500W of on-demand power allows for the sole use of throttle instead of pedaling.

ADJUSTABLE FOLDING STEM

An adjustable stem allows riders to customize the height with zero tools.The height adjustment range is 0-150mm, the maximum length is 450mm, which performs well in practical use.And is able to fold the 170 degrees to the right, which is very useful and convenient.

LARGE REAR BASKET

To prevent the loss of personal items, at the rear of the bike, there is an extra large alloy basket with a solid wooden base; keeping things safe and secure.

FOLDING FRAME

Having a folding feature on the main frame tube and telescoping stem, the trike is able to fold, and be stored away.

Dimensions

Review Video

SPECIFICATIONS

• Battery: 48V/12.5Ah
• Range: 30-40 Miles
• Motor: 48V/500W SHENG YI motor HIGH TORQUE installed in front wheel
• Total Payload Capacity: 440 lbs
• Recommended Rider Heights: 5’1″ ~ 6’1″
• Maximum Speed: 18MPH
• Charger: US standard 2.0 A smart charger
• Controller: 48V / 20A
• Display: C3 LCD Display
• Weight: 80lbs
• Pedal Assist Intelligent: 0~5 level pedal assist
• Box Dimensions: (cm) 113 L x 70 W x 84 H

Components

• Tires: CST Tires 20 x 3.0
• Brake lever: Promax Disc Lever with motor cutoff switch
• Rear Light: Integrated Brake Tallight
• Freewheel: Shimano Tourney 7 speed gear shift system
• Brake:EUNORAU Design 160MM Disc Brakes
• Throttle: Half Twist Throttle
• Crank: 170mm forged alloy
• Gearing: Shimano 14-28T
• Frame Material: 6061 Aluminum Alloy
• Stem: Quick Release, Folding, 28.5mm Clamp Diameter
• Pedal: Aluminum Alloy
• Front Light: LED light
• Saddle: Comfortable Saddle
• Tool: Included
• Sprocket: 46T chain-wheel crank
• Rims: 20inch Black Alloy
