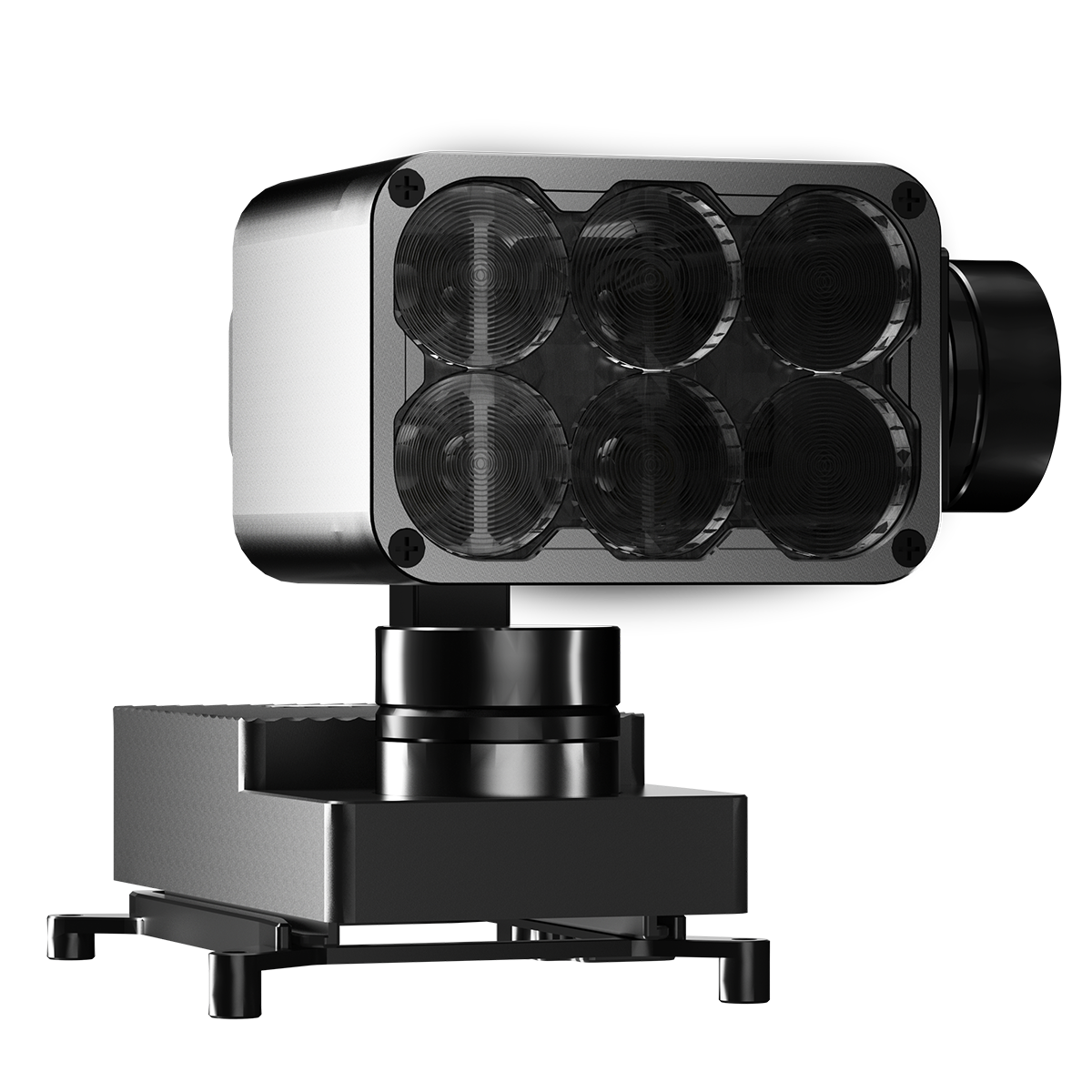

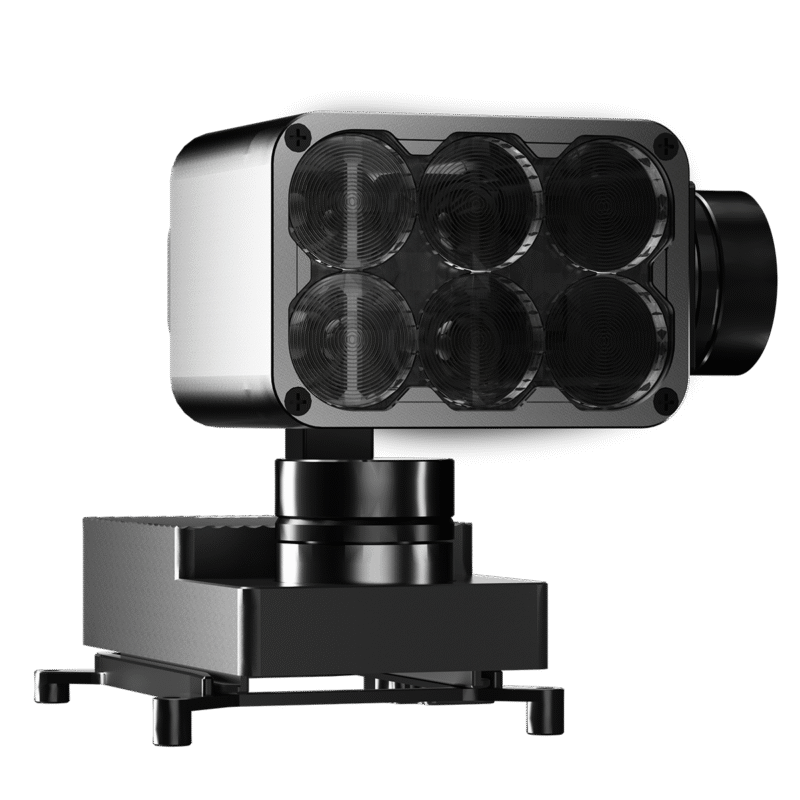

The GL60 Mini Gimbal Search Light is designed for Matrice 30 Series Drones
CZI GL60 Mini Features
- 3 Axis Stabilized Gimbal
- AI Follow
- Illumination Distance of 150M
Specifications
Electrical Interface: DJI OSDK
Weight/g: 240 (Technically)
Size/mm: L158 * W87 * H82
Total Power/W: 65
LED Power/W: 60
Supply Voltage/V: 24
Luminous Flux/lm: 7000 ± 3% (Technically)
FOV/ °: 13
Illumination Distance/m: 150 100 50
Spot Diameter/m: 34 22.8 11.4
Illumination Area/m2: 917 407 102
Central Illuminance/Lux: 7 (Technically) 16 (Technically) 60 (Technically)
Gimbal Rotation and Design Range
Range of Rotation:
- Pitch: -70 ° ~ +90 ° (Technically)
- Horizontal: ±125 ° (Technically)
Design Range of Gimbal:
- Pitch: -70 ° ~ +90 ° (Technically)
- Horizontal: ±125 ° (Technically)
- Roll: ±125 ° (Technically)
Operating Temperature
-20 °C ~ +50 °C (Technically)
