Autel Robotics EVO II Dual 640T Rugged Bundle V3

Autel Robotics EVO II Dual 640T Rugged Bundle V3

EVO II Dual 640T is an advanced drone from Autel Robotics, this rugged bundle with a dual-sensor camera system combines an 8K optical sensor with 640 x 512 high resolution thermal imaging camera to observe objects beyond imagination.

From wildlife trails to hunting pursuits to livestock protection, EVO II Dual 640T’s stable flight performance with an unbeatable 38 mins flight time allows extended monitoring and aims at keeping your mission successful.

At 45 mph speeds with a 27mph wind resistance, EVO II delivers a transmission range of 9.3 miles. Get more out of your drone with the handy Smart Controller V3, a 7.9 in singular console with SkyLink 2.0 transmission tech guarantees long-distance missions from up to 9 miles away.

The IP43 weather rating allows EVO II to operate uncompromisingly even in rough weather conditions. A group of 29 sensors allow 360° holistic obstacle avoidance guiding EVO II to maneuver through the most complicated scenarios like a pro.

Highlights:

• Dual Camera design with a thermal imaging sensor and resolution of up to 640×512
• Support 10 Thermal color palettes, 30Hz refresh rate and Picture-in-Picture mode
• 13mm lens and 16x digital zoom capable of recognizing subjects at up to 100m
• Radiometric Temperature Detection
• 0.8″ CMOS sensor capable of 50 MP photos
• 7.9″ Smart Controller V3
• Dynamic Track 2.1
• Multiple temperature measurement modes – Central, Spot, Regional
• Temperature Alarm with Isotherm and Image Enhancement
• Powerful Infrared Thermal Analysis Tool
• Picture-in-Picture display mode
• 50MP ultra sensitive camera
• RYYB sensor technology

Specifications:

Takeoff weight: 1150 g

Max takeoff weight: 1999 g

Size(L*W*H): 230*130*108mm（folded） 457*558*108mm（unfolded）

Wheelbase: 397 mm

Maximum service ceiling altitude: 7000 m

Max ascent speed: 8 m/s (Ludicrous)

Max descent speed: 4 m/s (Ludicrous)

Max horizontal flight speed: 20m/s (Ludicrous)

Max flight distance (no wind): 22 km

Max angular velocity: 120°/s

Max tilt angle: 33° (Ludicrous)

Max flight time (no wind): 38 min

Max hovering time (no wind): 33 min

Operating temperature range: -10℃ ~ 40℃

Maximum resistance to wind: Level 8

Operating frequency: 902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)

Transmission power: 900M

FCC/ ISED：≤31dBm 2.4G

FCC/ ISED：≤32dBm

SRRC/CE/MIC/RCM：≤20dBm

5.8G (non-Japan) ; 5.7G (Japan)

FCC/ISED/SRRC/MIC：≤33dBm

CE/ RCM：≤14dBm

Hovering accuracy Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally)

Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)

GNSS: GPS/Beidou/Glonass/Gallieo

Internal storage: 8GB

SD storage: max. support 256GB (UHS-3 or Class 10)

Battery Capacity: 7100 mAh

Voltage: 11.55 V

Battery type: LiPo 3S

Energy: 82 Wh

Weight: 365 g

Charging temperature range: 5℃ to 45℃

Storage temperature and humidity: -10~30℃，65±20%RH

Recommended storage temperature: 22-28℃

Max charging power: 93W

Charging time: 90 minutes

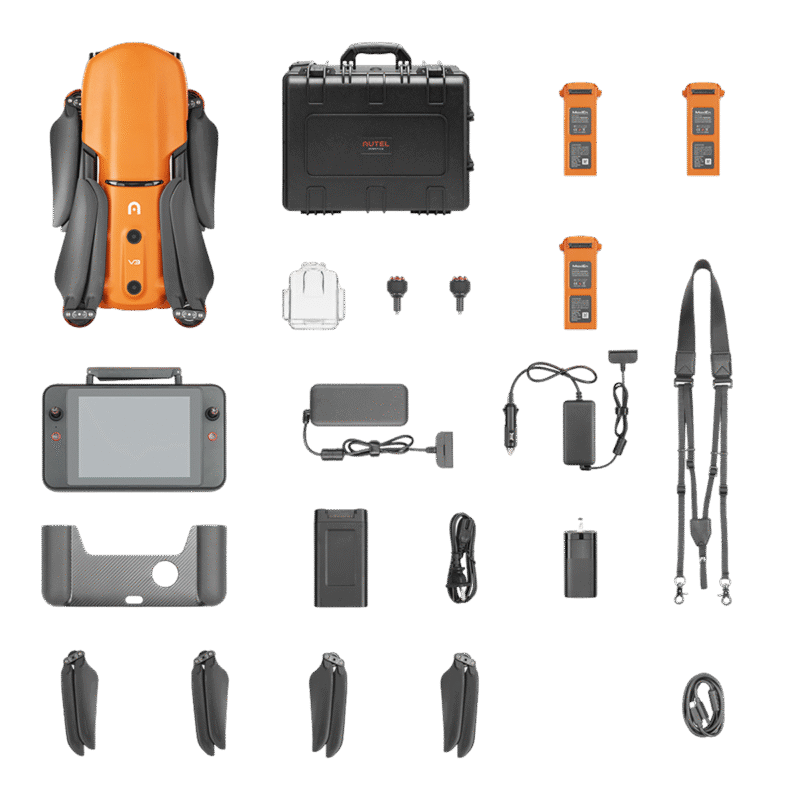

What’s in the Box:

1 x Aircraft (Battery, Propeller, Gimbal Cover, 32G SD Card included)

1 x Smart Controller V3 (Sticks Included)

2 x Spare Propeller (Pair)

1 x Power Adapter

2 x Spare Battery

1 x Extended Port Cover

1 x RC Charger

1 x Car Charger

1 x RC Charging Cable

1 x Smart Controller Spare Joystick (Pair)

1 x Smart Controller Lanyard

1 x Carry Case
