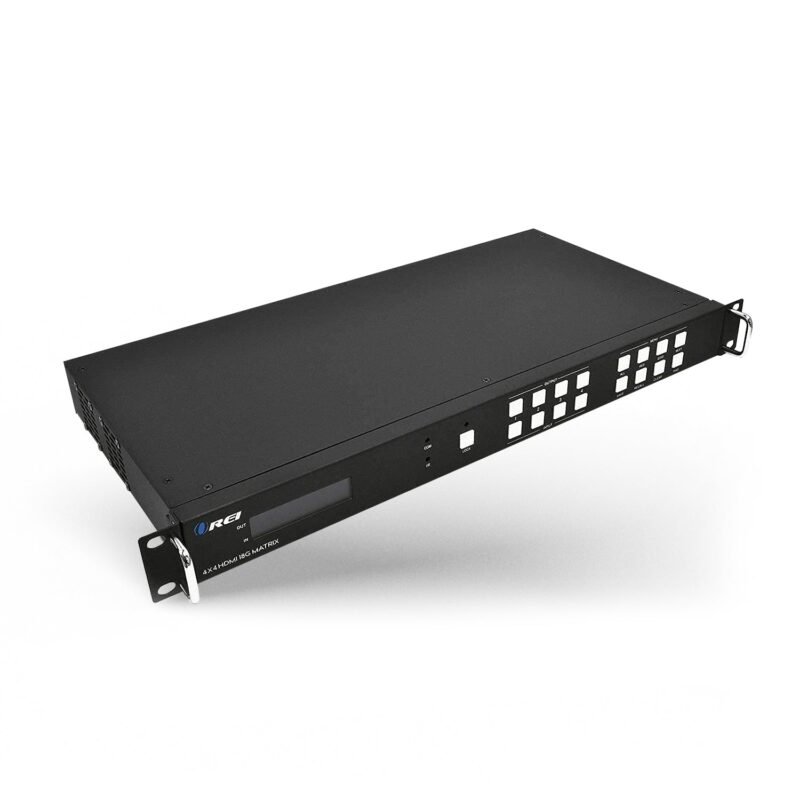

The UHD-404VW stands as a 4×4 Matrix with an embedded video wall feature. It supports video resolutions up to 4K@60hz and 2k@60Hz complies with HDMI 2.0 & HDCP 2.2 standards, boasting an 18Gbps video bandwidth. Doubling as both a conventional 4×4 matrix and a video wall controller, it incorporates IR and audio matrixing. Efficient control is ensured through RS-232 or TCP/IP connections using the provided software or WebGUI. Enjoy additional perks like 180-degree rotation for the top two displays in 2×2 mode and bezel adjustment. Perfectly suited for concerts, events, and a variety of commercial or home setups.
[shortdes]
2×2 Video wall controller
Video resolutions up to 4K@60Hz and 2k@60Hz
IR matrixing and audio matrixing
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
4 × HDMI [Type A, 19-pin female]
4 × L/R [3-pin phoenix]
OUTPUT:
4 × HDMI [Type A, 19-pin female]
4 × L/R [5-pin phoenix]
4 × L/R+Toslink [mini Toslink]
CONTROL:
1 x LAN [RJ45, 8-pin, female]
4 × IR IN [3.5mm Stereo Mini-jack]
4 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3-pin Phoenix connector]
PACKAGE CONTENTS
1x UHD-404VW
4x IR Receiver Cable
4x IR Blaster Cable
1x Remote
1x 3-Pin Phoenix connector
1x AC Power cord
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/ 2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
4K@60Hz:
30 Feet
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 4K@60Hz, 2k@60Hz
ADDITIONAL FEATURES
CEC:
Yes
ARC:
No
USB KVM:
No
PoC/PoE:
No
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
Yes
LOOP-OUT / LOCAL PORTS
Has loop out port:
No
Number of Loop out ports:
0
AUDIO SUPPORT
HDMI Audio Formats:
PCM 2.0
3.5mm Analog Audio Formats:
PCM 2.0
COMPLIANCES
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
60W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
DIMENSIONS & WEIGHT
Length:
430mm / 16.93in
Width:
220mm / 8.66in
Height:
44mm / 1.73in
Weight:
5kg / 11.02lbs
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer’s Warranty
[/tab]
