Ruixu Server Rack Battery – Daisy Chain, Bracket Rack
$499.00
198
People watching this product now!
Payment Methods:
Description
Ruixu Server Rack Battery – Daisy Chain, Bracket Rack
RUiXU bracket rack is a specially designed accessory that allows you to stack up to nine Ruixu RX-LFP48100 lithium batteries vertically in a compact and stable configuration. The RUiXU bracket rack is the perfect solution for homeowners and businesses who want to enjoy the benefits of a reliable, scalable, and cost-effective energy storage system.
For the self-heating server rack battery option, click here!

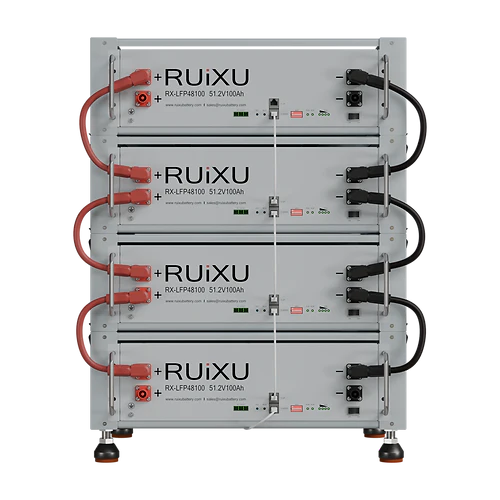

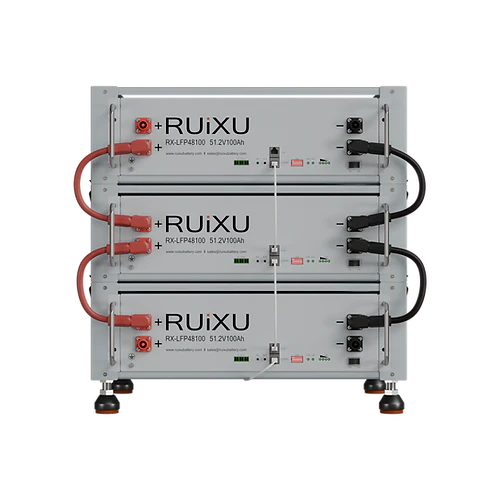

RUiXU Server Rack Battery Optional Installation Method -Bracket Racks – Daisy Chain Connection
- Flexibility & Stackable
- 10kWH-20kWH,Max 4 Stacks
- A rack can be added as needed it
Modular: Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing: Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications:
- Canbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
- RS485: MPP, Voltronic, RCT, Alpha outback
SPECIFICATIONS:
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Nominal energy | 5.12kWh |
| Usable energy | 4.92kWh |
| Operating voltage range | 44.8V-56.0V |
| Charge voltage | 56V |
| Float voltage | 54.6V |
| Recommended charge current | 50A |
| Max. charge current | 70A |
| Recommended discharge current | 50A |
| Max. discharge current | 100A |
| Communication | RS485 / CAN |
| Peak discharge current | 101~119A @ 5mins |
| IP rating | IP20 |
| Cycle life | ≥6000 cycles @90%DOD |
| Net weight | 103.6lb |
| Dimension (W*H*D) | 18.9*5.2*18.1 inches |
| Cell type | Lithium-iron phosphate (LiFePO4) |
| Design life | 15 years |
| Operation temperature | -10~50°C (14~122°F) |
| Storage temperature | -10~45°C (14~113°F) |
| Relative humidity | 5%~90% No condensation |
| Install altitude | ≤4000m |
| Install location | Indoor |
| Installation | Wall mounted / Floor mounted / Stack / Rack mounted |
| Certification | CE / IEC62619 / UN1973 / UN38.3 |
