Ruixu Battery Optional Installation Method Bracket Rack – Flexibility & Stackable
The RUiXU Bracket Rack is a modular and space-efficient installation solution for RX-LFP48100 server rack batteries. Designed for flexibility and vertical stacking, it’s perfect for homeowners and businesses seeking scalable and cost-effective energy storage.
For Self-Heating Battery Optional Installation Method Battery Rack, click here!
FEATURES:
-
Flexible & Stackable Design
- Stack up to 9 RX-LFP48100 batteries vertically
- Expandable from 10kWh to 45kWh with a maximum of 9 units
- Additional racks can be added as needed
- RUiXU Busbar included
-
Modular Capacity
- Supports up to 32 units in parallel
- Scale your system from 5kWh to 160kWh
- No external controller required
-
Smart Configuration
- Use DIP address settings for selecting RS485 baud rate and inverter protocol

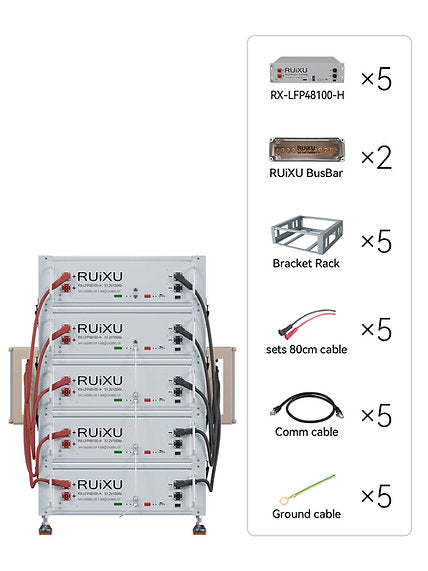

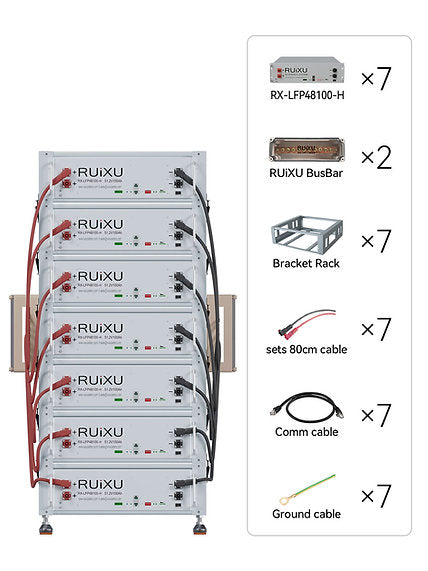

INCLUDES:
(With Each Battery)
- (1) RUiXU 48V Server Rack Battery (RX-LFP48100)
- (1) RJ45/CAT5e Patch Cable
- (1) Ground Cable
- (1) Set of Parallel 4AWG Cables
Optional Accessories (Sold Separately)
- RS485 Communication Cable for PC – This is used for monitoring the battery and firmware updates. If you need this cable, please add it to your cart and check out with batteries together.
- Inverter Communication Cables – Compatible with RUiXU 48V Battery Bank
SPECIFICATIONS:
| Parameters | RX-LFP48100 |
|---|---|
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Nominal energy | 5.12kWh |
| Usable energy | 4.92kWh |
| Operating voltage range | 44.8V-56.0V |
| Charge voltage | 56V |
| Float voltage | 54.6V |
| Recommended charge current | 50A |
| Max. charge current | 70A |
| Recommended discharge current | 50A |
| Max. discharge current | 100A |
| Communication | RS485 / CAN |
| Peak discharge current | 101~119A @ 5mins |
| IP rating | IP20 |
| Cycle life | ≥6000 cycles @90%DOD |
| Net weight | 103.6lb |
| Dimension (W*H*D) | 18.9*5.2*18.1 inches |
| Cell type | Lithium-iron phosphate (LiFePO4) |
| Design life | 15 years |
| Operation temperature | -10~50°C (14~122°F) |
| Storage temperature | -10~45°C (14~113°F) |
| Relative humidity | 5%~90% No condensation |
| Install altitude | ≤4000m |
| Install location | Indoor |
| Installation | Wall mounted / Floor mounted / Stack / Rack mounted |
| Certification | CE / IEC62619 / UN1973 / UN38.3 |
| Communications | |
| Canbus | Victron, SMA, Studer Innotec, Sofar, Solark,Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider |
| RS485 | MPP, Voltronic, RCT, Alpha outback |
