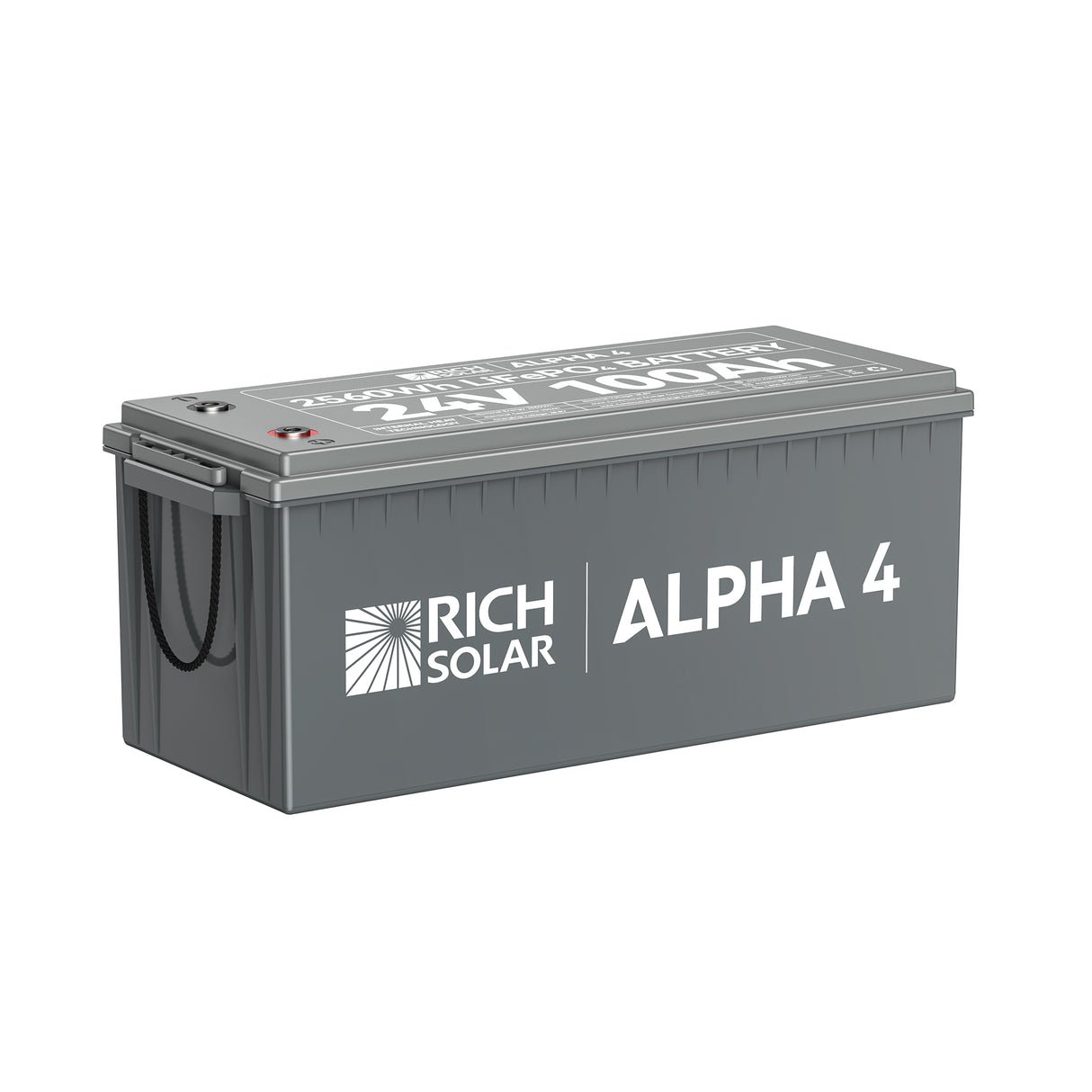

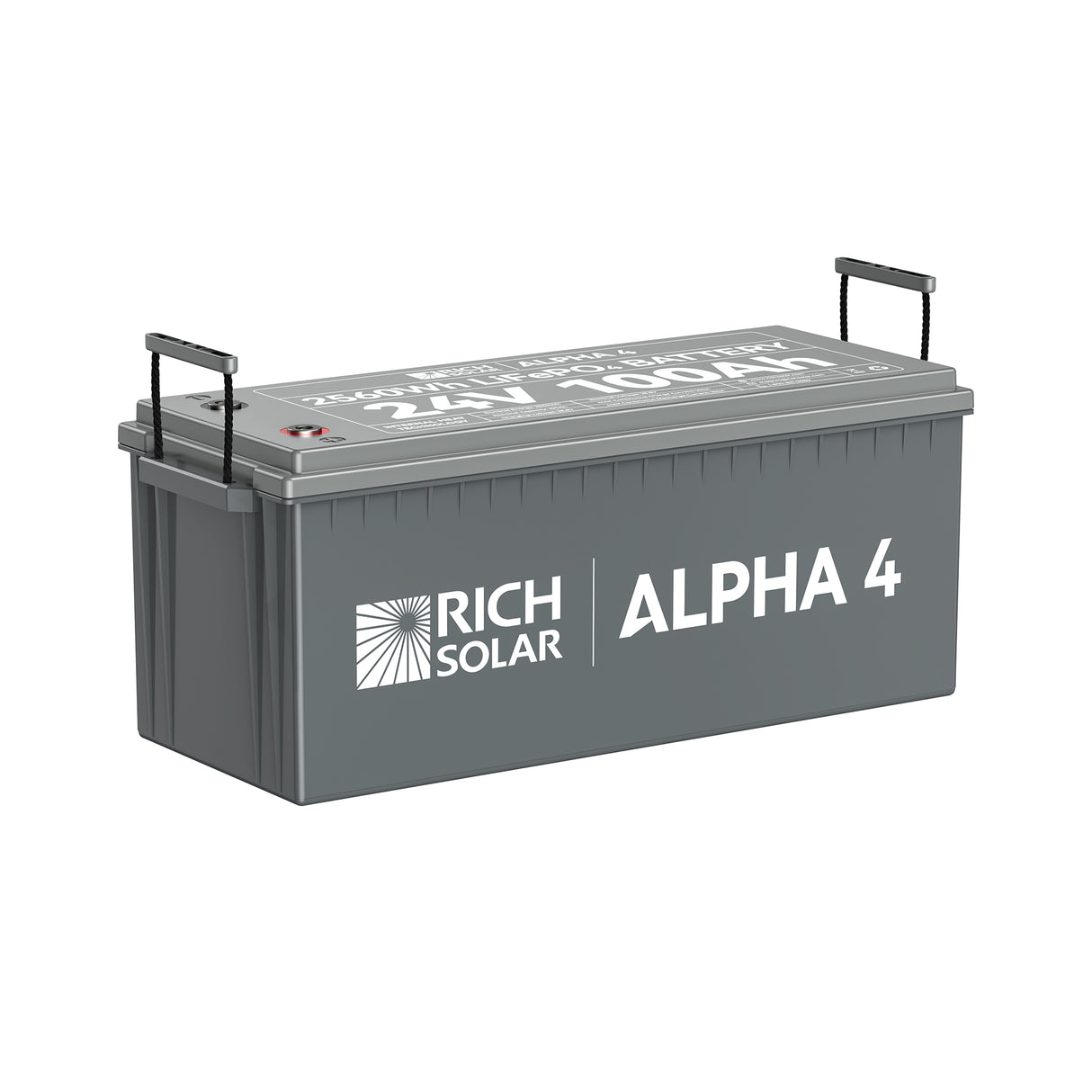

Rich Solar ALPHA 4 | 24V 100Ah LiFePO4 Battery
ALPHA 4 is a 24V 100Ah LiFePO4 battery from Rich Solar exclusively engineered for your RVs, campers, cabins, marine, DIY projects and in general, a reliable power for your off-grid fancy living.

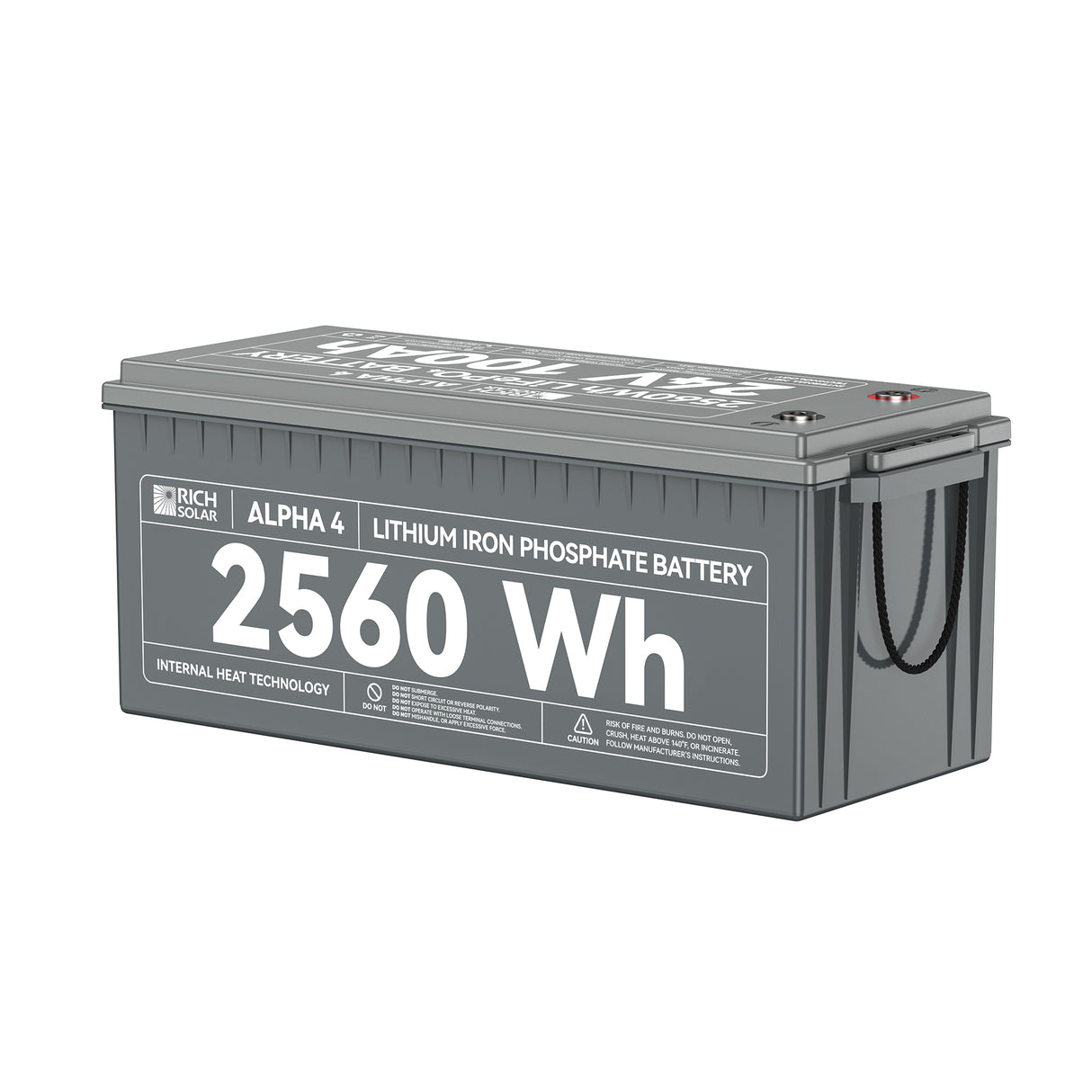

ALPHA 4 features 2560Wh deep cycle battery with a 100Ah nominal capacity that lasts for over 5000+ life cycles. Built to withstand erratic weather conditions, ALPHA 4 boasts of internal heat technology that triggers internal heat when the temperature reaches <5-degree C and automatically cuts off heat once the battery temperature reaches 10-degree C.
A smart battery, one can monitor its operational status via mobile devices in real time with the built-in Bluetooth module.
Specifications:
BATTERY
Cell Type: LiFePO4 Battery
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Nominal Energy: 2560Wh
Cycle Life: 5000 cycles
Maximum Expansion (Parallel & Series): 4P4S
BMS
BMS: 100A
Maximum Charging Current: 100A
Maximum Continuous Discharge Current: 100A
Maximum Discharge Current 10 Seconds: 110A
CHARGE
Charge Method: CC/CV
Charge Voltage: 14.4V ± 0.2V
Recommend Charge Current: 50A (0.2C)
TEMPERATURE
Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)
SELF-HEATING
External Power Draw: 100W
Internal Heating Starts: < 41℉ (5℃)
Internal Heating Stops: > 50℉ (10℃)
OTHERS
Net Battery Weight: 48.5lb
Dimensions (L*W*H): 20.9 x 8.1 x 8.5in
Housing Material: ABS (Flame Retardant Plastic)
Protection Class: IP65
Warranty: 5 Years
Certifications: UL1973, FCC, UN38.3, ETL
What’s in the Box:
1 x ALPHA 4 24V 100Ah LiFePO4 Battery
1 x User Manual
