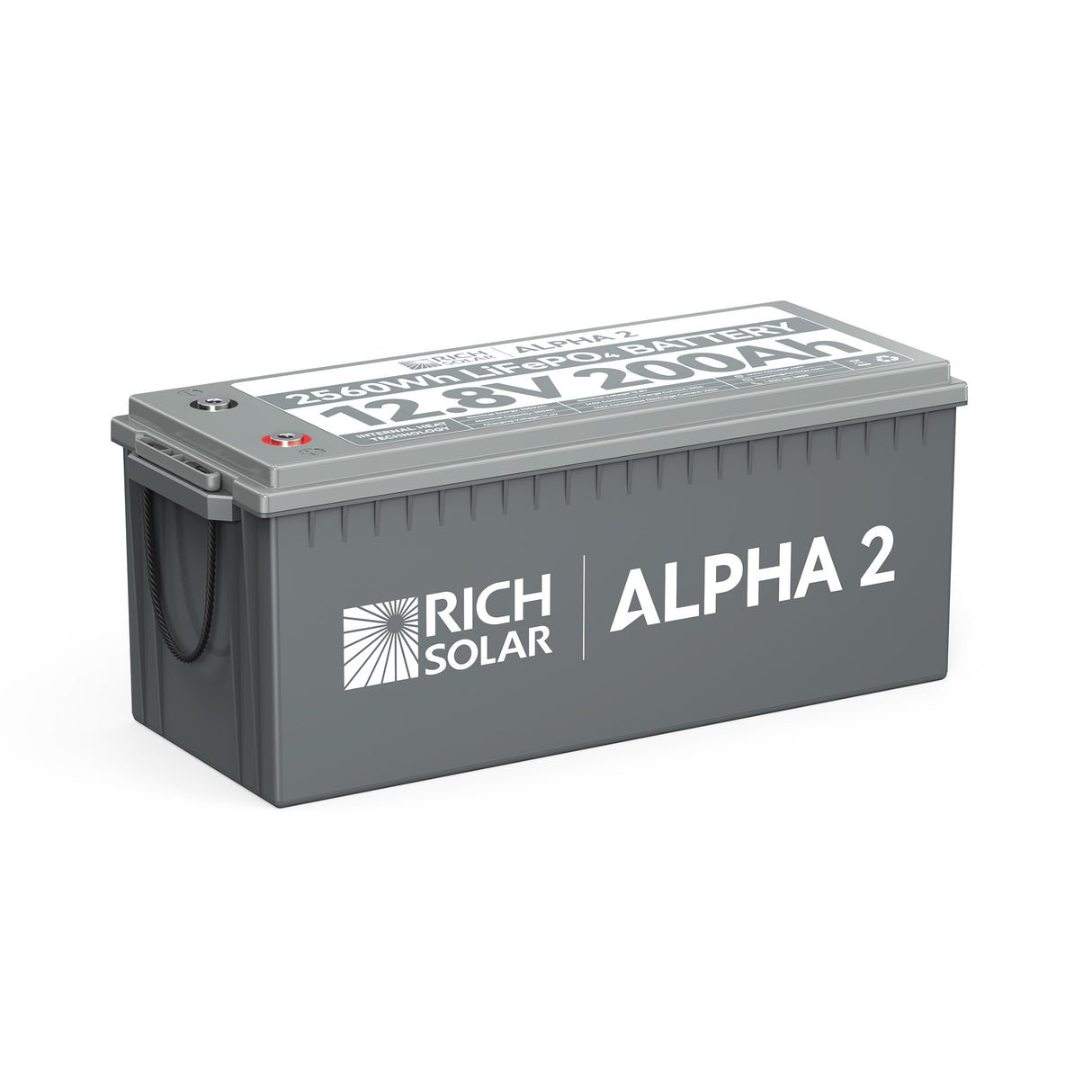

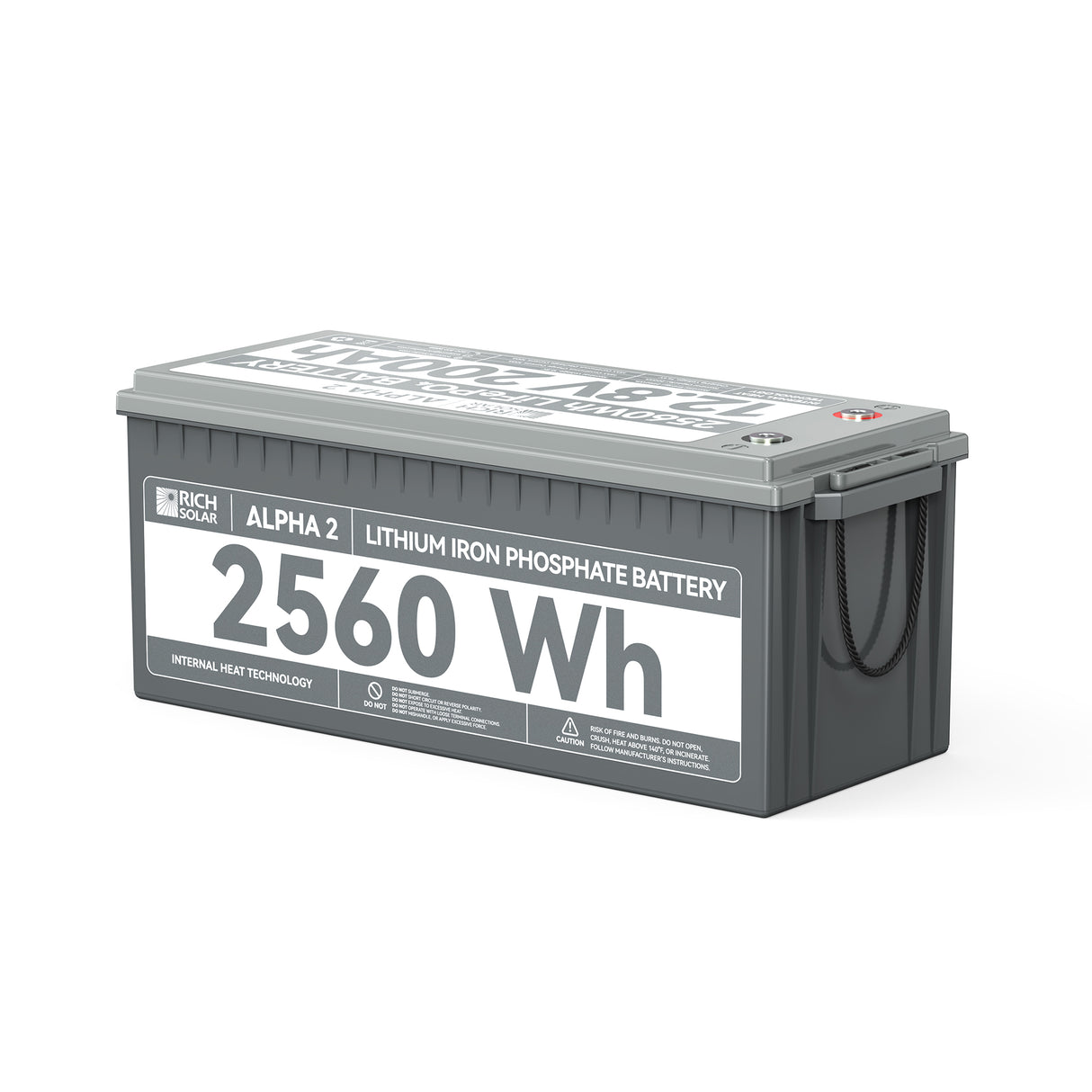

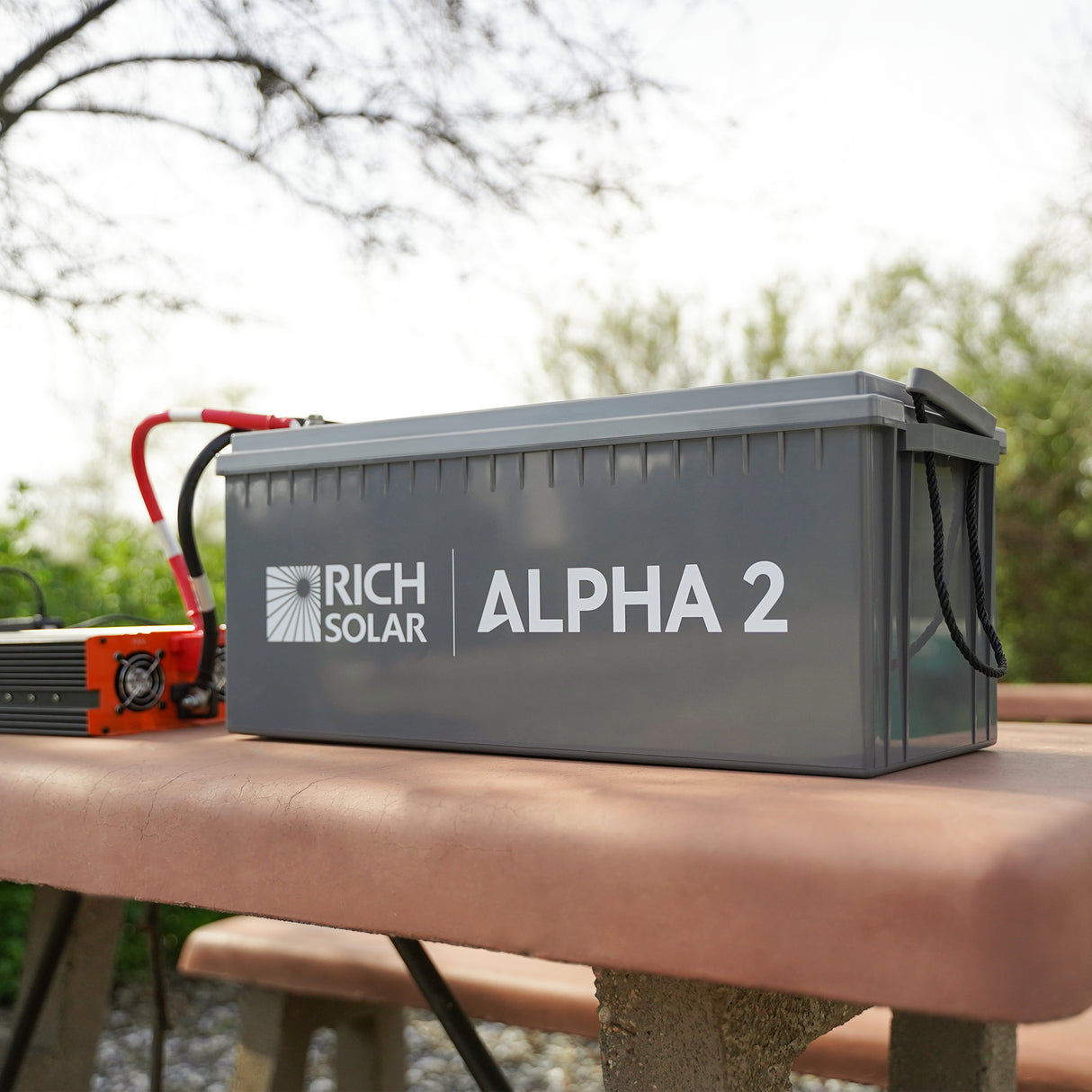

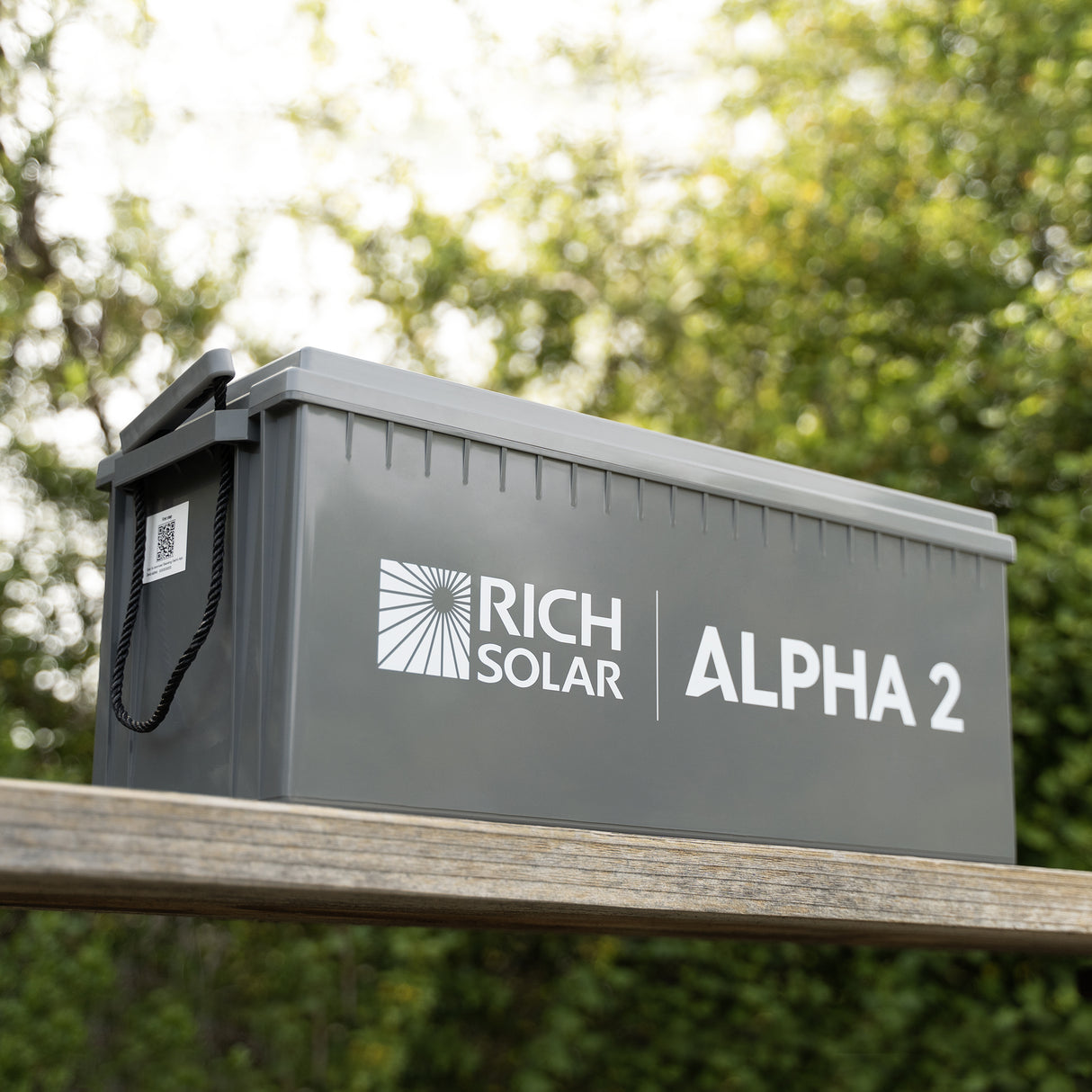

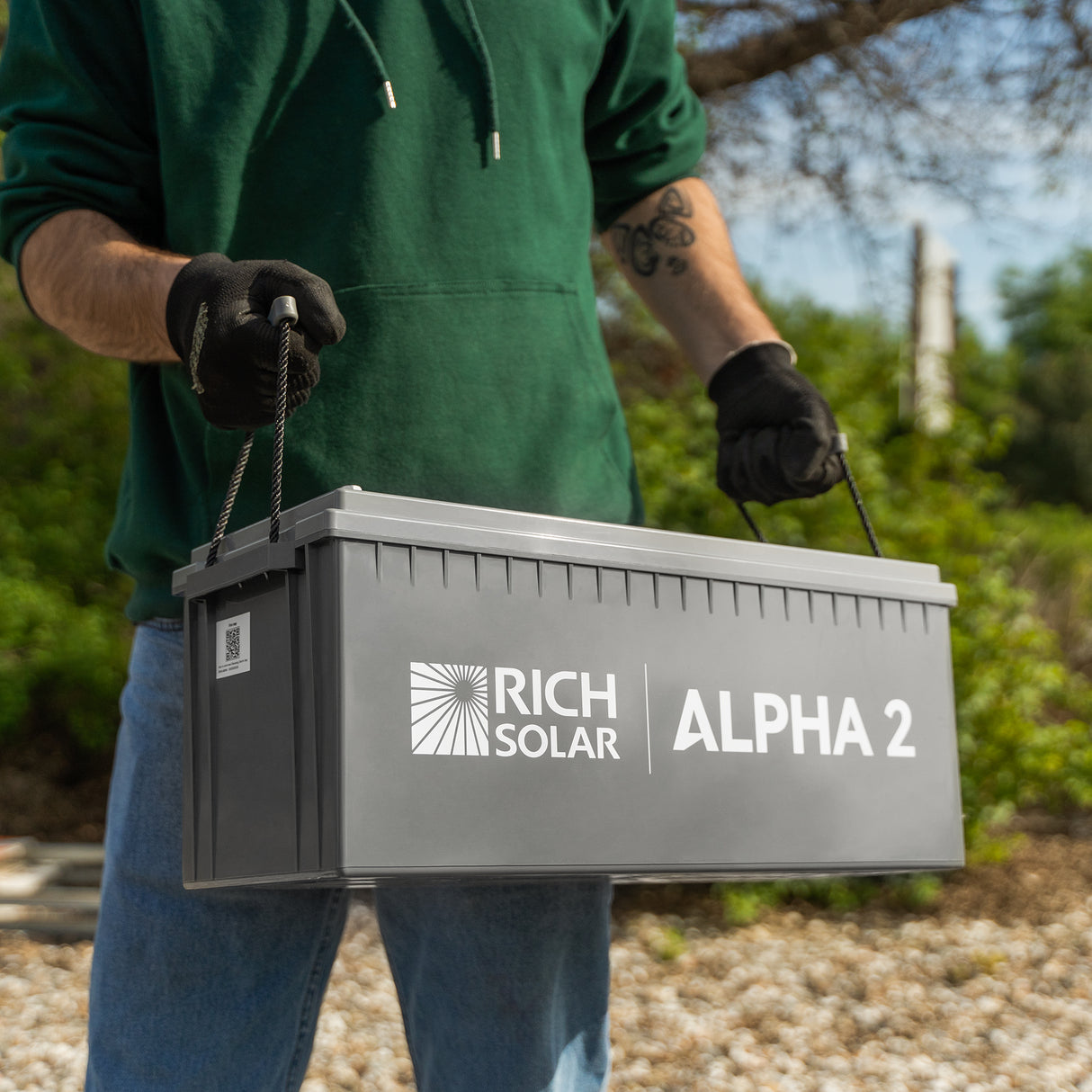

Rich Solar ALPHA 2 | 12V 200Ah LiFePO4 Battery
Gift your RV the power of ALPHA 2, a 12V 200Ah LiFePO4 battery from the house of Rich Solar, a lithium iron phosphate battery perfected to power your off-grid adventures with 2560Wh energy running over 5000+ lifetime cycles with consistent performance.
Built to power your off-grid living dreams, ALPHA 2 features 12.8V nominal voltage with an internal heat tech in place to protect the battery in extreme weather conditions by automatically turning internal heat on/off.
A smart power solution, ALPHA 2 with its built-in Bluetooth module lets you monitor the battery operation status on your mobile device in real time.
Specifications:
BATTERY
Cell Type: LiFePO4 Battery
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah
Nominal Energy: 2560Wh
Cycle Life: 5000 cycles
Maximum Expansion (Parallel & Series): 4P4S
BMS
BMS: 100A
Maximum Charging Current: 100A
Maximum Continuous Discharge Current: 100A
Maximum Discharge Current 10 Seconds: 110A
CHARGE
Charge Method: CC/CV
Charge Voltage: 14.4V ± 0.2V
Recommend Charge Current: 50A (0.2C)
TEMPERATURE
Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)
SELF-HEATING
External Power Draw: 100W
Internal Heating Starts: < 41℉ (5℃)
Internal Heating Stops: > 50℉ (10℃)
OTHERS
Net Battery Weight: 48.5lb
Dimensions (L*W*H): 20.9 x 8.1 x 8.5in (Group 31 size)
Housing Material: ABS (Flame Retardant Plastic)
Protection Class: IP65
Warranty: 5 Years
What’s in the Box:
1 x ALPHA 2 12V 200Ah LiFePO4 Battery
1 x User Manual
