MRCOOL DIY 5th Gen EasyPro – 9,000 BTU Single Zone Mini Split System 115V DIY Quick Connect
$499.00
Payment Methods:
Description

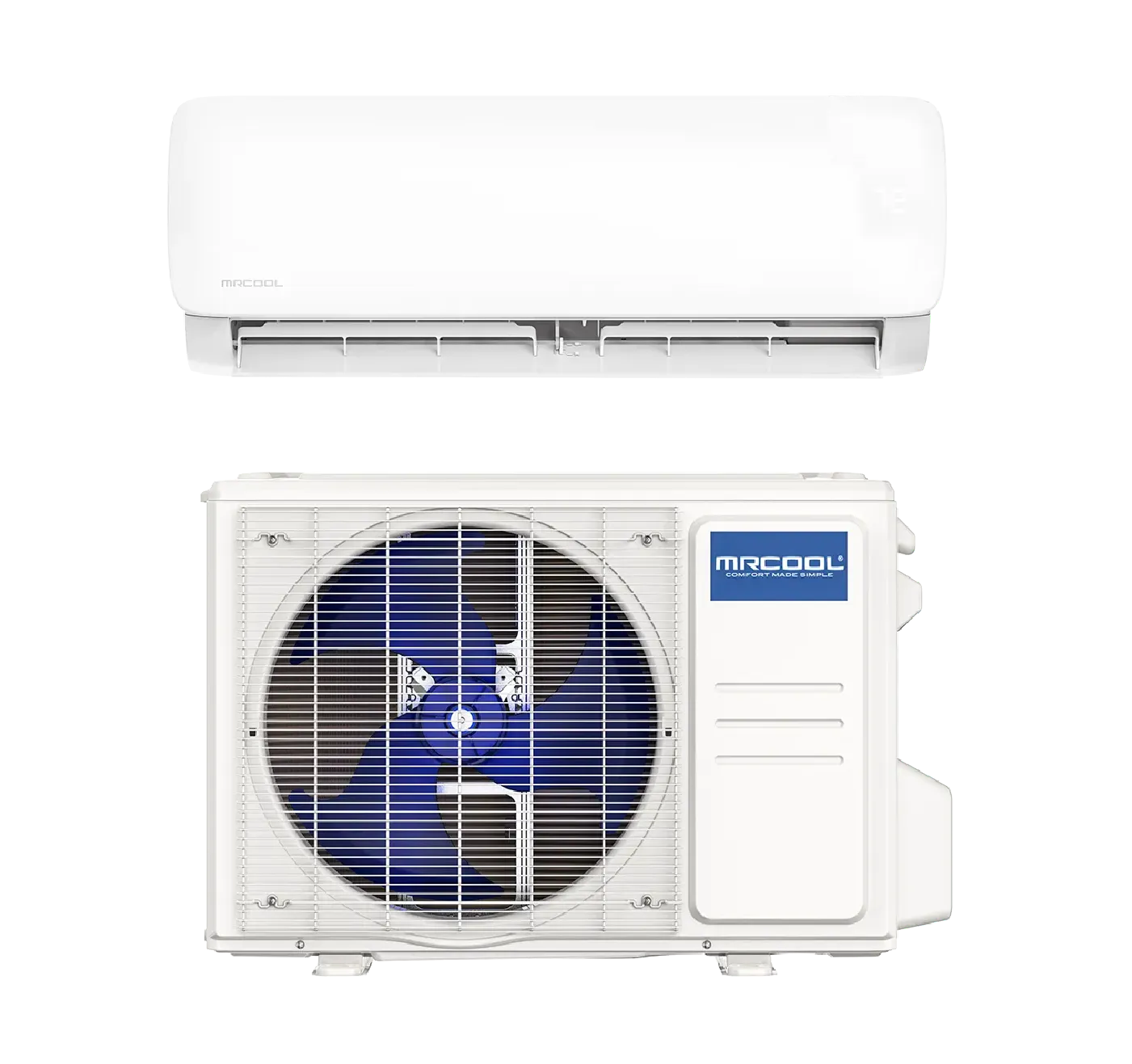

MRCOOL DIY 5th Gen EasyPro – 9,000 BTU Single Zone Mini Split Complete System 115V with 16 ft. DIY Quick Connect Line Set and DIYPRO Cable (EZPRO-09-HP-11516D-O)
Thinking of building your own system? Reach out to us today!
Experience affordable comfort and smart technology with the MRCOOL® EasyPro™ 9,000 BTU Single Zone Mini Split System – designed for effortless homeowner installation. Perfect for bedrooms, home offices, and tech spaces up to 400 sq. ft., this energy-efficient system offers year-round heating and cooling without the need for professional installation.
Featuring built-in WiFi, smart home compatibility, and a pre-charged 16 ft. Fast Connection® line set, the EasyPro™ system is ready to go right out of the box. With ultra-quiet operation, smart controls, and a durable, weather-resistant design, MRCOOL® makes comfort simple, reliable, and efficient.
FEATURES:
-
DIY Installation:
Includes a 16 ft. pre-charged Fast Connection® line set for simple, tool-free installation—no HVAC technician needed. -
Smart Home Ready:
Integrated WiFi control through the MRCOOL® Smart HVAC Controller® app, with voice command compatibility via Amazon Alexa and Google Assistant. -
Remote with Follow Me® Function:
Automatically adjusts airflow and temperature based on the remote’s location for personalized comfort. -
High Energy Efficiency:
SEER2 rating of 20.2 and HSPF2-4 rating of 9.2 for year-round energy savings. -
Whisper-Quiet Operation:
Operates at just 54 dB(A)—ideal for quiet spaces like bedrooms and offices. -
Low Ambient Cooling to 5°F:
Ensures reliable performance in cold climates or tech rooms requiring year-round cooling. -
Gold Fin® Corrosion Resistance:
Protects the condenser from harsh elements—perfect for coastal environments. -
Active Clean Technology:
Helps maintain a cleaner indoor coil and improved air quality with minimal maintenance. -
Eco-Friendly Refrigerant:
Uses R-454B, which offers a lower Global Warming Potential (GWP) compared to older refrigerants like R-410A. -
Certified Quality:
Meets AHRI, NEEP ccASHP, and CEE Tier 1 – North certification standards. -
Warranty Coverage:
Backed by a 2-year parts warranty and 1-year compressor warranty upon registration.
INCLUSIONS:

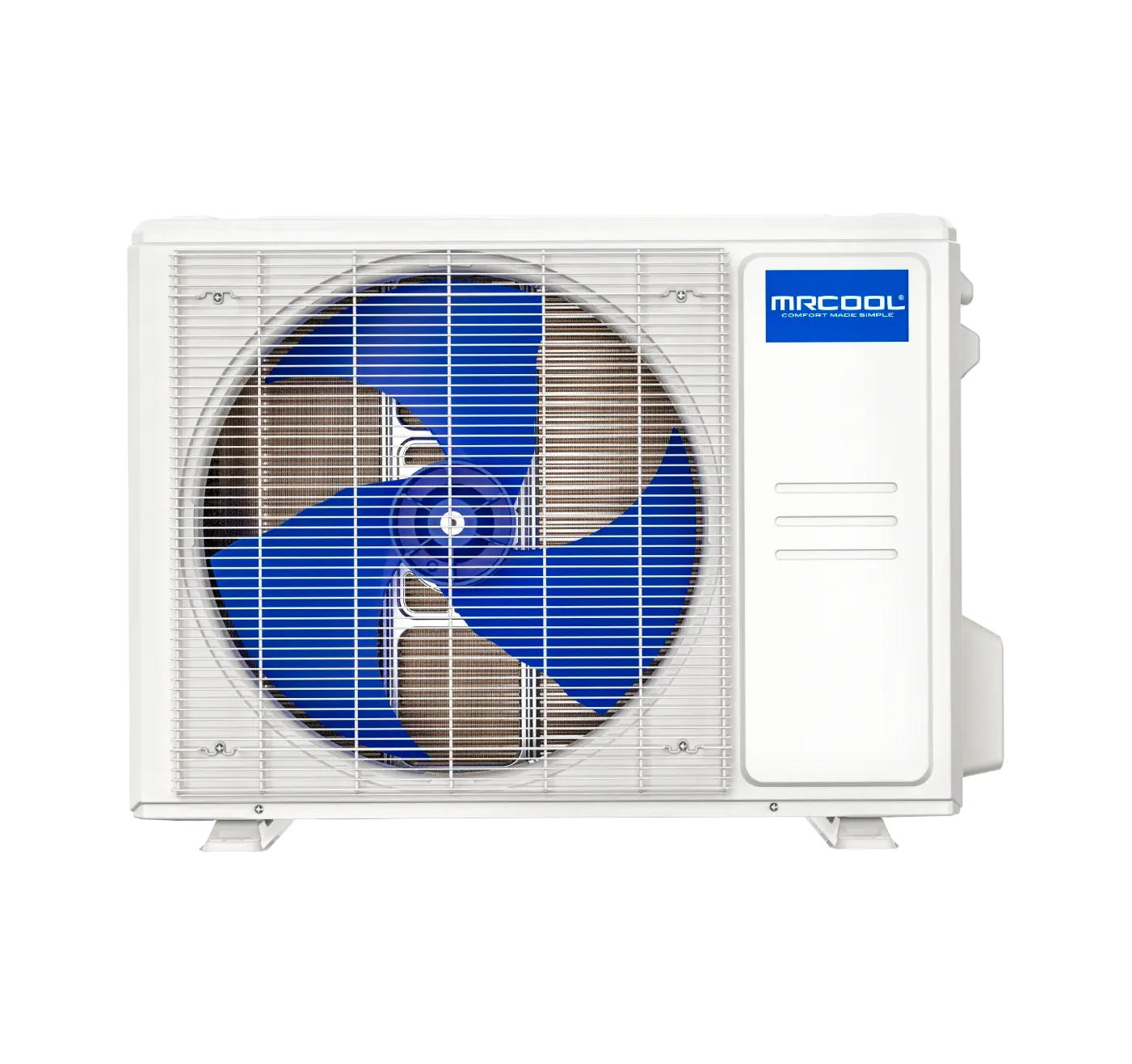

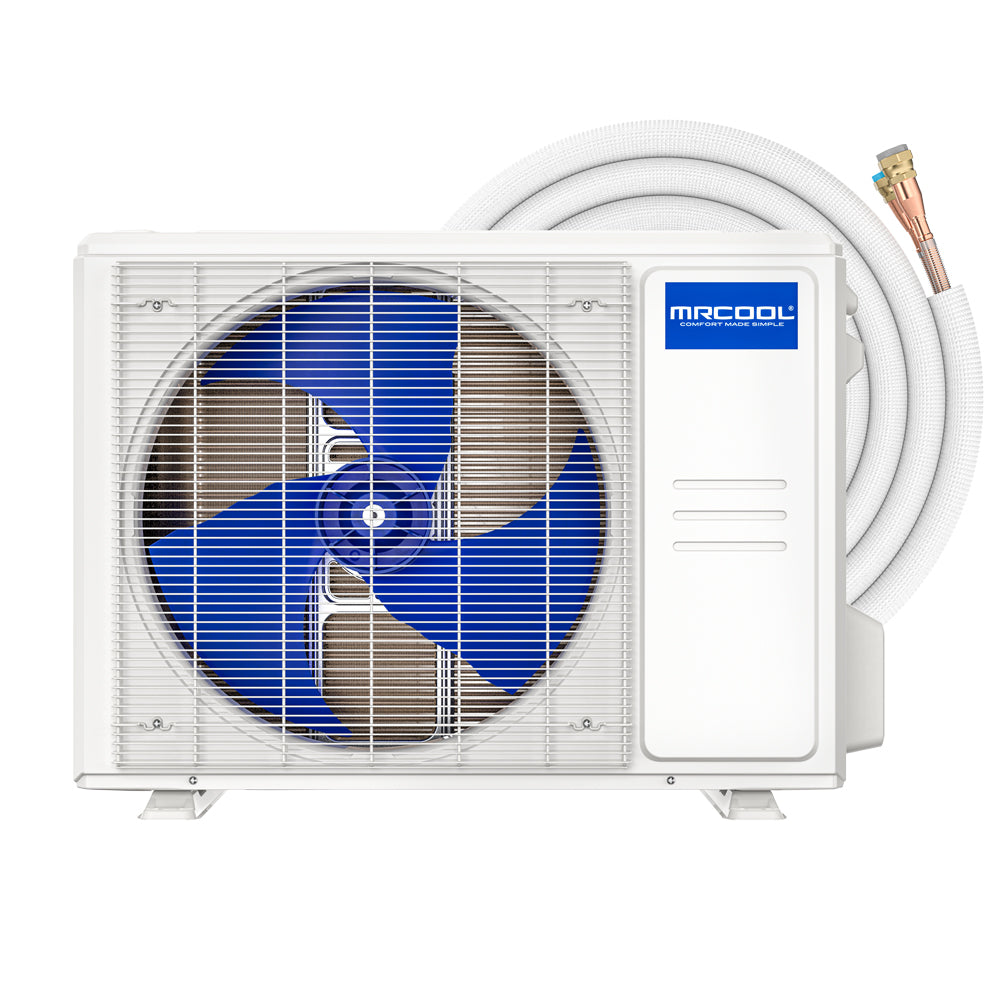

- 9K BTU Condenser + 16 ft. Line Set

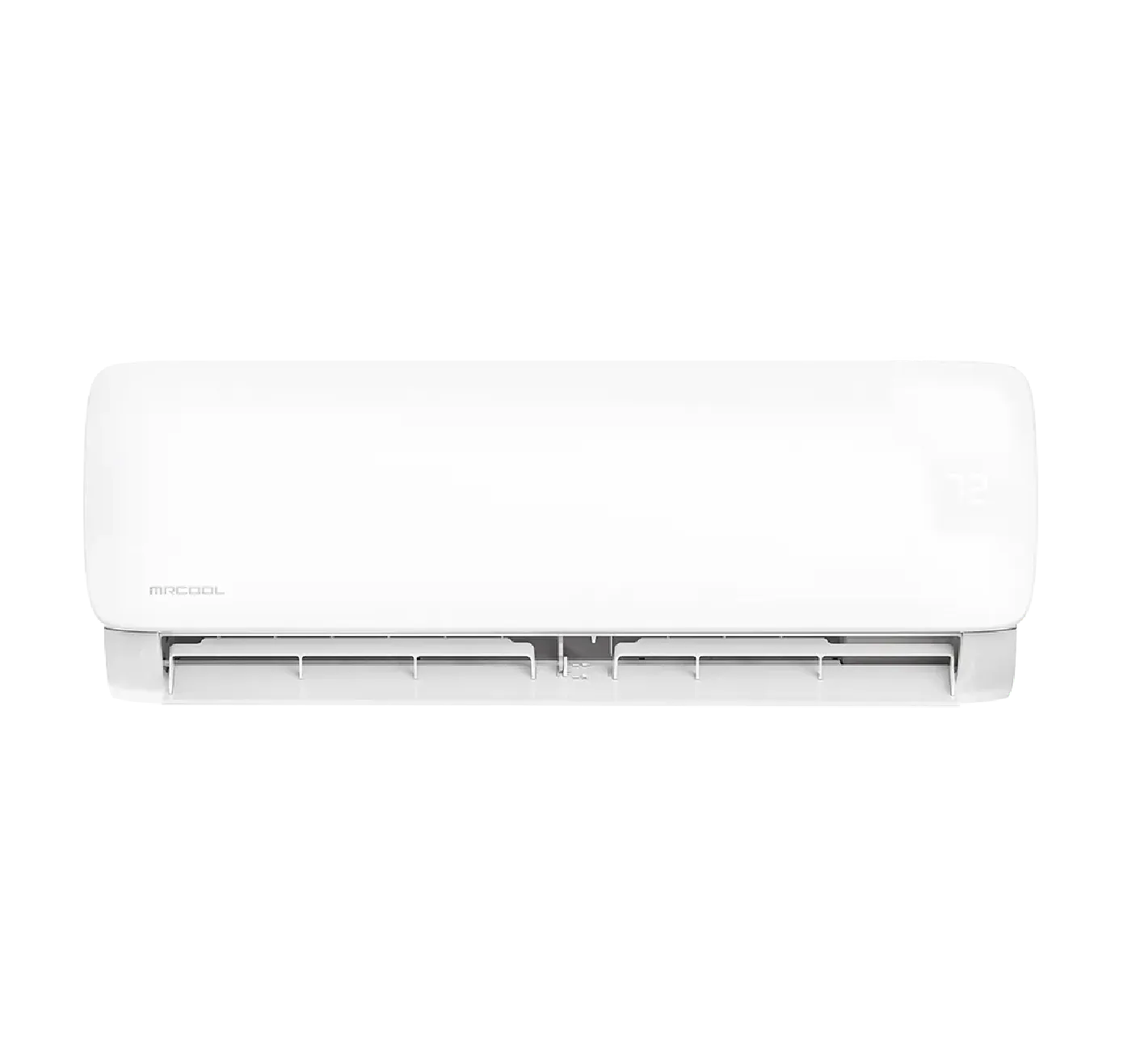

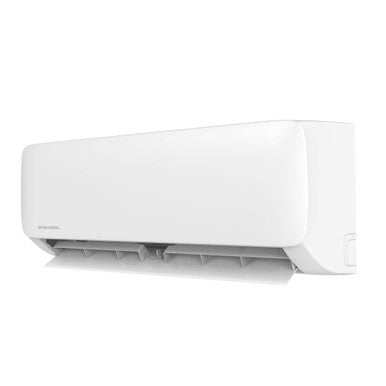

- 9K BTU Air Handler
- Remote Control
NOTE: If you need an additional line set, feel free to reach out to us.
SPECIFICATIONS:
| DIMENSIONS | |
|---|---|
| Condenser Dimensions | 28.35 W” x 10.63 D” x 19.49 H” |
| Air Handler Dimensions | 28.7 W” x 7.87 D” x 11.5 H” |
| Condenser Weight | 54.67 lbs |
| Air Handler Weight | 23.81 lbs |
| CAPACITY & PERFORMANCE | |
| Zone Capacity | 1 |
| Cooling Capacity | 9,000 BTU |
| Outdoor Operating Temperature (Cooling) | 5°F – 122°F |
| EER2 | 11.3 |
| SEER2 | 20.2 |
| Heating Capacity | 10,000 BTU |
| Outdoor Operating Temperature (Heating) | 13°F – 75°F |
| HSPF2-4 | 9.2 |
| HSPF2-5 | 7.1 |
| Coverage Area | Up to 400 sq ft. |
| Outdoor Noise Level | 54 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) | 43.0/31.0/18.0 dB(A) |
| ELECTRICAL REQUIREMENTS | |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 17A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 17.28 oz |
| Liquid Line Size | 1/4″ |
| Suction Line Size | 3/8″ |
| Max Line Set Length | 82 ft. |
| FEATURES | |
| Modes | Auto Mode: Automatically selects heating or cooling based on the room’s temperature. Cool Mode: Lowers the room temperature to your desired setting. Heat Mode: Raises the room temperature to your desired setting. Fan-Only Mode: Circulates air without heating or cooling. Dry Mode (Dehumidification): Reduces humidity levels in the room. Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings. |
| Inverter | DC |
| Compressor Type | Rotary |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| Certifications & Warranty | |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty | 2 Year Parts / 1 Year Compressor |
