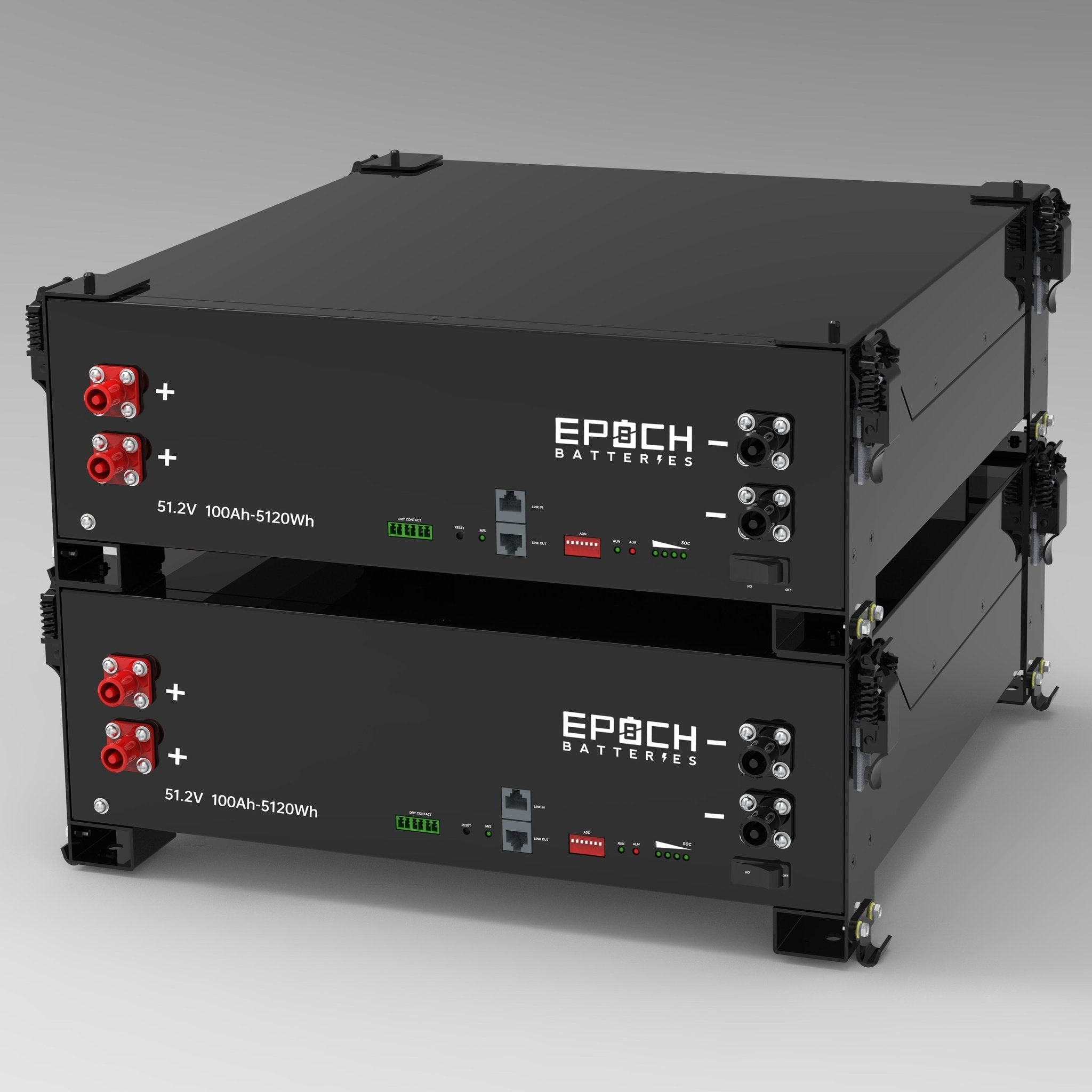

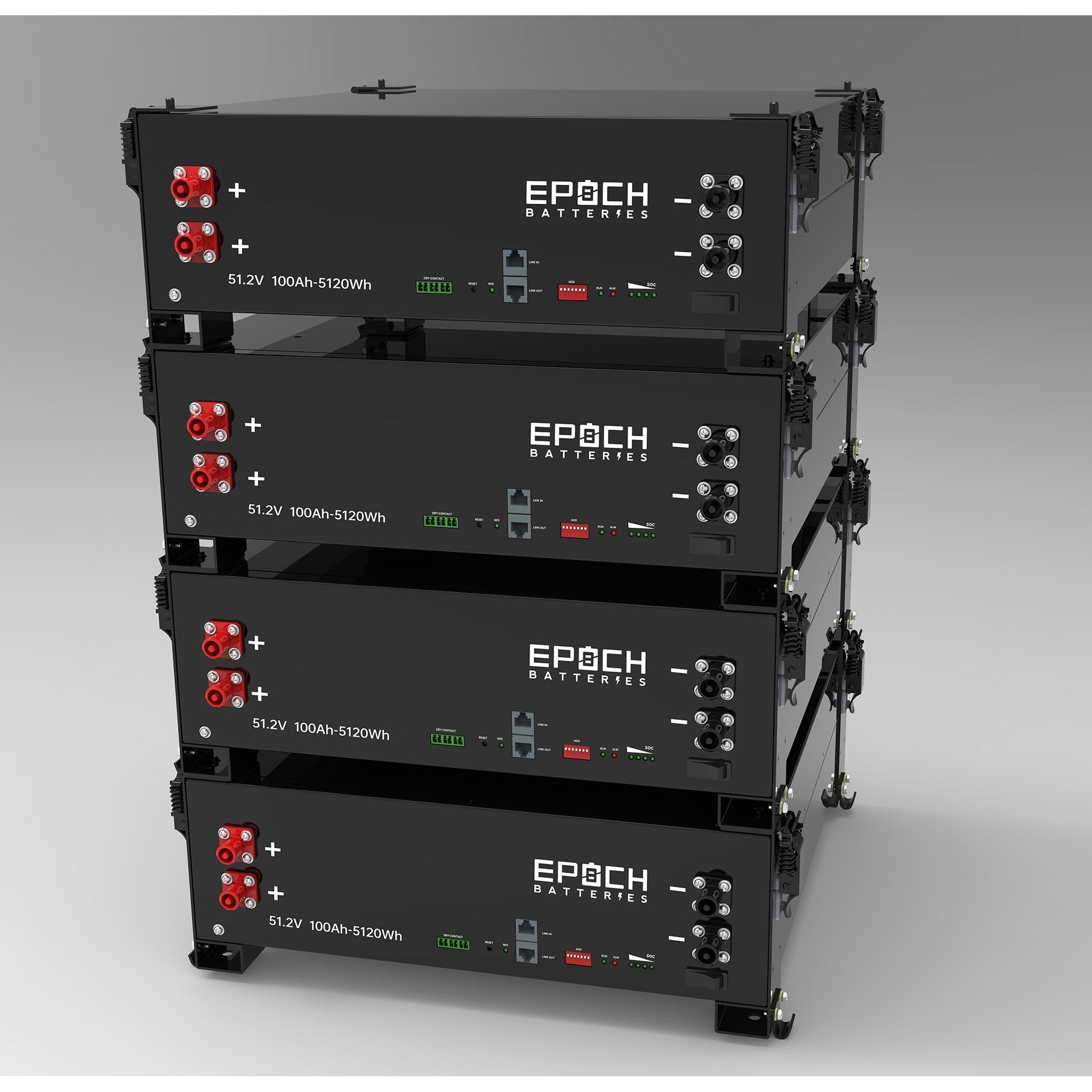

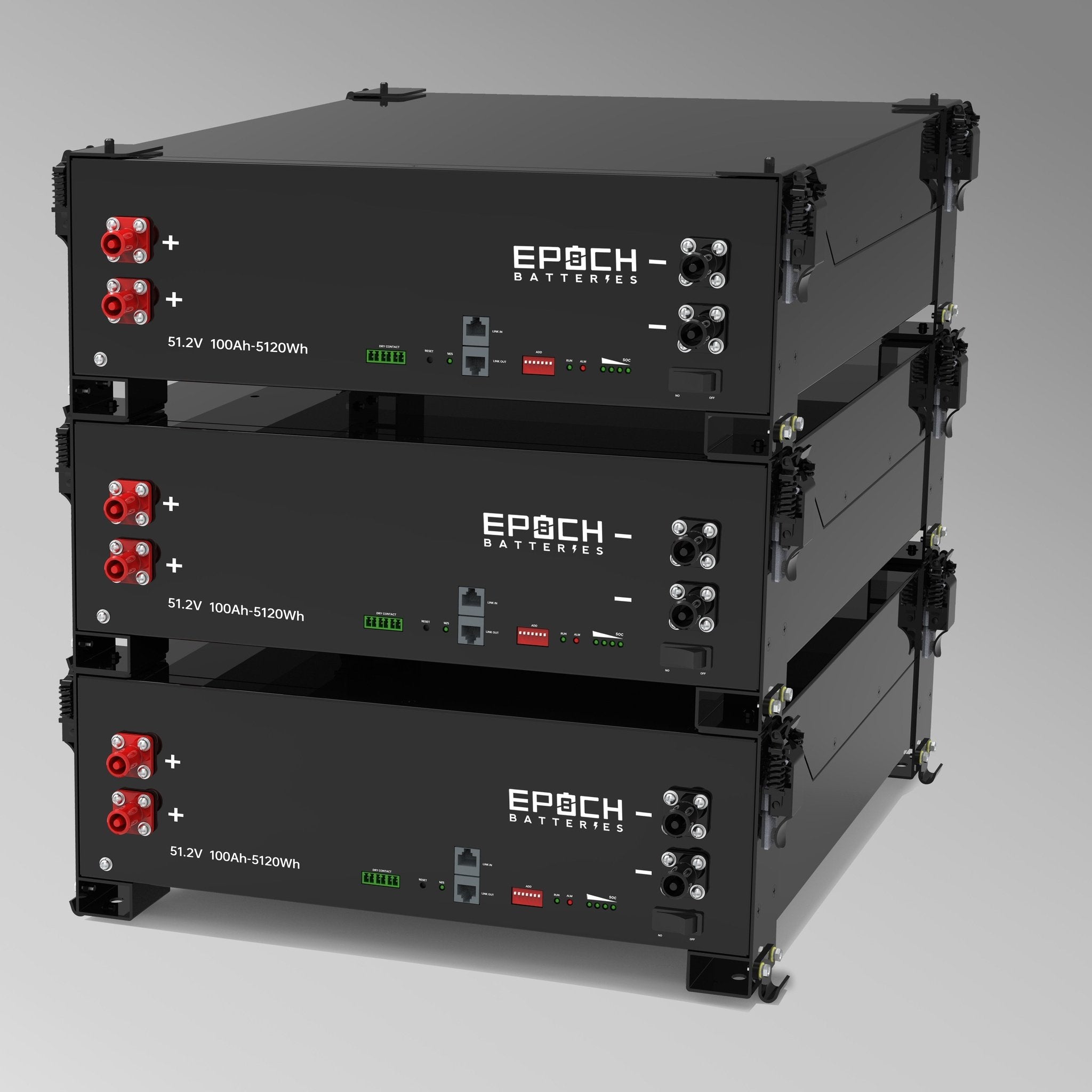

Epoch Batteries | 48V 100Ah 5.12kWh – Self-Heating Server Rack Lithium Battery

Overview

• IP 20 Weatherproof
• 6000+ Cycles
• Advanced BMS
• Internal Heating
• Safe & Reliable

Description

• ALL WIRING IS INCLUDED
• LiFePO4 Chemistry
• 100Ah Capacity – 5120kWh
• SELF-HEATING – Charge as low as -25°C
• 100A Max Continuous Discharge (119A 5mins Discharge) (200A 15sec Peak Discharge)
• CAN/RS485 Communication
• Compatible INVERTER list – Victron/Sol-Ark/Solis/Growatt/Studer/Goodwe/Sunsynk/Voltronic/ALPHA-OUTBACK/Deye/Sofar/SMA
• LUXPOWER/Schneider/TBB/MPP/SAJ/MEGAREVO
• Max 32 in parallel, Plug & Play
• 6000+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty
• Weight: 101lbs
• Dimensions: Length: 17.4 (inches) x Width: 18.1 (inches) x Height: 5.2 (inches)

Specification

CONFIGURATION

• Cell Configuration: 16S1P
• Chemistry: LiFePO4

CURRENT

• Ah Capacity: 100Ah
• Max Continuous Discharge Amps: 100A
• Max Charge Current Amps: 70A
• Max Discharge Peak Current Amps: 200A @ 15sec
• Series | Parallel: Max (32) in Parallel, Plug & Play

VOLTAGE

• Voltage: 51.2V
• Max Charge Voltage: 56.0V
• Operating Voltage Range: 48.0V – 56.0V

TEMPERATURE

• Charge Temp Range: -10°C (14°F) / 50°C (122°F) (with heating)
• Discharge Temp Range: -20°C (-4°F) / 50°C (122°F)
• Storage Temp: 0°C (32°F) / 35°C (95°F)

Manuals & Downloads

User Manual
Test Report
Data Sheet
