Battery Evo Walrus G4 15K INV. 23 kWh AC110/220V 96N and Kit Options
$499.00
Payment Methods:
Description
Battery Evo Walrus G4 15K INV. 23 kWh AC110/220V 96N and Kit Options
OPTIONS:
- Walrus G4 15K Inverter – 260Ah 23kWh + 15K Inverter
- Walrus G4 with Extension Kit – 520Ah 46kWh + 15K Inverter

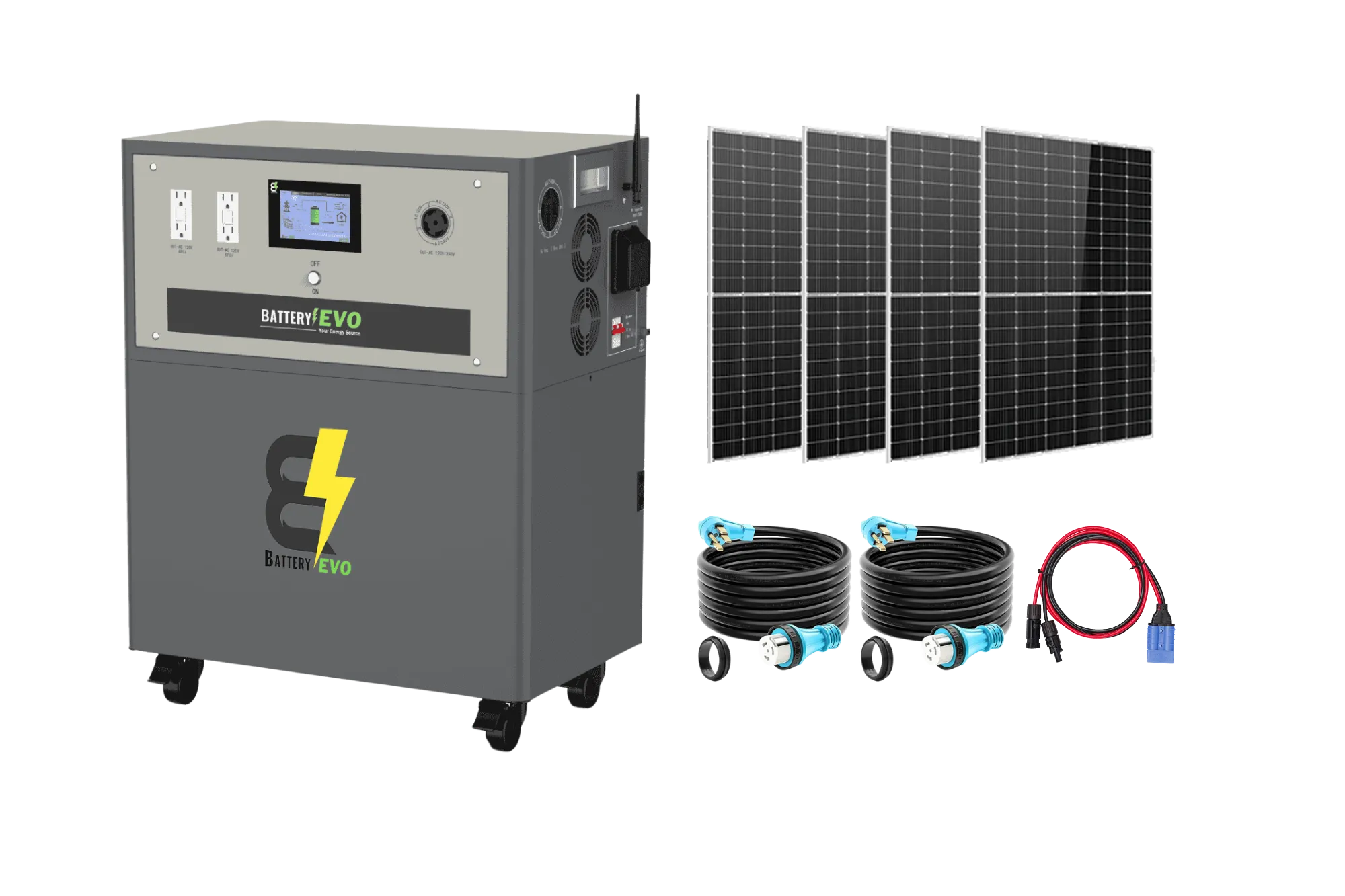

- Walrus G4 with 4 Solar Accessories Kit – 260Ah 23kWh + 15K Inverter + 2200W Solar

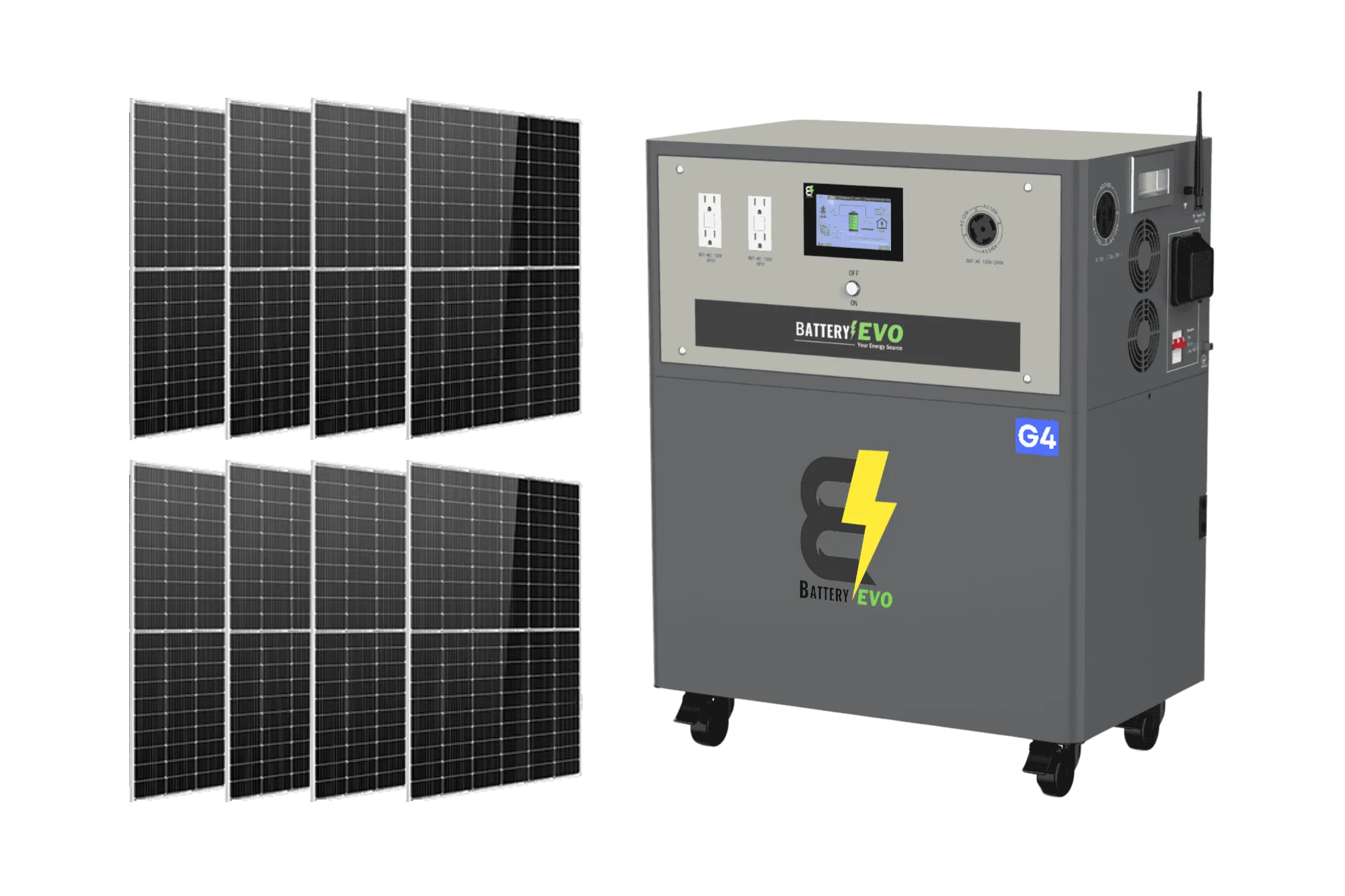

- Walrus G4 with 8 Solar Accessories Kit – 260Ah 23kWh + 15k Inverter + 4400W Solar

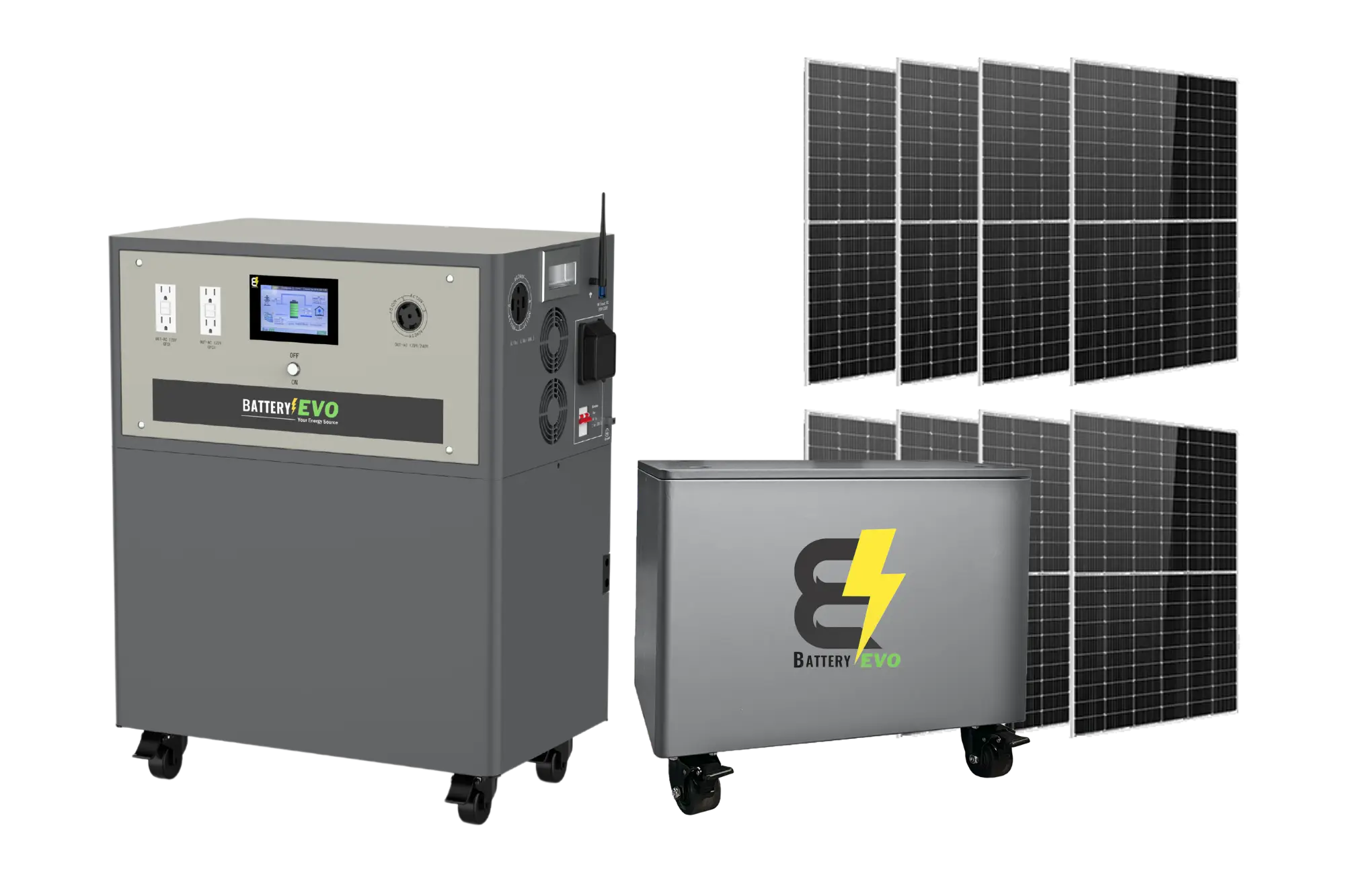

- Walrus G4 with Extension and 8 Solar Accessories Kit – 520Ah 46kWh + 15K Inverter + 4400W Solar
PRODUCT INFORMATION:
The BatteryEVO 260Ah 23kWh WALRUS G4 all-in-one system is a next-generation energy storage solution, integrating a 15kW inverter and an 8kW photovoltaic (PV) charge controller to deliver superior performance, efficiency, and smart technology. Designed to meet the increasing energy demands of modern homes and businesses, this all-in-one system offers seamless power management, optimized solar charging, and reliable backup energy.
Designed for both grid-tied and off-grid applications, the WALRUS G4 delivers high-capacity energy storage, ensuring uninterrupted power for households aiming for full energy independence. Whether you’re running heavy-duty appliances like HVAC systems and refrigerators or need a reliable backup during outages, this system provides stable and efficient performance.
Equipped with an intuitive 7-inch touchscreen display, the WALRUS G4 offers real-time monitoring and seamless energy management, making it a perfect choice for homeowners looking to optimize their power usage. The system supports multiple energy sources, including solar, DC, and AC power, allowing for flexible installation and energy diversification.
Built with advanced lithium technology, the WALRUS G4 outperforms traditional lead-acid batteries, offering up to 300% longer lifespan while requiring minimal maintenance. Portability-enhancing wheels allow for easy relocation without the need for wall mounting. With programmable charge/discharge scheduling and Wi-Fi connectivity, this system adapts to your energy needs with maximum efficiency.
Backed by a 10-year warranty, the WALRUS G4 is the ultimate choice for those seeking a high-performance, durable, and smart energy storage solution.
FEATURES:
- Works on homes with grid tied solar panels for more utility savings.
- Works on off-grid homes with DC solar panels using PV 90-230V.
- Works on homes without solar panels to reduce energy bills.
- Wi-Fi and network ports installed.

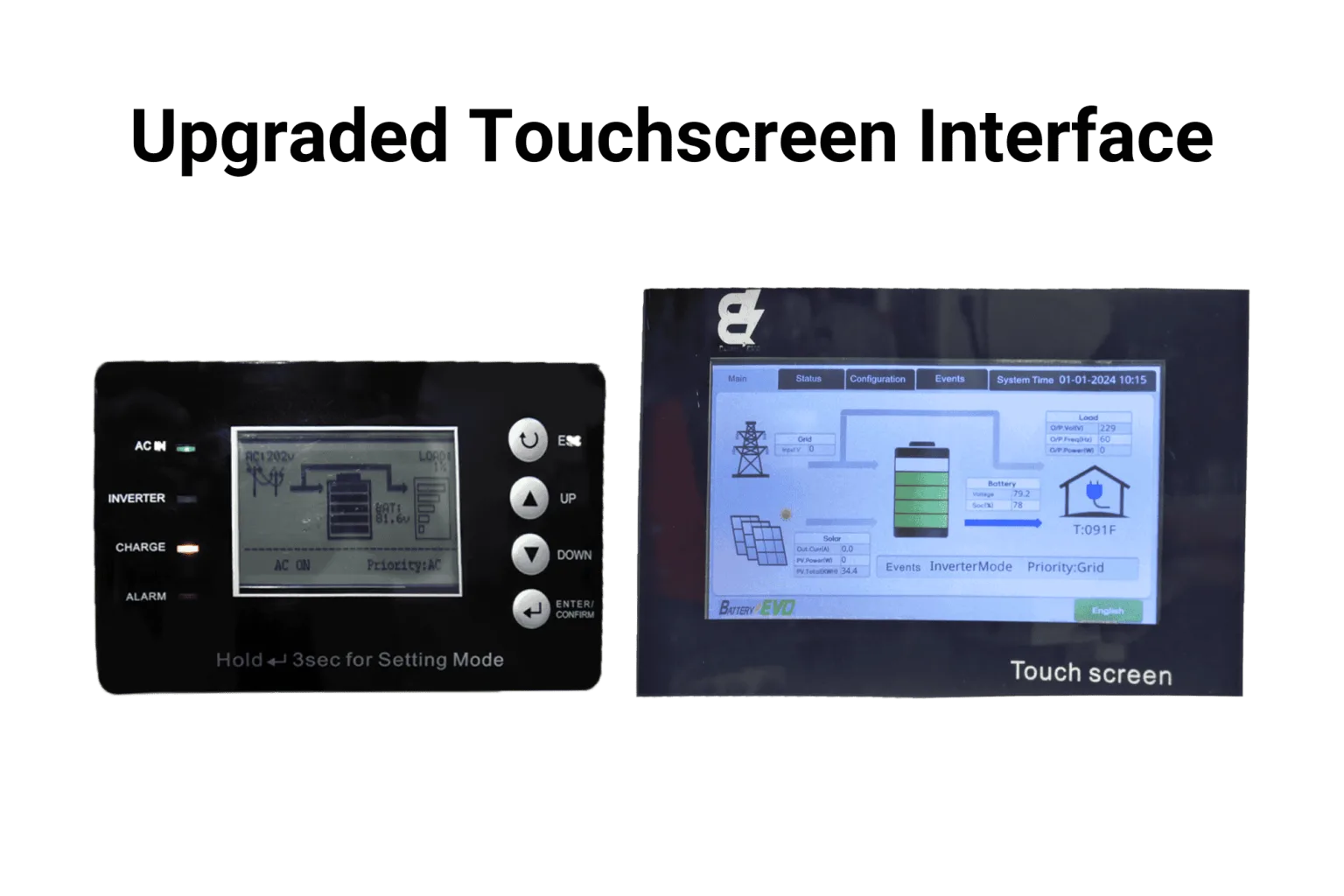

- 7-inch color touch screen
- 110V/220V Outlets installed on center console.
- Programmable charge/discharge time scheduler.
- Wheels installed for portability and removes the need to wall mount.
- Expandable by connecting multiple Walrus to get more capacity.
- Made in America.
- 10 Year warranty.

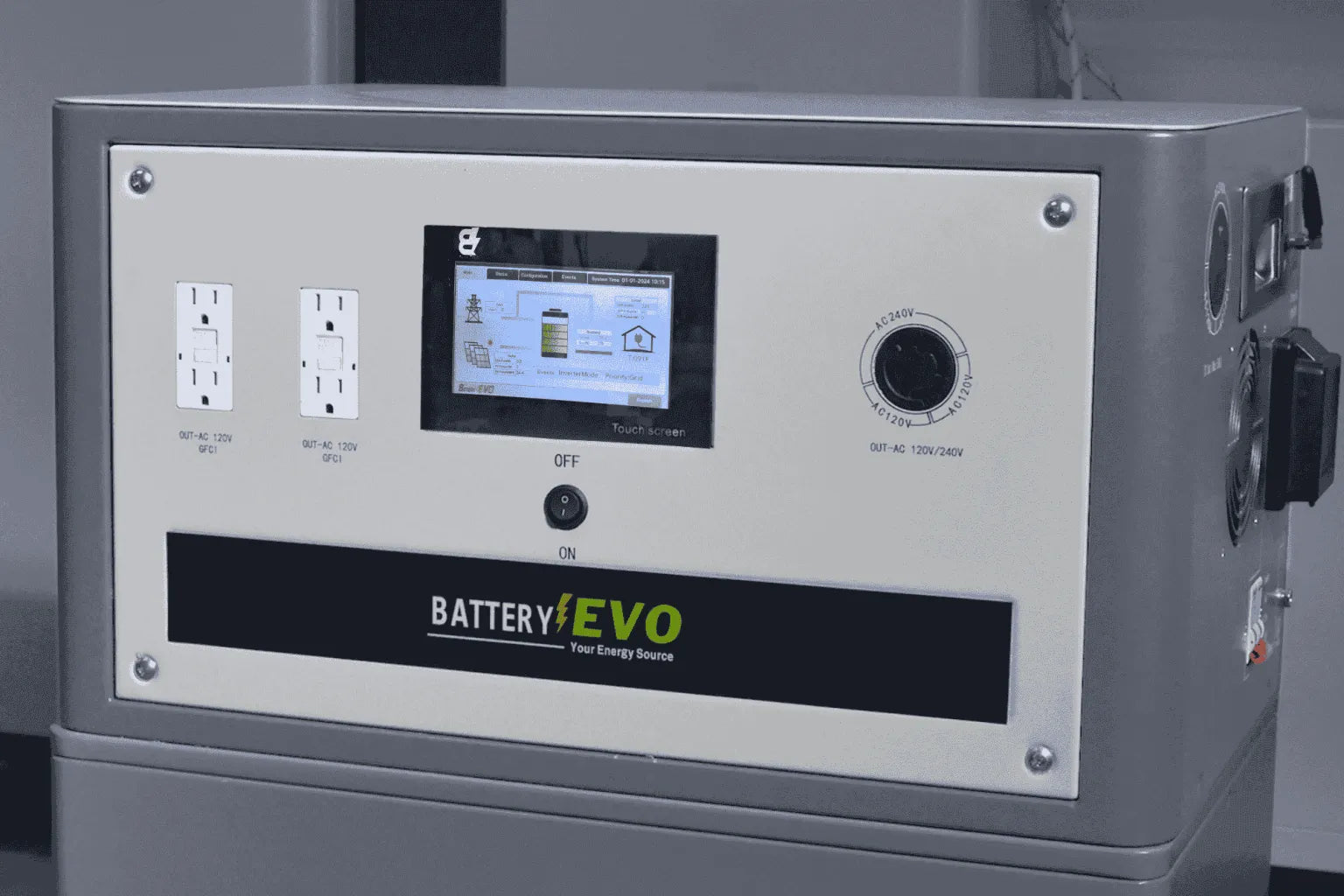

Every Component On One Device
The Walrus main console and side panel includes every port you need to install into your home or use as portable generator.
110V/220V Outlets
Power tools and appliances directly with built-in 110V and 220V outlets.
PV Input DC (90V-230V) 8kW
Easily connect your solar panels DC using the included BE175 connector.

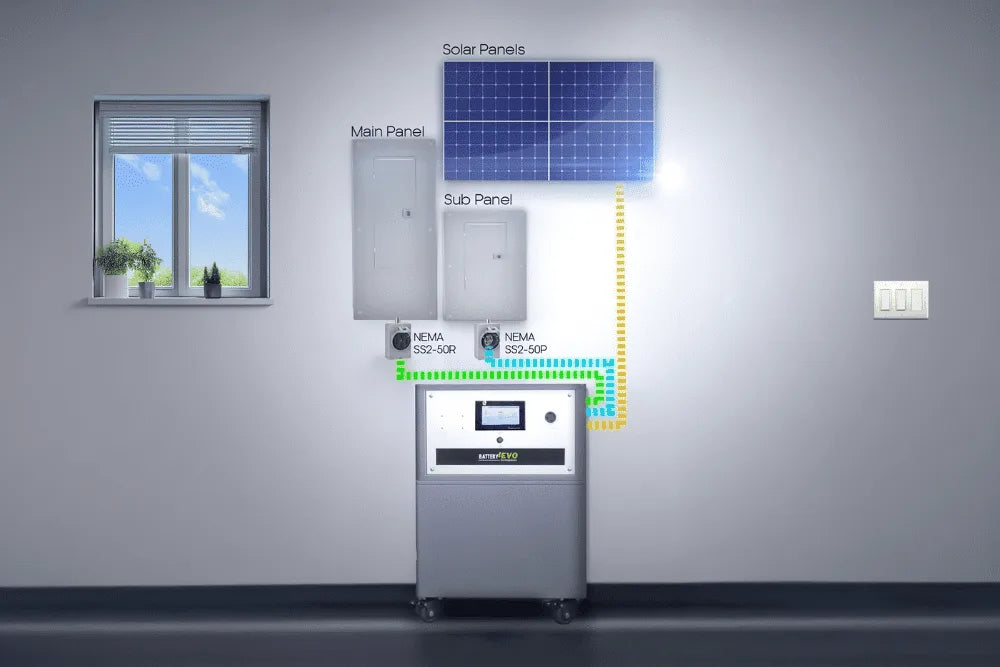

AC Input (Max 50A)
Connect home AC grid power to the Walrus using SS2-50P connector.
AC Output (Max 50A)
Connect the Walrus to your home using NEMA14-50R connector.
DC Input (Max 99.6V)
Expand your battery capacity easily with one connection.
Wi-Fi and Network Ports
Connect to your homes network and monitor the Walrus through our app.
SUITABLE FOR:
- OFF-GRID SYSTEMS
- PORTABLE
- EV CHARGING STATION
INCLUDES:
Walrus G4 15K Inverter – 260Ah 23kWh + 15k Inverter
- 1 X WALRUS G4 15K INV. 23 kWh AC110/220V 96N-S
- 1 X PV to BE175 Cable-S
- 2 X 50 Amp 10 Ft RV Extension Cable-S
Walrus G4 15K Inverter with 4 Solar Accessories Kit – 260Ah 23kWh + 15k Inverter + 2200W Solar
- 1 X WALRUS G4 15K INV. 23 kWh AC110/220V 96N-S
- 1 X PV to BE175 Cable-S
- 1 X 50 Amp 10 Ft RV Extension Cable-S
- 4 X 550W Solar Panel-S
Walrus G4 15K Inverter with 8 Solar Accessories Kit – 260Ah 23kWh + 15k Inverter + 4400W Solar
- 1 X WALRUS G4 15K INV. 23 kWh AC110/220V 96N-S
- 1 X PV to BE175 Cable-S
- 2 X 50 Amp 10 Ft RV Extension Cable-S
- 8 X 550W Solar Panel-S

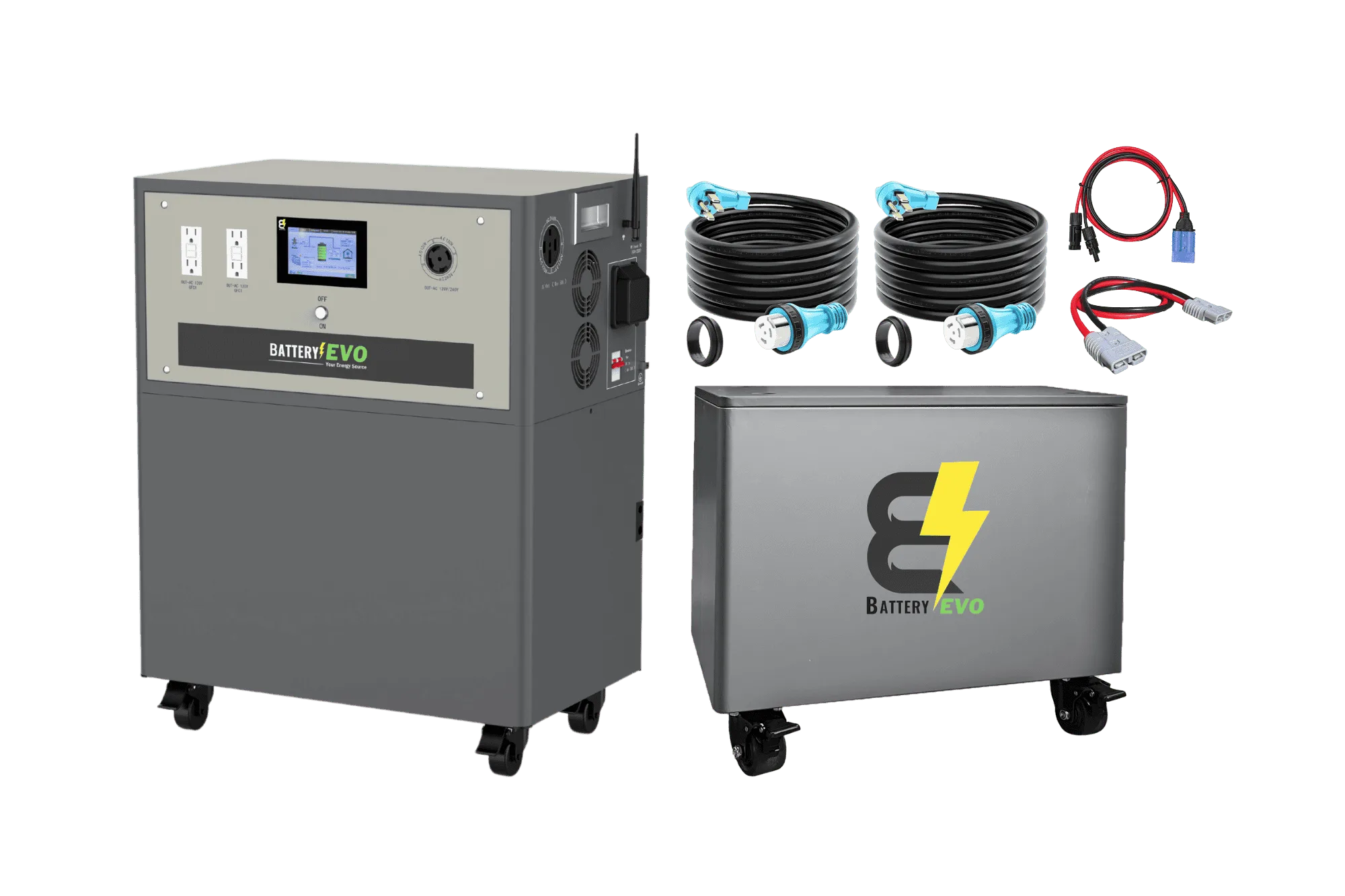

Walrus G4 15K Inverter Extension Kit – 520Ah 46kWh + 15K Inverter
- 1 X WALRUS G4 15K INV. 23 kWh AC110/220V 96N-S
- 1 X PV to BE175 Cable-S
- 2 X 50 Amp 10 Ft RV Extension Cable-S
- 1 X WALRUS G4 EXTENSION PACK-S
- 1 X 4AWG BE175 to BE175 Extension Cable
Walrus G4 15K Inverter Extension Kit with Solar Accessories Kit – 520Ah 46kWh + 15K Inverter + 4400W Solar
- 1 X WALRUS G4 15K INV. 23 kWh AC110/220V 96N-S
- 1 X PV to BE175 Cable-S
- 2 X 50 Amp 10 Ft RV Extension Cable-S
- 1 X WALRUS G4 EXTENSION PACK-S
- 1 X 4AWG BE175 to BE175 Extension Cable
- 8 X 550W Solar Panel-S
SPECIFICATIONS:
| SKU: | EVO-WLRS-1223-96N |
| System Voltage: | AC110/220V |
| Nominal Voltage: | 88V |
| Chemistry: | NMC |
| kWh Capacity: | 23 kWh |
| Ah Capacity: | 260Ah |
| Charging Voltage: | 97.3V – 99.6V |
| Max Charge Voltage: | 99.6V |
| Operating Voltage Range: | 72V – 99.6V |
| Suggested Low Voltage Cutoff: | 72V – 80V |
| Cell Configuration: | 24S2P |
| Max Continuous Discharge Current: | 150A |
| Max Continuous Power: | 15kVA |
| Max Discharge Peak Current: | 300A |
| Max Charge Current: | 150A |
| Max MPPT Charge Power: | 8kW |
| Charge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Discharge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 441lbs (200.2kg) |
| Depth: | 15.4in (391mm) |
| Width: | 24.41in (620mm) |
| Height: | 36.24in (920.5mm) |
| Safety Features: | Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: | Up To (8) Parallel |
| Spec Sheet: | View |
| User Manual: | View |
| Solar Panel Spec Sheet: | View |
