Battery Evo Walrus G3 Extension Pack – 72V 22kWh
$499.00
Payment Methods:
Description

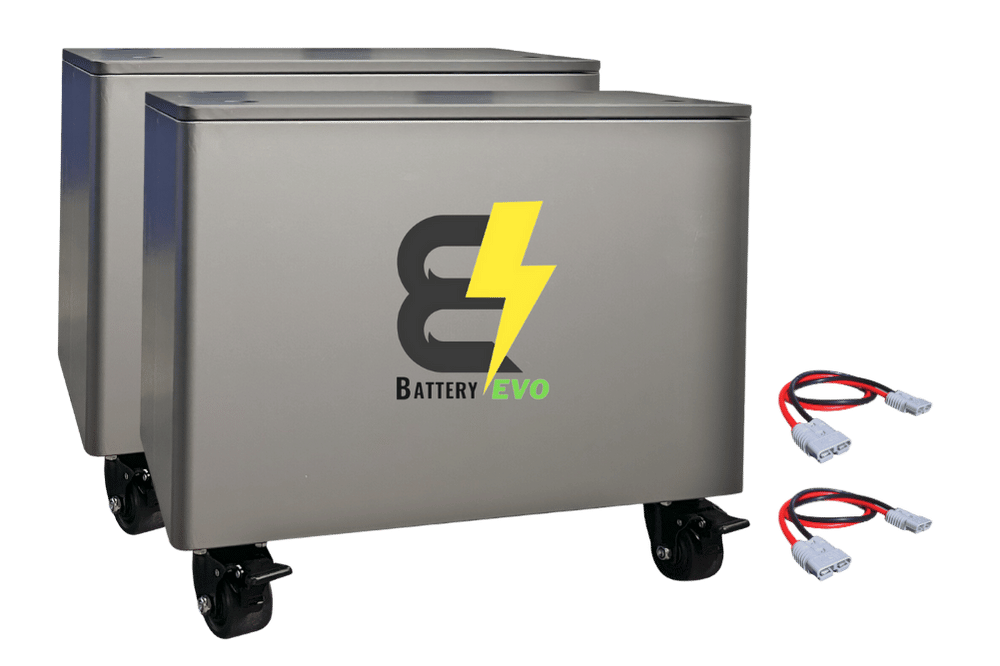

Battery Evo Walrus G3 Extension Pack – 72V 22kWh
OPTIONS:
- Walrus G3 Extension Pack – 330Ah 22kWh
- Walrus G3 2X Extension Pack – 660Ah 44kWh
The WALRUS G3 Extension Pack provides an opportunity to increase storage capacity, serving as a sophisticated and portable power solution suitable for various uses, including solar setups, off-grid configurations, and as an emergency power source. This extension pack, when paired with the WALRUS G3 unit, brings an additional 13 kWh of external battery capacity, promising consistent power across a multitude of environments.
Featuring our state-of-the-art Battery Management System (BMS), the WALRUS G3 Extension Pack is optimized for operation in a wide temperature spectrum, making it especially useful in cold weather. Equipped with high-quality LiFePO4 cells and equipped with durable caster wheels, it provides flexible storage options, ensuring you can easily relocate it as needed.
Redefining the standards for battery management and safety within its class, the pack guarantees a steady power supply and upholds the utmost safety protocols. Its built-in LED Smart Display allows for the real-time tracking of battery conditions and performance. Elevate your energy setup and maximize your power capabilities with the WALRUS G3 Battery Extension Pack today!
SUITABLE FOR:
- OFF-GRID SYSTEMS
- PORTABLE
- EV CHARGING STATION
- HOME BATTERY BACKUP
- CONSTRUCTION SITES
- HOMES WITH SOLAR
- HOMES WITHOUT SOLAR
INCLUDES:
Walrus G3 Extension Pack – 330Ah 22kWh
- 1 X Walrus G3 Extension Pack-S
- 1 X 4AWG BE175 to BE175 Battery Extension Cable-S
Walrus G3 2X Extension Pack – 660Ah 44kWh
- 2 X Walrus G3 Extension Pack-S
- 2 X 4AWG BE175 to BE175 Battery Extension Cable-S
SPECIFICATIONS:
| SKU: | EXT-WLRS-72220N-G1 |
| System Voltage: | AC110/220V |
| Nominal Voltage: | 72V |
| Chemistry: | NMC |
| kWh Capacity: | 22kWh |
| Ah Capacity: | 330Ah |
| Charging Voltage: | 73V – 75V |
| Max Charge Voltage: | 75.6V |
| Operating Voltage Range: | 54V – 74.7V |
| Suggested Low Voltage Cutoff: | 54V – 60V |
| Cell Configuration: | 18S2P |
| Max Continuous Discharge Current: | 250A |
| Max Continuous Power: | 16500W |
| Max Discharge Peak Current: | 300A (5 seconds) |
| Max Charge Current: | 250A |
| Charge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Discharge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 268lbs (121.6kg) |
| Depth: | 15.4in (391mm) |
| Width: | 24.41in (620mm) |
| Height: | 20.94in (532mm) |
| Safety Features: | 63A AC Input Breaker & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: | Up To (8) Battery Packs with Parallel |
| Batterty Spec Sheet: | View |
