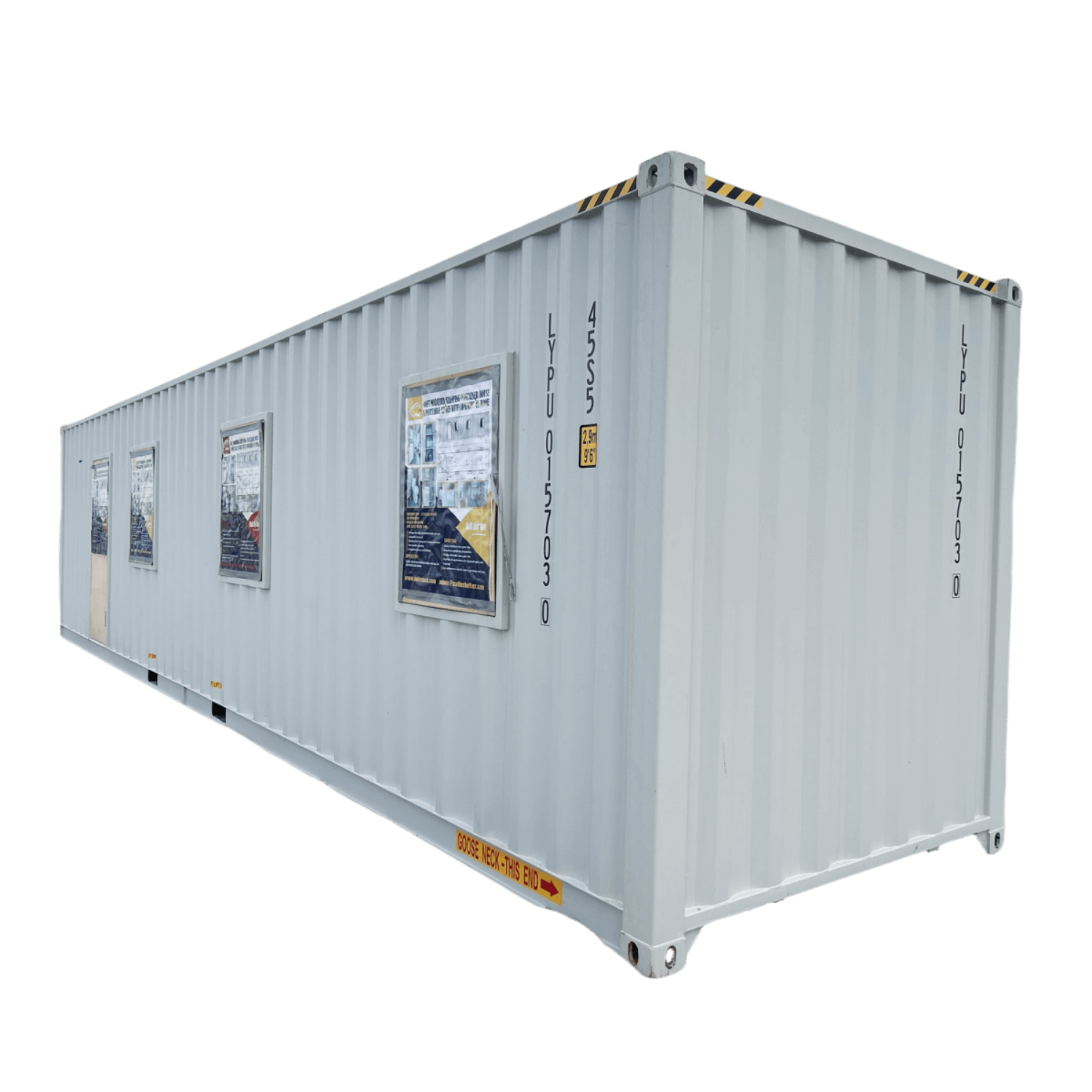

40ft Modified Container House image 1
40ft Modified Container House $499.00
Back to products
18,000 lb. Capacity Portable Loading Dock Ramps Yard Ramp image 1
18,000 lb. Capacity Portable Loading Dock Ramps Yard Ramp $499.00
40'x40'x15' Double Truss Peak Container Canopy Shelter image 1
40x40x15 Double Truss Peak Container Canopy Shelter image 2
40x40x15 Double Truss Peak Container Canopy Shelter image 3
40x40x15 Double Truss Peak Container Canopy Shelter image 4
40x40x15 Double Truss Peak Container Canopy Shelter image 5
Click to enlarge
40'x40'x15' Double Truss Peak Container Canopy Shelter image 1
40x40x15 Double Truss Peak Container Canopy Shelter image 2
40x40x15 Double Truss Peak Container Canopy Shelter image 3
40x40x15 Double Truss Peak Container Canopy Shelter image 4
40x40x15 Double Truss Peak Container Canopy Shelter image 5

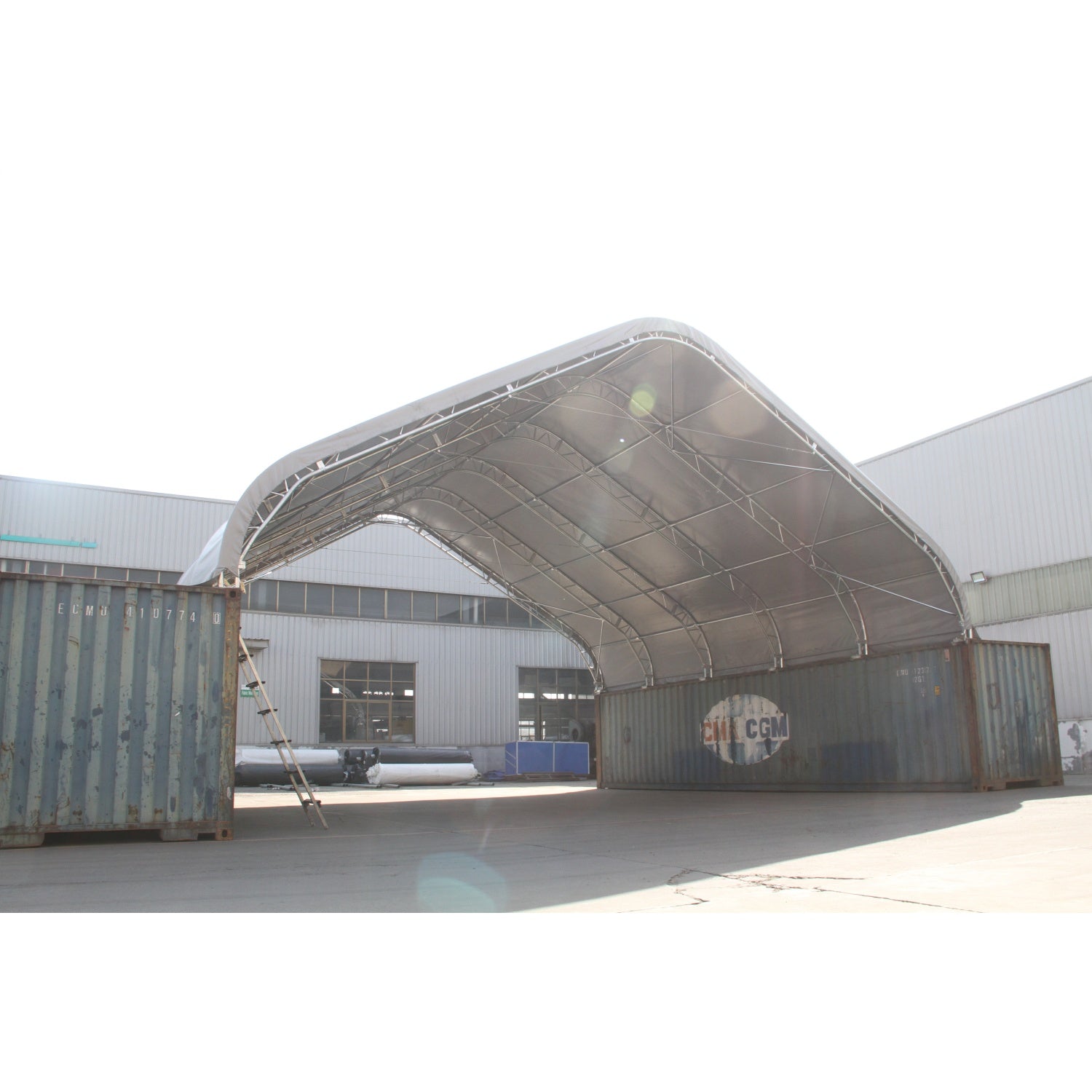

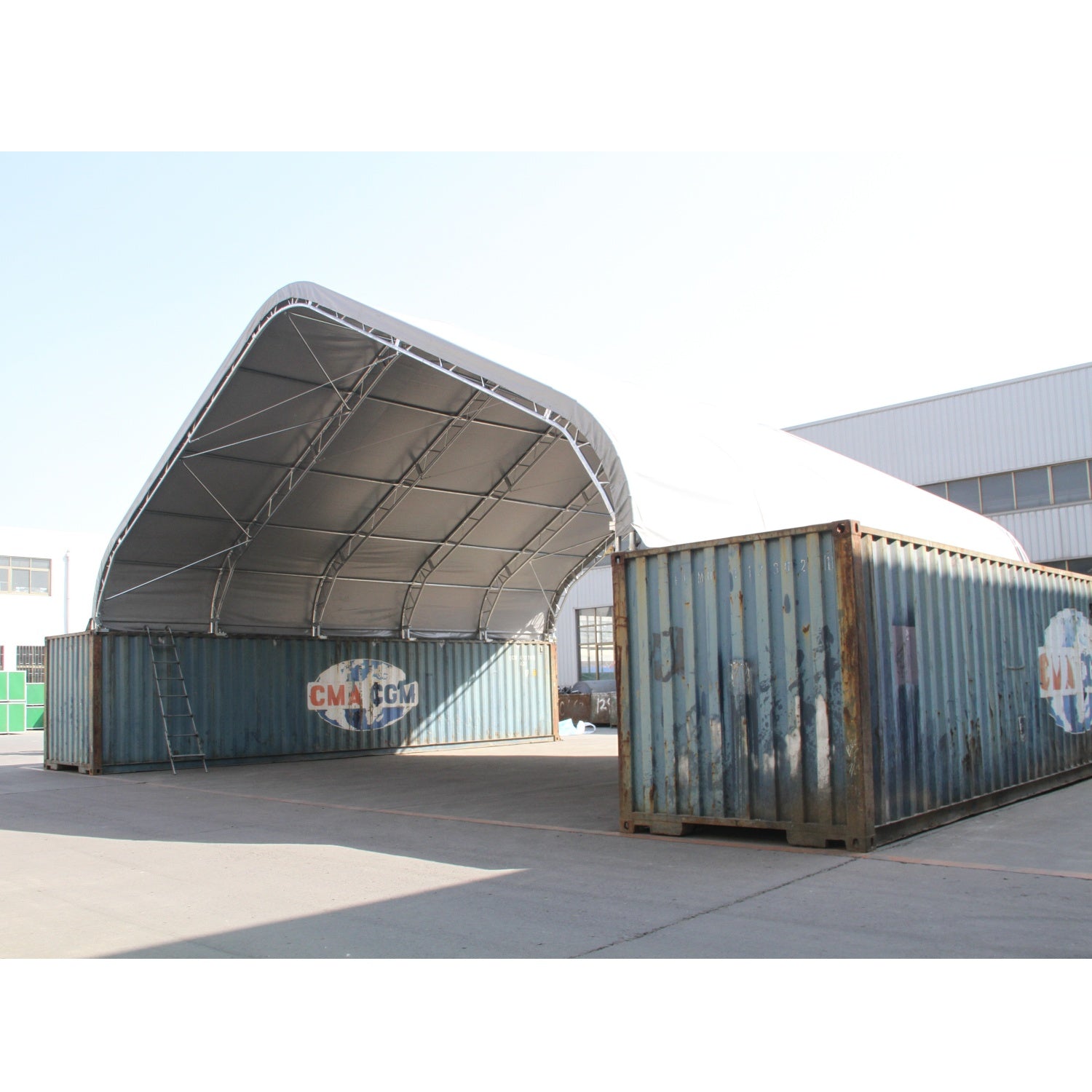

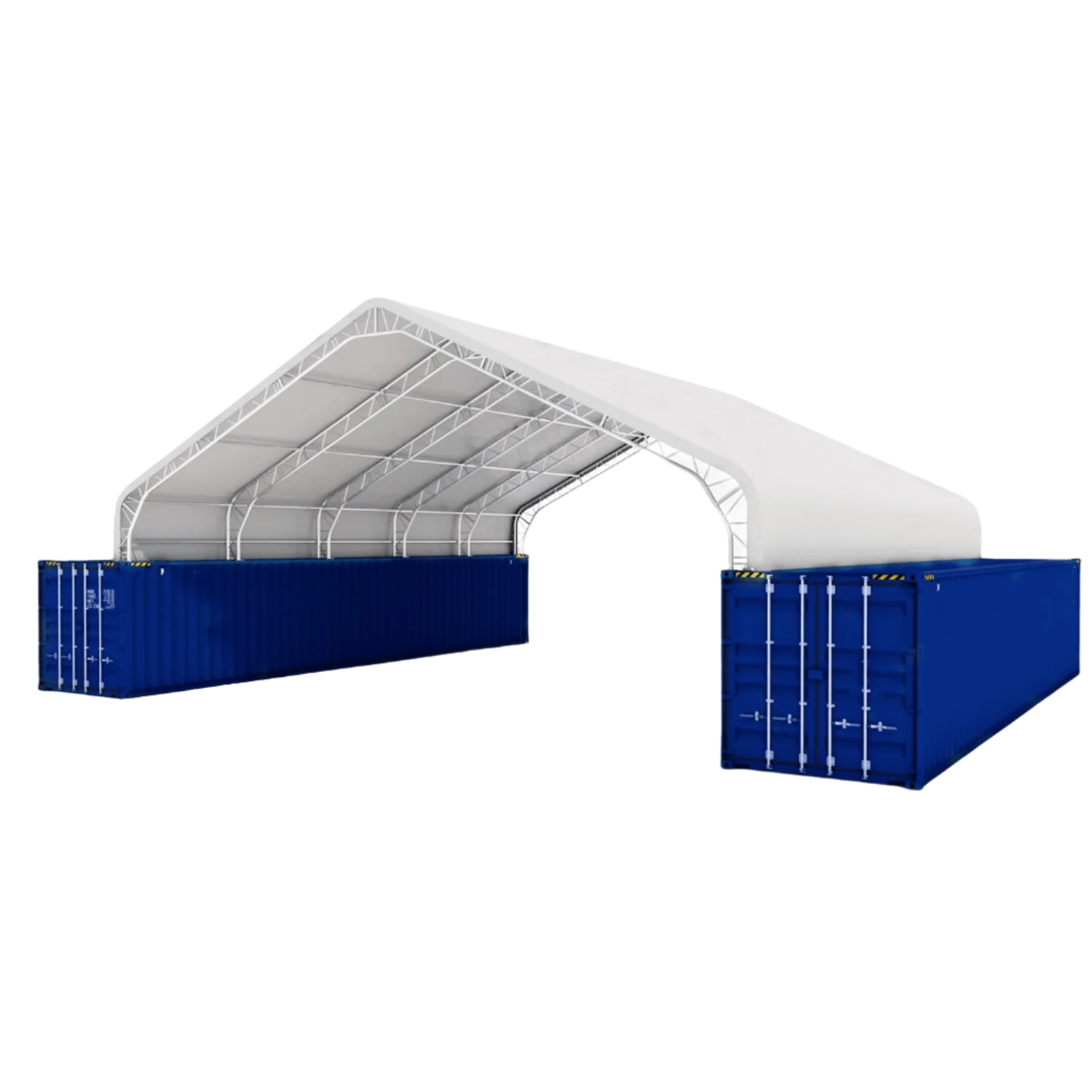

40’x40’x15′ Double Truss Peak Container Canopy Shelter

SKU: ZZIT-23-234

$499.00

193 People watching this product now!

Payment Methods:

Description

Gold Mountain Shipping Container Canopy Shelter Double Truss Peak 40’x40’x15′ combines resilience and style, featuring a peaked roof design with a double truss structure for unparalleled strength. Offering a generous 40’x40’x15′ footprint, this shelter provides ample space for various applications. Crafted with durability in mind, it ensures robust protection against the elements.

Installation Manual

How to Install the Container Shelter?

Specification

Description Specifications
Model C404015 Peak Container Shelter
Dimension (ft) W40xL40xH15
Frame Double Truss Galvanized Tube
Steel Structure High-Grade Hot Dip Galvanized Steel
Fabric(optional)
  • Economical – 11oz/m²(300 gsm) Polyethylene (PE) Tarpaulin Fabric
  • Heavy Duty – 15oz/m²(450 gsm) PVC Tarpaulin Fabric
  • Heavy Duty – 22oz/m²(610 gsm) PVC Tarpaulin Fabric
  • Heavy Duty – 23oz/m²(650 gsm) PVC Tarpaulin Fabric
  • Heavy Duty – 32oz/m²(900 gsm) PVC Tarpaulin Fabric
Fabric Feature Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property
Temperature Resistance -22 – +158 °F
Front/back walls (optional)
Arch Interval 8 ft
Arch Ø (mm) Ø60×1.5
Purlin Ø (mm) Ø60×1.5
Tension System Pipe and Ratchet Tie-Down System
Easy Installation Twist lock and clamp installation
Weld Base plates need to be welded on the Containers.
Average assembly time for DIY with 4 persons
  • Shelter: 2 days
  • Front or back wall: ½ day per wall
Safety The tarpaulin is PFAS-free and EU REACH compliant.
Tarp Lifespan 7-10 years, depending on the type of fabric and environmental conditions.
Frame Lifespan 15+ years
Warranty
  • PE: 2 Years Warranty
  • PVC: 8 Years Warranty

Note

  • The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
  • The assembled canopy’s structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
  • Snow-state (Such as Alaska, Colorado, Vermont, etc)customers are strongly advised to opt for double-truss framing.

Package Size

  • LxWxH (inch): 116x44x55
  • Weight (lb): 3130
  • A forklift or equivalent is required for unloading.
