18,000 lb. Capacity Portable Loading Dock Ramps Yard Ramp
$499.00
190
People watching this product now!
Payment Methods:
Description

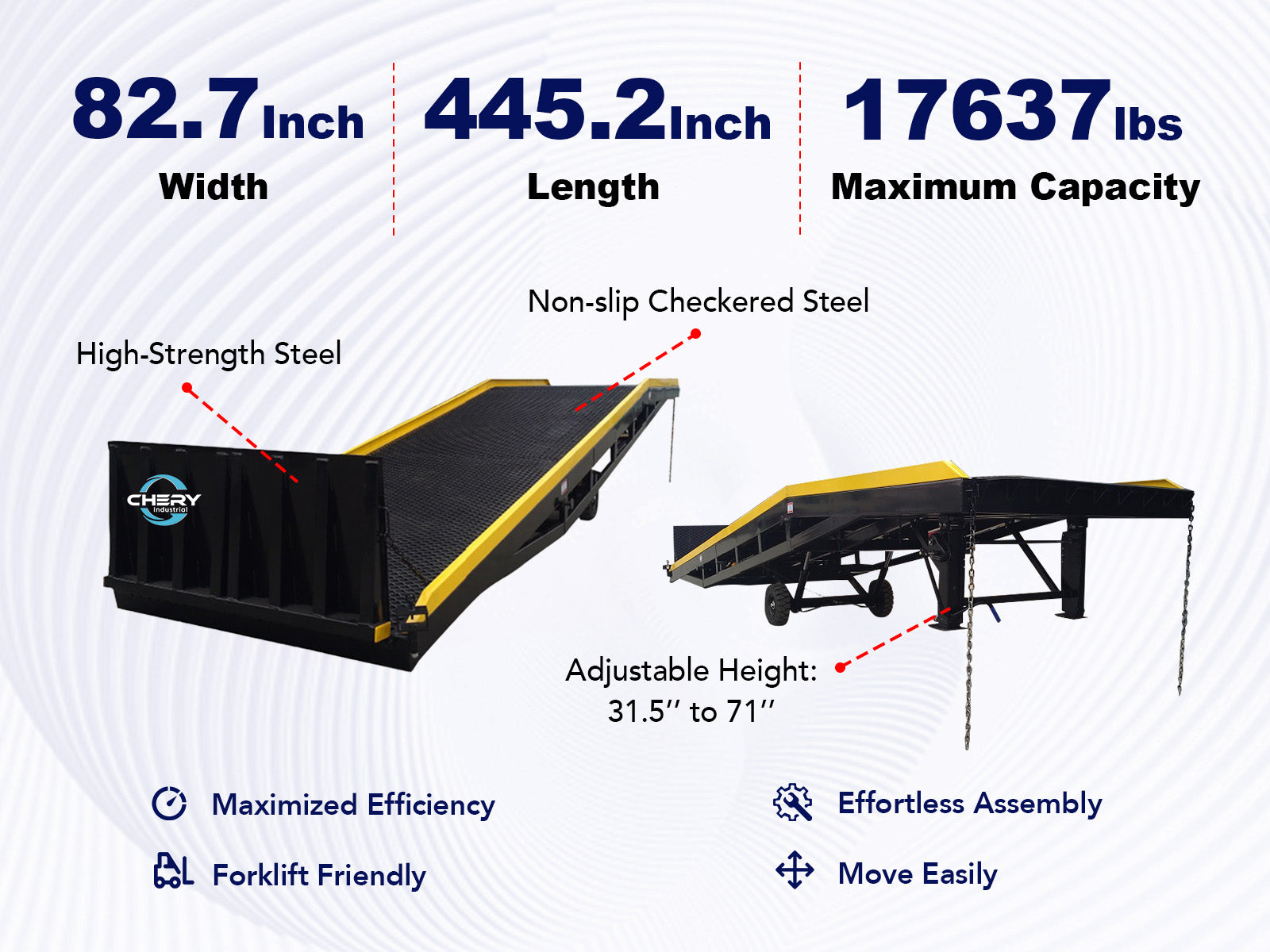

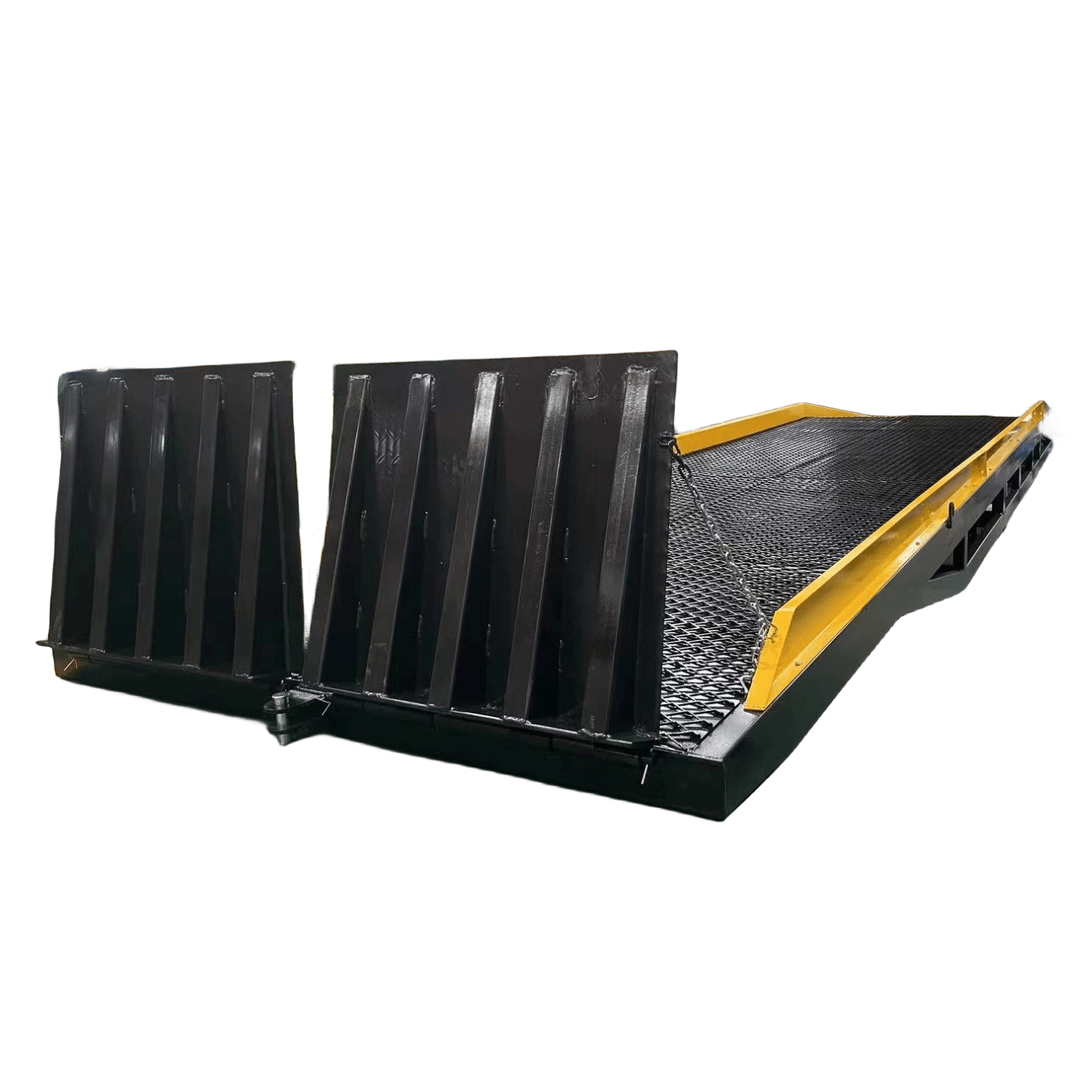

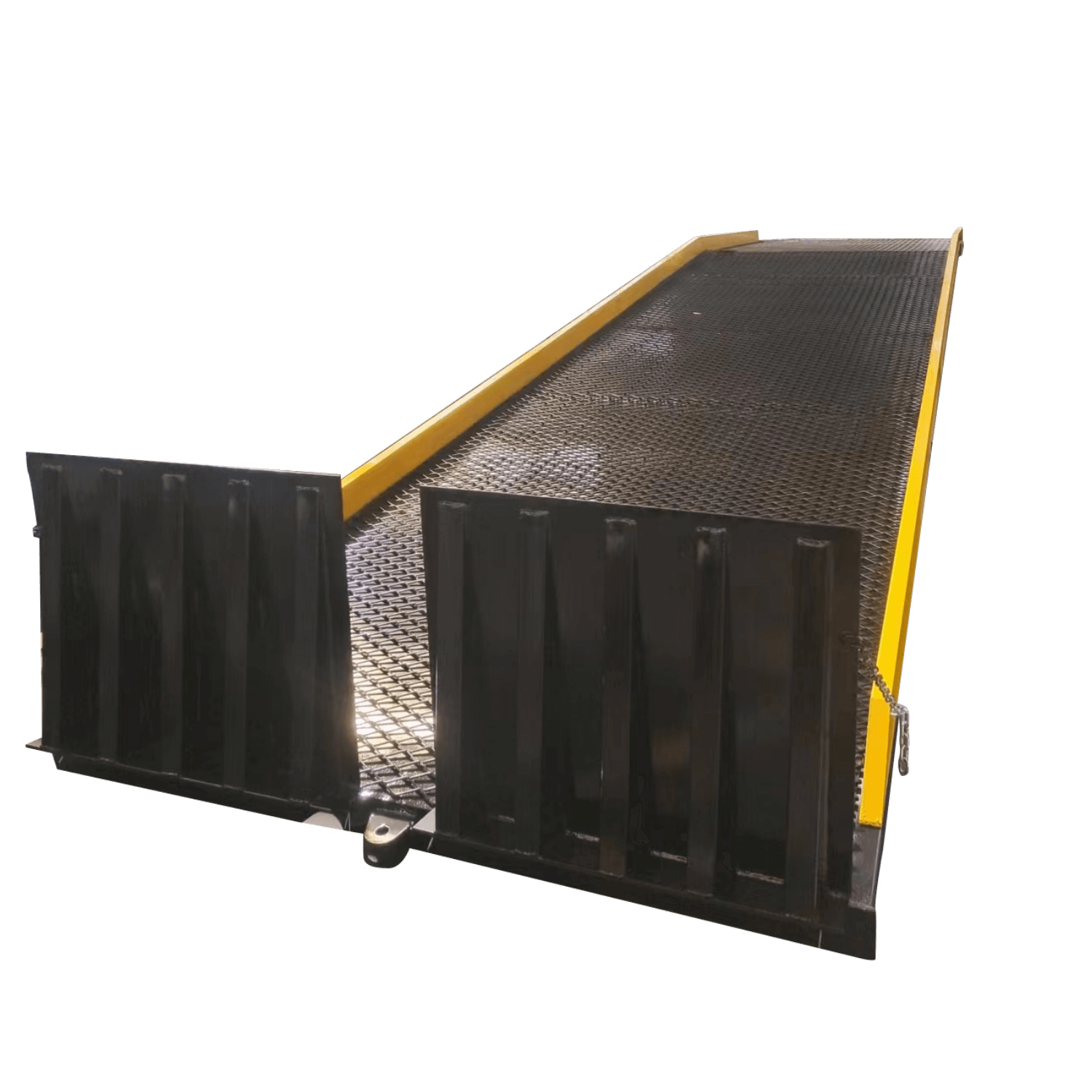

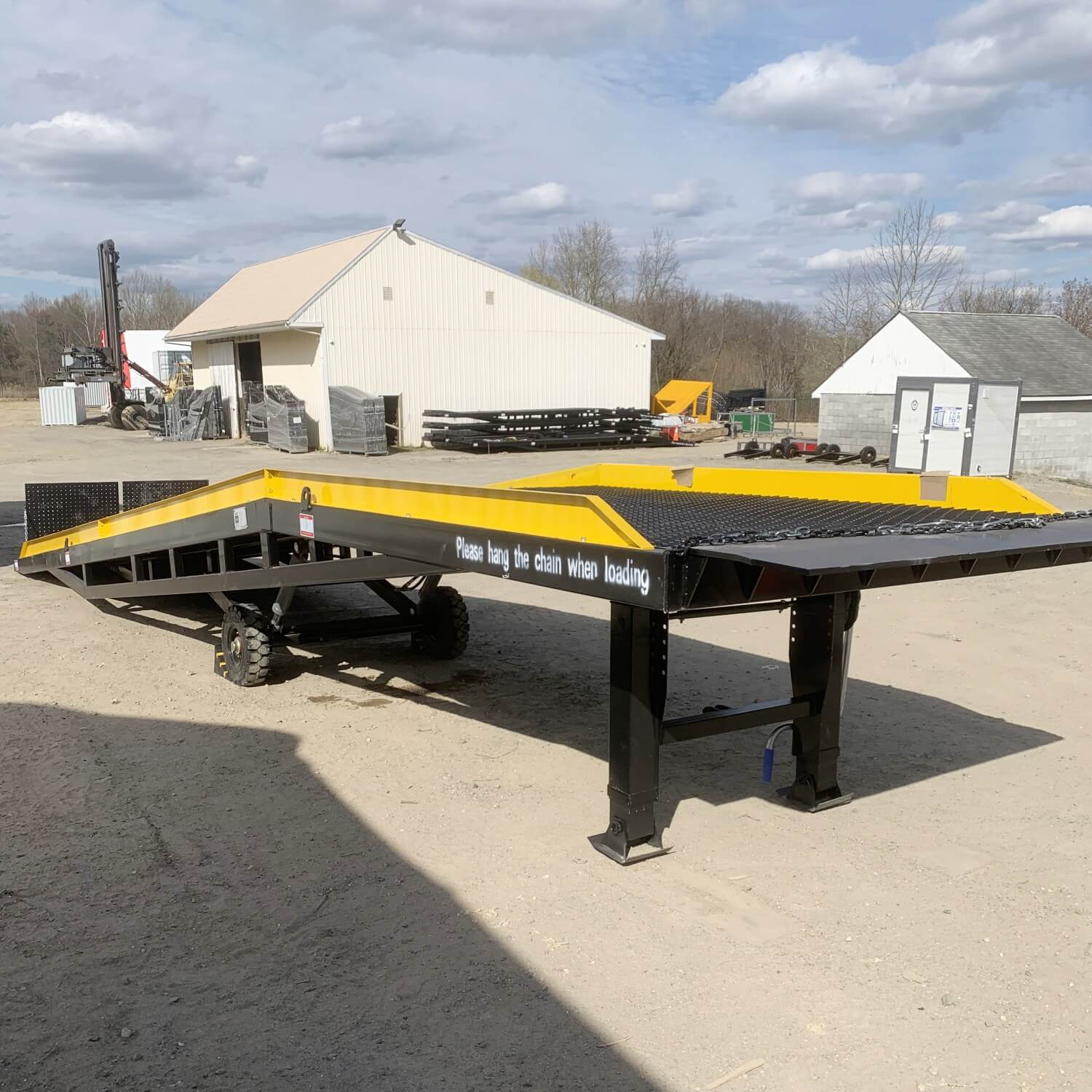

This steel yard ramp is designed for unloading trucks, trailers, or rail cars when dock space is not available. Made of durable steel, this patio ramp has a load capacity of 18,000 pounds and measures 37.1 feet long x 6.9 feet wide. Additional safety features include side rails on both sides to prevent the forklift from driving over the edge, and two safety chains to secure the ramp to the loading surface. These chains can be attached to the ICC bumper of your semi-truck trailer to prevent ramp kick-outs.

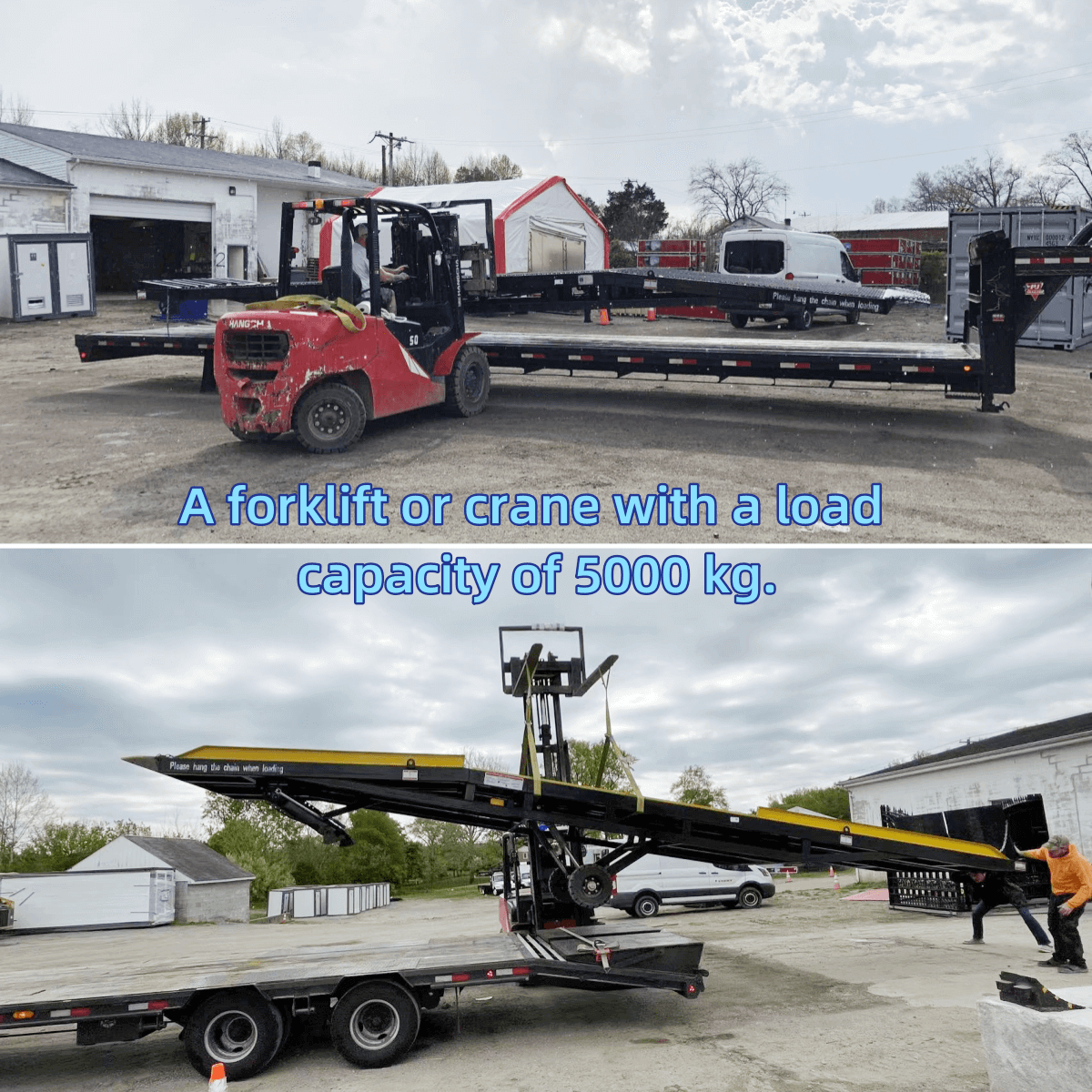

Necessary for unloading: A forklift or crane with a load capacity of 5000 kg.
Specification
| Material | Steel |
| Length | 37.1′ |
| Width | 82.7″ |
| Minimum Height | 43.3″ |
| Maximum Height | 71″ |
| Weight | 5,292 lbs |
| Maximum Capacity | 17,637 lbs |
| Slope Length | 281.5″ |
| Platform Length | 118.1″ |

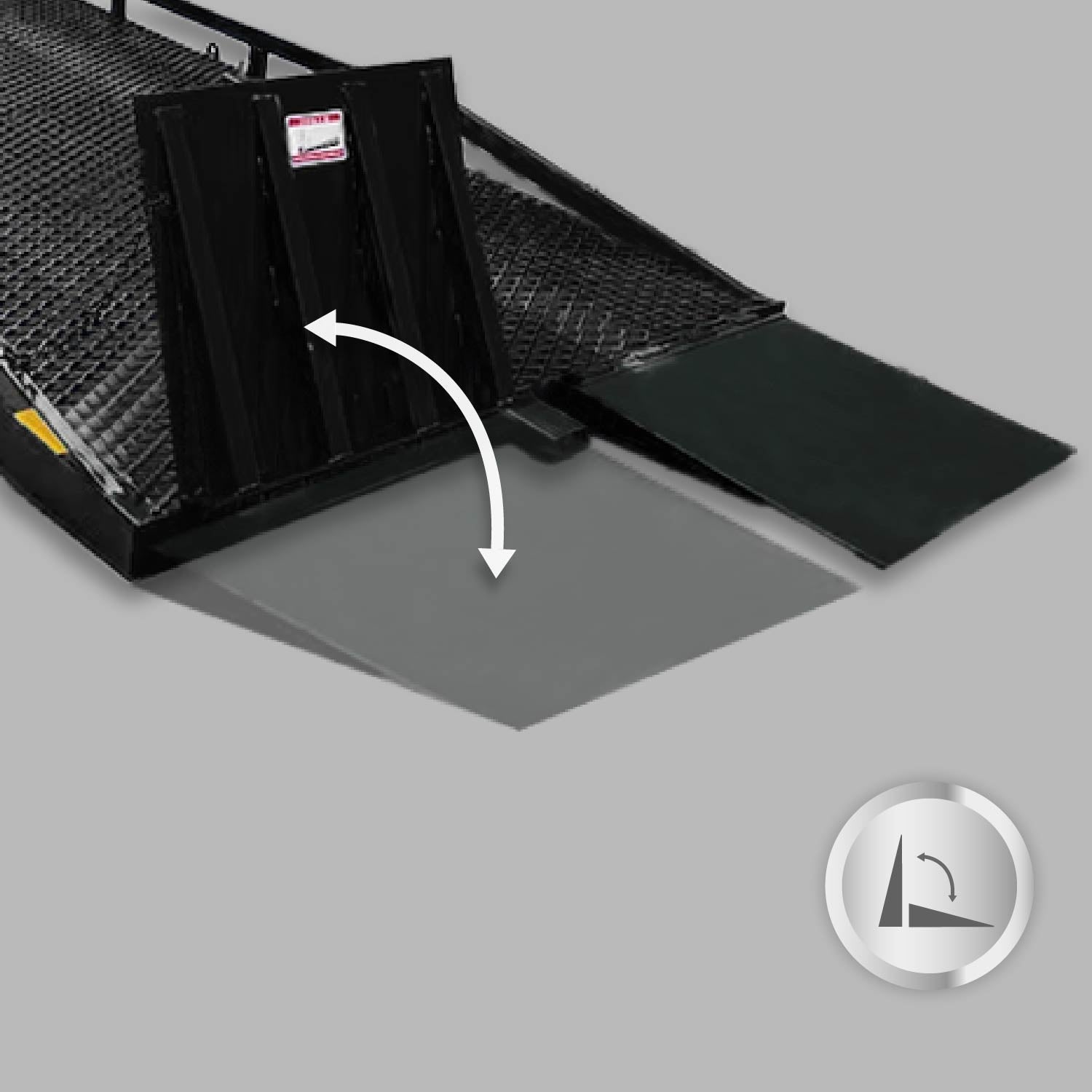

| Tail Plate Length | 29.5″ |
| Tip Plate Length | 15.7″ |
| Steel Plate Thickness | 3 mm |
| Steel Mesh Thickness | 8 mm |
| Lip Thickness | 14 mm |
| Power | AC(380V/220V/110V) |
| Main Beam | 160x80x4mm rectangular pipe, 5 main beams. |
| Vice Beam | 100x50x4mm |

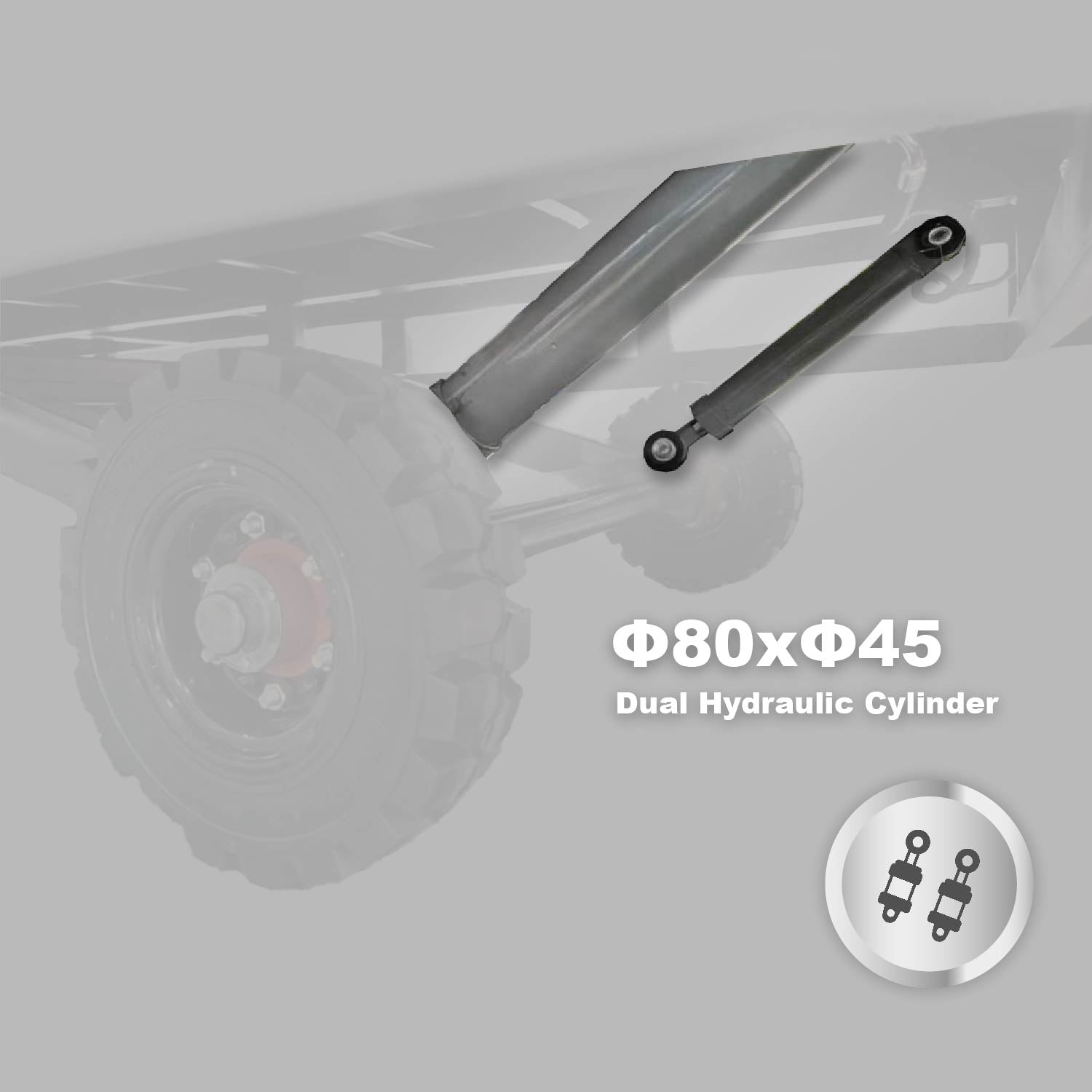

| Lift Type | Dual Cylinder Hydraulic |
| Hydraulic Cylinder | Φ80xΦ45（2 pcs） |
| Hydraulic Oil Pipe | 32Pma |
| Solid Tire Size | 600-9 |
| Guard Rail Height | 5.5″ |
| Safety Chains | 51″ |
Feature
- Height Adjustment: Enjoy seamless operation with height adjustability from 43.3″ to 71″ (110 cm – 180 cm), allowing this ramp to easily accommodate various truck and dock heights, maximizing efficiency.
- Unrivaled Strength: Supporting a massive 17,637 lbs (8,000 kg), this ramp provides the robust support you need for heavy-duty material handling, reducing downtime and improving productivity.

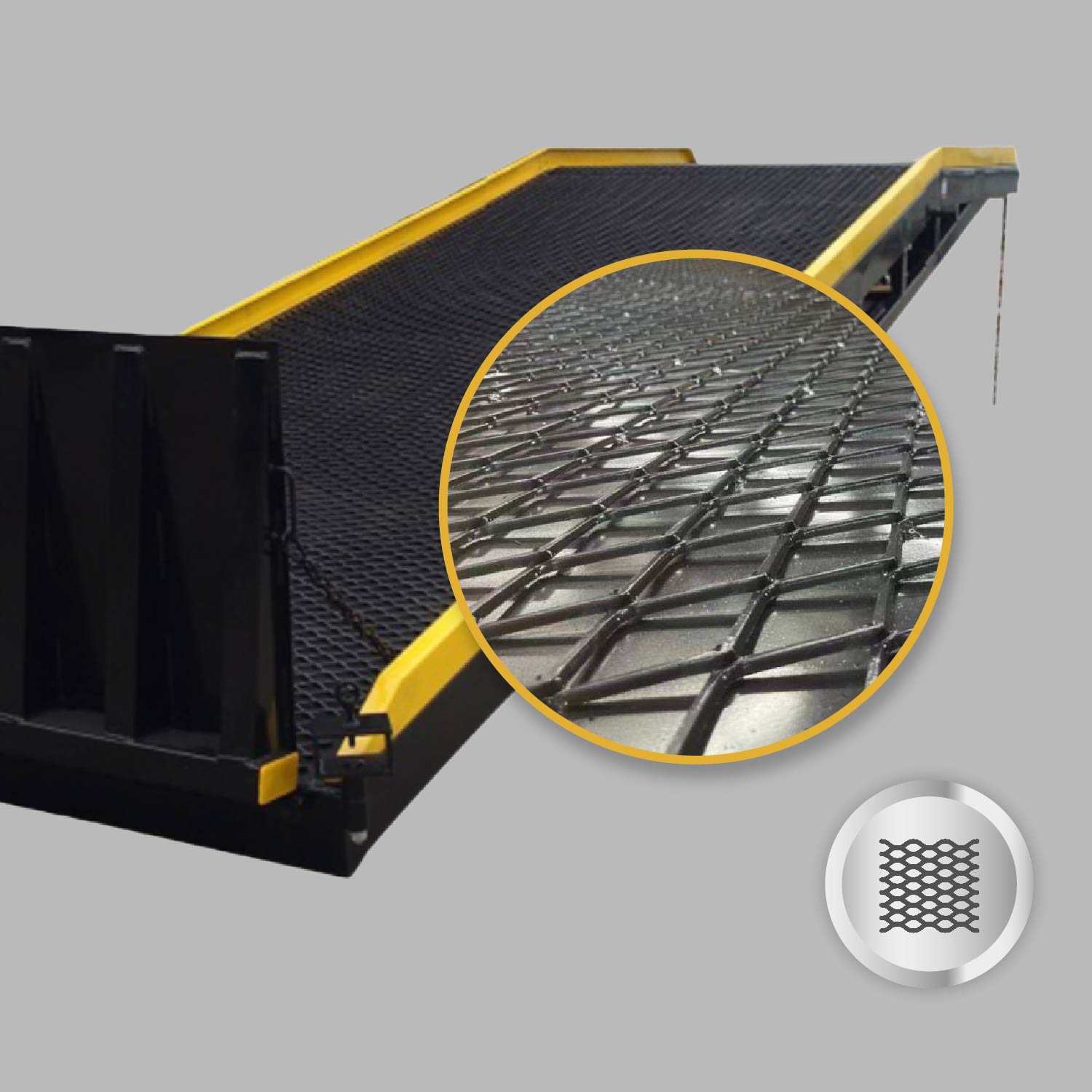

- Secure Grip: The non-slip checkered steel surface ensures confident operation by providing superior traction, significantly reducing the risk of accidents and enhancing safety during loading and unloading.
- Enhanced Mobility: For easy positioning and maneuverability, the ramps are fitted with durable 600-9 solid tires. These tires are maintenance-free and provide stable support, allowing you to easily move the ramp wherever it’s needed within your facility.
Package Size
- LxWxH (inch): 439x83x20
- Weight (lb): 5296(Manual Pump), 5516(Electric Pump)
- A forklift or equivalent is required for unloading.
